MONROE 5514 Part Description
Manufacturer
Product Description

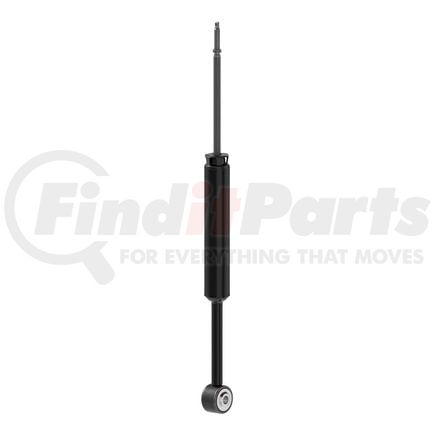

OESpectrum Suspension Shock Absorber
Features & Benefits
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
- BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee
MONROE 5514 Specifications
Product Attributes
| Lower Mount Code | LS43 |
| Upper Mount Code | S15 |
| Dust Shield Included | No |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Body Diameter | 1.75 IN |
| Compressed Length | 17.04 IN |
| Extended Length | 24.35 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 14MM Sleeve ID X 1,9/16" Sleeve OAL |
| Parts Pack(s) | P01505 |
| Travel Length | 7.31 in |
| Upper Mount Type | Stem Mount - 2.5/8" Stem Length X M10 Thread Pitch |
| Compressed Length | 432.8 MM |
| Extended Length | 618.5 MM |
| Travel Length | 185.7 MM |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Body Diameter | 44.4 MM |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS43 |
| Upper Mount Code | S15 |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01170 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598167521 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 5514 Cross References
| Brand | Part Number |
|---|---|
| Chrysler | 4877692AE, 4877693AE, 4877694AE, 4877695AE, 5272758AE, 5272758AF, 5272759AE, 5272759AF, 5272828AE, 5272829AE, 68240967AB, 68253167AA, 68253167AB, 68292954AA |
| Duralast | TS3239902B |
| FCS | 346254 |
| MasterPro Shocks and Struts | CH107 |
| Monroe Shocks & Struts | 210004 |
| NAPA Shocks | 5514, NS5514 |
| OEM | 68253167AA, 68292954AA, 68253167AB, 68240967AB |
| PRT | 932847 |
| Top Quality | 785514 |
MONROE 5514 Fits Vehicles
- Chrysler 200 (2015-2017)
