GasSLX Shocks

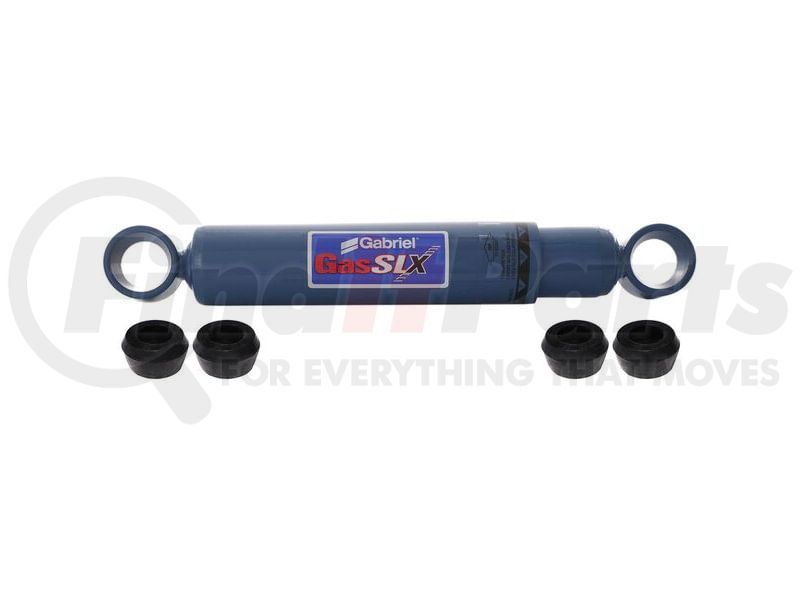

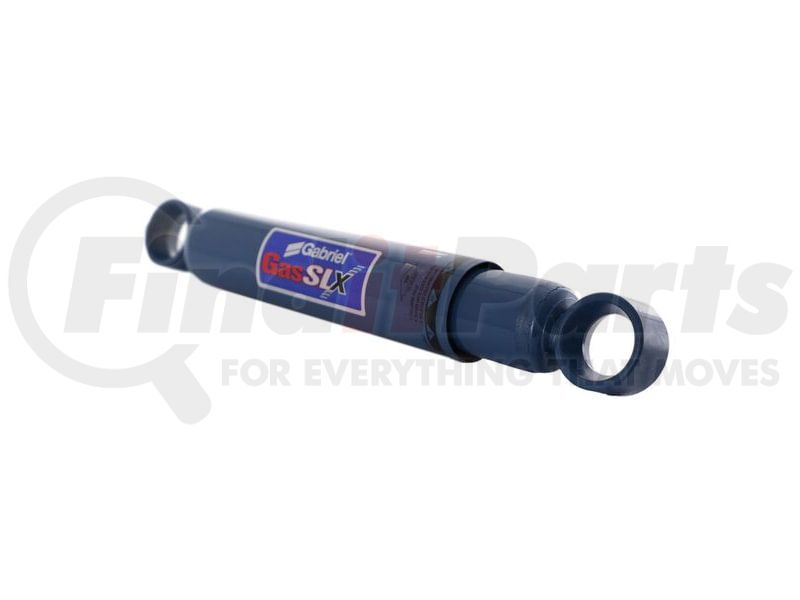

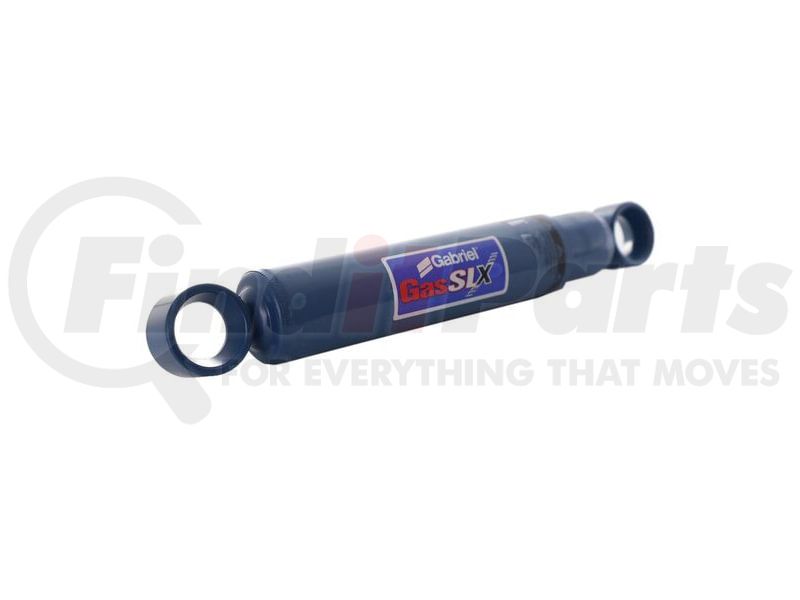

GasSLX Shocks – Adjustable Commercial Truck and Trailer Shocks (89000 series) - The three position GasSLX™ adjustable shocks absorbers by Gabriel® allow you to choose from one of three settings – Firm, Regular and Extra Firm – to match different applications. The GasSLX shock incorporates a gas cell design, creating a physical barrier between gas and fluid, preventing aeration which can cause fade, or reduction in damping force. This gas cell technology is a full-life feature and is better suited for longer-life commercial vehicle applications. And like all Gabriel shocks and struts, GasSLX shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Advanced gas cell technology improves gas retention and provides more consistent high temperature operation. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear.
| Core Color | Y |
| HD Mounting Code Guide.pdf | https://gabriel.com/sites/default/files/2025_HD_Mounting_Code_Guide.pdf |
| Features/Benefits 5 | Chromed piston rod to inhibit corrosion, ensure proper seal lubrication and provide a more consistent wear surface |
| Adjustable Damping | YES |
| Accessory Kit # | 401754 (4 ) |
| Lower Mount Code | EB3 |
| Bore | 1-5/8" |
| Package Contents | 1 Shock & Accessory Kit |
| Compression (lb) | 182 |
| Collapsed Length (in) | 16.57 |
| Rebound (lb) | 1185‡ |
| Dust Tube Material | Steel |
| Dust Tube | YES |
| Recoil Cutoff | NO |
| External Diameter Illustration | G |
| Extended Length (in) | 26.34 |
| Upper Mount Code | EB3 |
| Features/Benefits 2 | Three settings for adjustability: OE ride (firm), increased handling & control (extra firm), or maximum driver comfort (regular) |
| Features/Benefits 1 | Top of the line, adjustable, heavy-duty gas shock for class 7 – 8 vehicles, school buses and transit buses |
| Stroke (in) | 9.77 |
| Features/Benefits 4 | Gas Cell design is superior to gas-charged shocks; gas cell double seals gas from fluid for optimum performance |
| Features/Benefits 3 | Specially formulated high temp. fluid & multi-lip Viton rod seal reduces friction & wear, even in extreme operating conditions |
| Weight (lbs) | 9.2 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| MSDS Sheet Number | ARP002 / RC001 |
| Country of Origin (Primary) | MX |
| UPC | 00043645924843 |
| VMRS Code | 016003016 |
| UNSPSC | 25172011 |
| Brand | Part Number |
|---|---|
| M89410, GBL89410 | |
| BULL DOG | HD1215-0107 |
| BULLDOG HD SHOCKS | HD1215-0107 |
| Bulldog | HD1215-0107 |
| GABRIEL | 85001 |
| HALDEX | SA65102 |
| MERITOR | M89410 |
| MONROE | 65102, 65118 |
| N/A | 85001, 90-2209-SP2, 88-1499, 675122, 665670, K374-26PLUS-2, 665930, K37426, K37427, K374-26PLUS, K374-26-2, 665453, K37416, K37426PLUS2, K374-26, K374-16, K374-27-2, K37411, K37426PLUS, K374-11, B71-1002, K374-27, B711002, K374262, K374272, ASH-39, CAX-707, AMS650102, F4HT18080BA, F4HT-18080-BA, F5HZ18125B, F5HZ-18125-B, AMS660192, M85001, E85001, 58116-MB, 680243, HS 85001, 70312, ABP N32 G900005, ABP N32 O900005, 14QK2113P3, 14QK2133M, 25621955, 14QK-2113, 14QK-2133M, 25622466, 14QK2113, 14QK2113P5, 14QK2133M2, 25632145, 14QK-2113P3, 14QK-2113P5, 14QK-2133M2, 650102, F347263, F5HZ-18125-BA, F5HZ18125BA, 341614, 66423, 65102, 65118, 170130, 410032, 311634, 410035, 1714201, 17142-01, SA5001, RC SA5001, 3919933, 83176212, 3915947, 441 - 85001, 8160101, 9160096, 9180131, 8180050, 9160097, HD1215-0036, 728601, A89410, 090-2209-SP2, 58038, 89410, 78016, 69748, 08948207Y |
| PRT | 925094 |
| TRP | 89410GSK |
| Volvo | 3945809 |
| WORLD AMERICAN | WA01-89410 |
