(888) 312-8812 Login SignupGABRIEL 89424 GasSLX Shocks
Tap to view 6 more
MSRP: $111.30
$7599
Save $35.31
Limited availability at this price!
In Stock
Get it by Friday, Jul 3

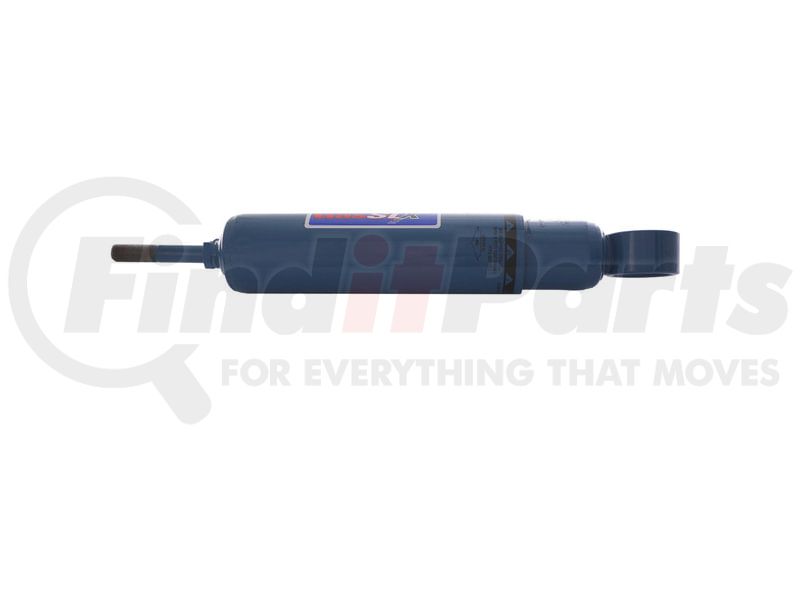

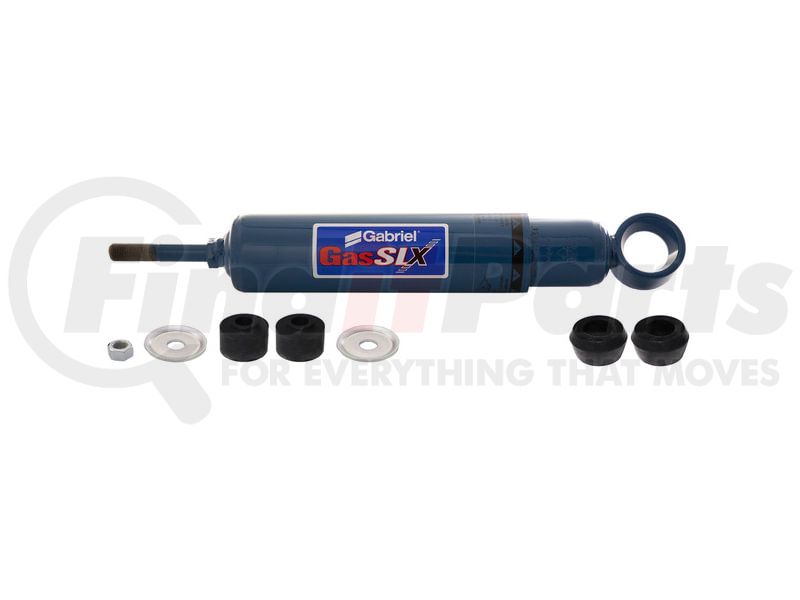

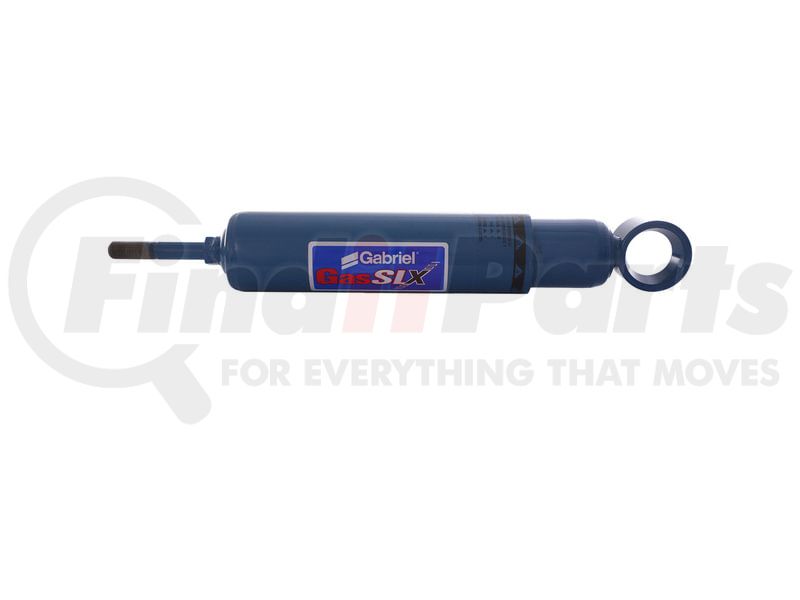

GABRIEL 89424 Part Description
Manufacturer
Product Description
GasSLX Shocks
Features & Benefits
- Top of the line, adjustable, heavy-duty gas shock for class 7 – 8 vehicles, school buses and transit buses
- Three settings for adjustability: OE ride (firm), increased handling & control (extra firm), or maximum driver comfort (regular)
- Specially formulated high temp. fluid & multi-lip Viton rod seal reduces friction & wear, even in extreme operating conditions
- Gas Cell design is superior to gas-charged shocks; gas cell double seals gas from fluid for optimum performance
- Chromed piston rod to inhibit corrosion, ensure proper seal lubrication and provide a more consistent wear surface
GasSLX Shocks – Adjustable Commercial Truck and Trailer Shocks (89000 series) - The three position GasSLX™ adjustable shocks absorbers by Gabriel® allow you to choose from one of three settings – Firm, Regular and Extra Firm – to match different applications. The GasSLX shock incorporates a gas cell design, creating a physical barrier between gas and fluid, preventing aeration which can cause fade, or reduction in damping force. This gas cell technology is a full-life feature and is better suited for longer-life commercial vehicle applications. And like all Gabriel shocks and struts, GasSLX shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Advanced gas cell technology improves gas retention and provides more consistent high temperature operation. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear.
GABRIEL 89424 Specifications
Product Attributes
| Features/Benefits 2 | Three settings for adjustability: OE ride (firm), increased handling & control (extra firm), or maximum driver comfort (regular) |
| Recoil Cutoff | YES |
| Collapsed Length (in) | 15.14 |
| Features/Benefits 3 | Specially formulated high temp. fluid & multi-lip Viton rod seal reduces friction & wear, even in extreme operating conditions |
| Stroke (in) | 8.59 |
| Rebound (lb) | 794‡ |
| Features/Benefits 1 | Top of the line, adjustable, heavy-duty gas shock for class 7 – 8 vehicles, school buses and transit buses |
| Bore | 1-5/8" |
| Package Contents | 1 Shock & Accessory Kit |
| External Diameter Illustration | G |
| Adjustable Damping | YES |
| Core Color | Y |
| Dust Tube Material | Steel |
| HD Mounting Code Guide.pdf | https://gabriel.com/sites/default/files/2025_HD_Mounting_Code_Guide.pdf |
| Accessory Kit # | 141247 (1) |
| Extended Length (in) | 23.73 |
| Lower Mount Code | EB3 |
| Weight (lbs) | 9 |
| Features/Benefits 5 | Chromed piston rod to inhibit corrosion, ensure proper seal lubrication and provide a more consistent wear surface |
| Dust Tube | YES |
| Upper Mount Code | S21 |
| Features/Benefits 4 | Gas Cell design is superior to gas-charged shocks; gas cell double seals gas from fluid for optimum performance |
| Compression (lb) | 253 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| MSDS Sheet Number | ARP002 / RC001 |
| Country of Origin (Primary) | MX |
| UPC | 00043645924317 |
| VMRS Code | 016003016 |
| UNSPSC | 25172011 |
GABRIEL 89424 Cross References
| Brand | Part Number |
|---|---|
| M89424, GBL89424 | |
| BULL DOG | HD1215-0082 |
| BULLDOG HD SHOCKS | HD1215-0082 |
| Bulldog | HD1215-0082 |
| GABRIEL | 85311 |
| HALDEX | SA65402 |
| MERITOR | M89424 |
| MONROE | 65402 |
| N/A | 85311, 90-1974, 680586, 03-07421PLUS, 680241, 0307421PLUS, CAHL-417, 97999902633, 97-9999-02633, 453527C91, 56101 Z1030, AMS650402, 453528C91, 56101 Z2000, AMS650444, AMS700404, M85311, E85311, 78031-MB, 680385, ABP N32 O900031, ABP N32 G900031, HS 85311, 650402, 650402MT, F346599, 1456033, 341621, 65402, 65444, 66429, 74417, 315550, 312724, 316310, 317962, SA5311, 3199948, 3915948, 3919948, 83176231, 3919988, 3199988, 441 - 853114417, 441 - 853115402, 441 - 853115444, HD1215-0033, HD1116-0033, 0307421, 03-07281, 0307421SPL, 0304629, 03-07424PLUS, 03-07421PLUS-2, 03-07421SPL, 0307421PLUS2, C716002, 03-07421, C71-6002, 0307424PLUS, 0307281, 03-07424, 03-04629, 0307424, 680459, 1085311, 728615, A89424, 78039, PROSH85311, 89424, 08946707Y |
| POWER10 PARTS | SSA-89424 |
| PRT | 925155 |
| TRP | 89424GSK |
| Volvo | 3945814 |
GABRIEL 89424 Fits Vehicles
- Peterbilt 520 (2017-2023)
- Peterbilt 587 (2011-2018)
- Peterbilt 579 (2013-2024)
- Peterbilt 389 (2008-2024)
- Peterbilt 388 (2008-2015)
- Peterbilt 386 (2006-2016)
- Peterbilt 367 (2008-2024)
- Peterbilt 372 (1989-1993)
- Peterbilt 377 (1987-2001)
- Peterbilt 362 (1981-2006)
- Peterbilt 359 (1981-1987)
- Peterbilt 567 (2014-2024)
- Peterbilt 382 (2011-2017)
- Peterbilt 384 (2008-2016)
- Peterbilt 365 (2008-2023)
- Peterbilt 385 (1995-2007)
- Peterbilt 376 (1988-1992, 1994-1996, 1999)
- Peterbilt 375 (1987-1996)
- Peterbilt 340 (2007-2010)
- Peterbilt 320 (1987-2018)
- Peterbilt 348 (2010-2023)
- Peterbilt 337 (2010-2023)
- Peterbilt 379 (1986-2007)
- Peterbilt 378 (1988-2007)
- Peterbilt 357 (1987-2008)
- Peterbilt 387 (2000-2011)
- Peterbilt 335 (2005-2010)
- Peterbilt 330 (1995-2005, 2007-2021)
GABRIEL 89424 Customer Reviews
No reviews yet
Be the first to review this product!
GABRIEL 89424 Manufacturer Information
Gabriel® delivers the performance and reliability that's trusted by truck and trailer O.E. manufacturers. Gabriel's industry history started in 1907 with the invention of the original automotive shock absorber. It was soon followed by the launching of the world's first hydraulic shock absorber, then by the first adjustable shock absorber as well as the first air adjustable shock absorber. Up to this day, Gabriel is still the same pioneering and independent American company that builds the high-performance shocks and struts that are designed to fit over 96% of North American vehicles. Gabriel remains one of the country's most trusted O.E.M. and aftermarket suppliers for light- medium- and heavy-duty trucks and vehicles.
