RAYBESTOS 681939 Part Description
Manufacturer
Product Description

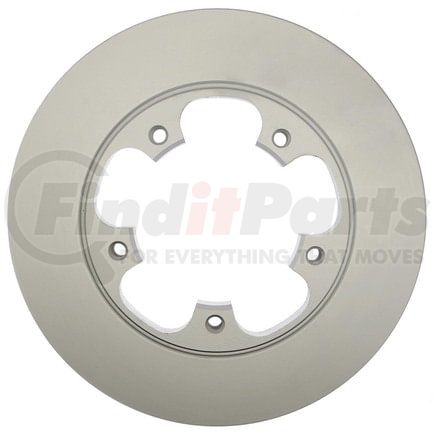

Raybestos Specialty - Truck Coated Brake Rotor
Application Summary
2020-2015 Ford Transit-250 Rear, 2020-2015 Ford Transit-350 Rear, 2020-2015 Ford Transit-150 Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 681939 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Bolt Thread Pitch | 0.049 IN |
| Bolt Thread Pitch | 1.25 MM |
| Center Hole Diameter | 4.8 IN |
| Center Hole Diameter | 121.9 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.59 IN |
| Discard Thickness | 15 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.874 IN |
| Inside Diameter | 200 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.906 IN |
| Mounting Bolt Hole Circle Diameter | 150 MM |
| Mounting Bolt Hole Diameter | 0.472 IN |
| Mounting Bolt Hole Diameter | 12 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.71 IN |
| Nominal Thickness | 18.05 MM |
| Outside Diameter | 12.126 IN |
| Outside Diameter | 308 MM |
| Overall Height | 1.008 IN |
| Overall Height | 25.6 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213190175 |
RAYBESTOS 681939 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | G15632SD, YH527279, YH527279C |
| AUTOXTRA | AX901368 |
| AUTOZONE | 75035DG |
| Advance Auto Parts | YH527279P |
| AutoZone | 75034, 75034DG, 75034DL, 75042DG, 75042DL, 75034SD |
| Autoxtra | AX901368P |
| BRAKEBEST | 681939, 681939R |
| BrakeBest | 670126RGS |
| Brembo | 08.N276.10 |
| CENTRIC | 120.65145, 121.65145, 320.65145, 320.65145F |
| Centric Parts | 120.65145, 121.65145, 320.65145, 320.65145F |
| DURA CORP | BR901368 |
| DuraGo | BR901368, BR901368-02 |
| Dynamic Friction Company | 600-54228 |
| FORD | CK4Z2C026, CK4Z2C026C |
| Ford | KU2Z2V026E, CK4Z2C026E |
| MAGMA PRODUCTS | PSR205261 |
| Motorcraft | BRRC8 |
| NEOTEK | 1071146GF |
| NEWTEK AUTOMOTIVE | R1368 |
| Newtek Automotive USA | R1368 |
| POWERSTOP | AR85175EVC |
| PROMAX | 14-640003 |
| Qualis | 42310 |
| TopNotch | TN681939GEO |
| WAGNER | BD180665E |
| WAGNER BRAKE | BD180665 |
| WORLDPAC | 1407-527279, 1427-712959 |
| Wagner Brake | BD180665E |
| Winhere | 6670126 |
RAYBESTOS 681939 Fits Vehicles
- Ford Transit-350 HD (2017-2025)
- Ford Transit-350 (2015-2025)
- Ford Transit-150 (2015-2025)
- Ford Transit-250 (2015-2025)
