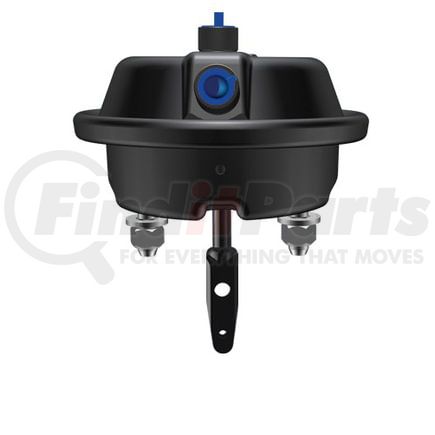

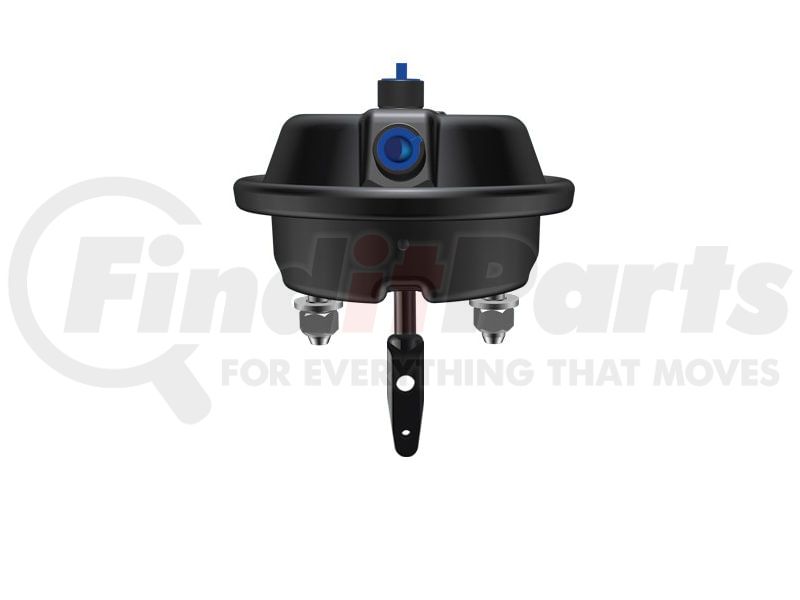

(888) 312-8812 Login SignupMGM BRAKES 1631903 Air Brake Chamber - Inc. Welded NPC, 2.25" Welded Yoke, Neoprene Diaghragm
$16899
21 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
MGM BRAKES 1631903 Part Description
Manufacturer
Product Description
Service Chamber
Features & Benefits
- Steel pressure cap
- Heavy gauge steel mounting base
- Heavy-duty nylon reinforced diaphragm
- Mounting studs, grade 5, heat treated/plated
- Low-profile design
- S-Cam and disc brake applications
- Available in 1.75, 2.25, 2.50 and 3.00” stroke
- Available in 1.75, 2.25, 2.50 and 3.00" stroke
Service Chamber - w/Welded NPC, Welded on Yoke, Y=2.25", Neoprene
MGM BRAKES 1631903 Specifications
Product Attributes
| Chamber Type | Service Chamber |
| Diaphragm Diameter | Neoprene IN |
| Mounting Bolt Length | 1.550 IN |
| Mounting Bolt Thread | 5/8-11 |
| Port Size | 3/8-18 NPTF |
| Sealed | Sealed |
| Spring Size | N/A |
| Service Size | 30 |
| Stroke | 3.00 IN |
| Welded Yoke | Welded Yoke |
| UNIT | Aftermarket |
| Diaphragm | Neoprene |
| Push Rod Length - with yoke | 2.25 |
| Rod Diameter | 5/8 |
Additional Information
| Country of Origin (Primary) | US |
| 21 | |
| VMRS Code | 013004027 |
