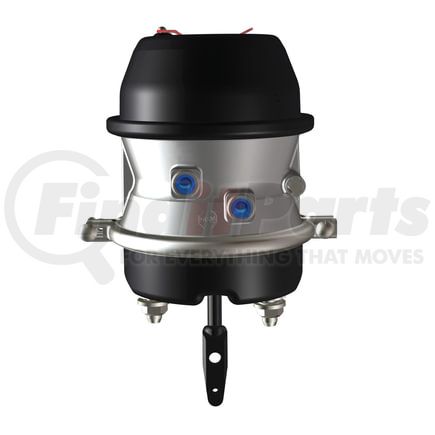

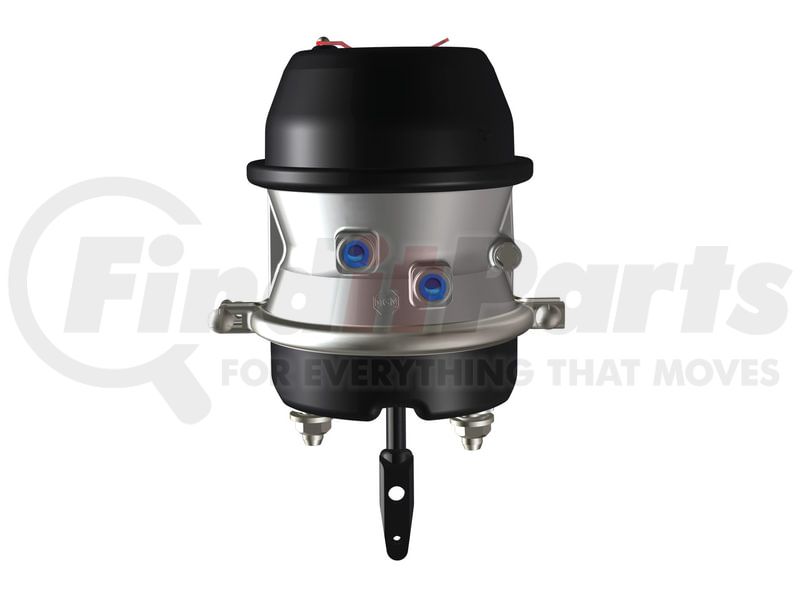

3232951 by MGM BRAKES - Brake Chamber - Combination - Welded yoke, Series 3232, Model Tr3030lp3hd, 3.00 In. Stroke
  • 3232951 by MGM BRAKES - Brake Chamber - Combination - Welded yoke, Series 3232, Model Tr3030lp3hd, 3.00 In. Stroke
  • 3232951 by MGM BRAKES - Brake Chamber - Combination - Welded yoke, Series 3232, Model Tr3030lp3hd, 3.00 In. Stroke
  • 3232951 by MGM BRAKES - Brake Chamber - Combination - Welded yoke, Series 3232, Model Tr3030lp3hd, 3.00 In. Stroke
  • 3232951 by MGM BRAKES - Brake Chamber - Combination - Welded yoke, Series 3232, Model Tr3030lp3hd, 3.00 In. Stroke

3232951 by MGM BRAKES

Number:3232951
Manufacturer:MGM BRAKES
Description:

Brake Chamber - Combination - Welded yoke, Series 3232, Model Tr3030lp3hd, 3.00 In. Stroke

$123.01

MSRP: $258.93



Save: $135.92

In stock

limited availability at this price!

Shipping Information

This item qualifies toward free domestic Ground shipping when ordered online. Only orders with an item total over $100.00 are eligible for this offer. This offer not valid for freight, LTL, or any express shipping or international orders. To ship same day, orders must be placed by 2pm EST (11am PST) during the business week. See more

See if you qualify for express

or

MGM BRAKES part description

Specifications

Aftermarket Unit
Port Size: 3/8-18 NPTF
Welded Yoke
Stroke (in.): 3.00

Service Size: 30
Spring Size: 30

Features & Benefits
  • Tamper Resistant Design
  • Center Hole Diaphragm
  • Epoxy-Coated Head, Non-Pressure Chamber and Lower Push-Rod Assembly
  • Epoxy Coated Return Spring
  • Center Hole Shield
  • Square Port Bosses (Long Stroke Identification)
  • Weatherseal Plug
  • Heavy-Duty 8-Gauge Steel Non-Pressure Chamber (Type 3030 Models)-(9-Gauge on All Other Sizes)
  • Polymer Push-Rod Guides
  • Heavy-Duty Nylon Reinforced Diaphragms
  • Heavy-Duty Nylon Reinforced Neoprene Diaphragms (Optional)
  • Stroke Alert
  • Externally Stored Release Bolt
  • 3" (76.2 mm) Long Stroke
  • Molded Nitrile Rubber Air Seal
  • Heavy-Duty Power Spring 145 lb (65.8 kg) Additional Parking Brake Force @ 1.25 inches (31.8 mm) Of Stroke
  • Composite Guide -Corrosion Fighter Technology
Model: TR3030LP3HD
Technical Data
Stroke 3.00" (76.2 mm)
Weight lb (kg) Combination 20.4 lb (9.3 kg)
Weight lb (kg) Single 11.7 lb (5.3 kg)
A 9.99" (253.7 mm)
B 7.61" (193.3 mm)
C 8.32" (211.3 mm)
D 8.21" (208.5 mm)
E 4.75" (120.7 mm)
F 5/8" - 11 UNC
Inlets 3/8" - 18 NPTF
Y 2.25"
Replacement Parts
1 Kit -NP Chamber (a) 9015904
2 Kit -Nuts & Bolts 9003001
3 Clamp Band Assembly 8216045
4 Diaphragm 8017830
5 Kit -Push-Rod Assembly (a) SAE w/ Welded Yoke 9075001
6 Return Spring 8068012
7 Kit -Center Hole Shield 9065002
8 NP Chamber Assembly (a) 8215501
9 Kit -Nuts & Washers SAE 9002001
10 Hex Nut -Yoke SAE N/A
11 Kit -Weatherseal Plug 9019005
12 Kit -Release Bolt 9007003
13 Kit -Piggyback Plus SAE 3232008
*NOTE: (a)To ensure correct stroke alert positioning, kits MUST only be used on the designated MGM brake units.
