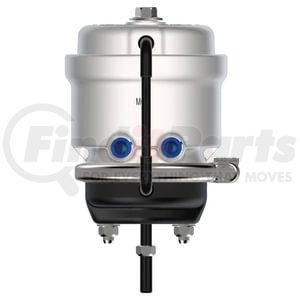

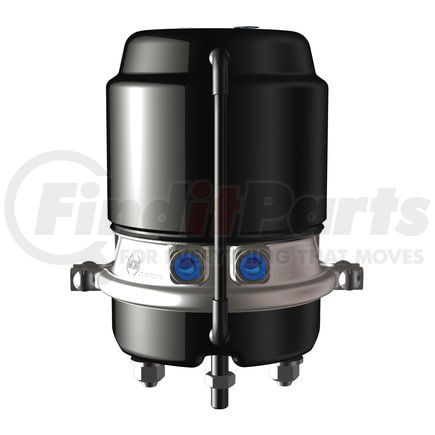

MGM Brakes MJS2430ET051 - Air Brake Chamber - MJS2430ET Series, Combination, 3" Stroke
- Part Number
- MJS2430ET051
- Manufacturer
- MGM BRAKES
- Description
-
Air Brake Chamber - MJS2430ET Series, Combination, 3" Stroke
details
$42399
2 day lead time
Pay over 3-12 months with
. Learn more
. Learn more
MGM BRAKES part description
General Description
Dry Bulk Chemicals
Features and Benefits
- Tamper Resistant Design
- Lighter Weight
- 3 inch (76.2 mm) Long Stroke
- Compact Size
- Patented Integral Release Bolt Mechanism -Minimal Bolt Protrusion -Approx. 1.25 inch (31.8 mm) Protrusion On "Long Stroke" Models When Manually Released
- Lower Hold Off Pressure (Less Air Consumption)
- Epoxy Coated Return Spring
- Non-Coil Clash Power Spring
- Increased Corrosion Resistance -Steel head, Epoxy Coated
- Available With 1,749 lb (793.3 kg) -2,450 lb (1,111.3 kg) of Push-Rod Braking Force @ 1.25 inch (31.8 mm) Stroke/Service Brake Sizes 17-36
- Center Hole Shield
Technical Specifications
| Stroke | 3.00" (76.2 mm) |
| Weight lb (kg) Combination | 23.70 lb (10.8 kg) |
| Weight lb (kg) Single | 16.26 lb (7.4 kg) |
| A | 10.70" (271.8 mm) |
| B | 8.43" (214.1 mm) |
| C | 7.50" (190.5 mm) |
| D | 7.50" (190.5 mm) |
| E | 4.75" (120.7 mm) |
| F | 5/8" - 11 UNC (M16 x 1.5 - 6g) |
| G | 5/8" - 18 UNF (M16 x 1.5 - 6g) |
| Inlets | 3/8" - 18 NPTF (M16 x 1.5 - 6H) |
| X - Min. (aftermarket unit only) | 8.00" (203.2 mm) |
Product Description
Piston Brake Chamber
Features & Benefits
- Tamper Resistant
- Long Stroke
- Compact
- Integral Release Bolt
- Epoxy Coated Return Spring/Steel Head
- Non-Coil Clash Power Spring
- Available w/1,749-2,450 lb of Push-Rod Brake Force @ 1.25” Stroke/Service
- Available w/1,749-2,450 lb of Push-Rod Brake Force @ 1.25" Stroke/Service
- Center Hole Shield
Product Attributes
| Breather Tube | Breather Tube |
| Chamber Type | Piston Brake |
| Diaphragm Diameter | Rubber IN |
| Mounting Bolt Length | 1.500 IN |
| Mounting Bolt Thread | 5/8-11 |
| Port Size | 3/8-18 NPTF |
| Spring Size | 30 |
| Service Size | 24 |
| Stroke | 3.00 IN |
| UNIT | Aftermarket |
Additional Information
| Country of Origin (Primary) | US |
| 2 | |
| VMRS Code | 013004000 |
