Centric 228.33145 - C-Tek Standard Drilled Brake Rotor
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description

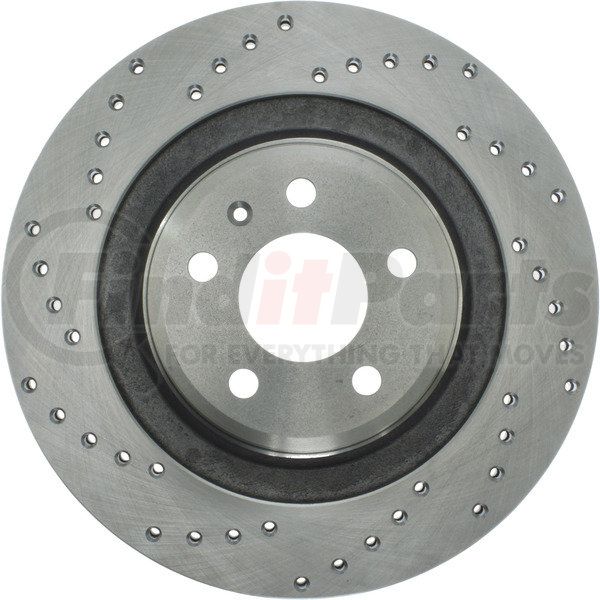

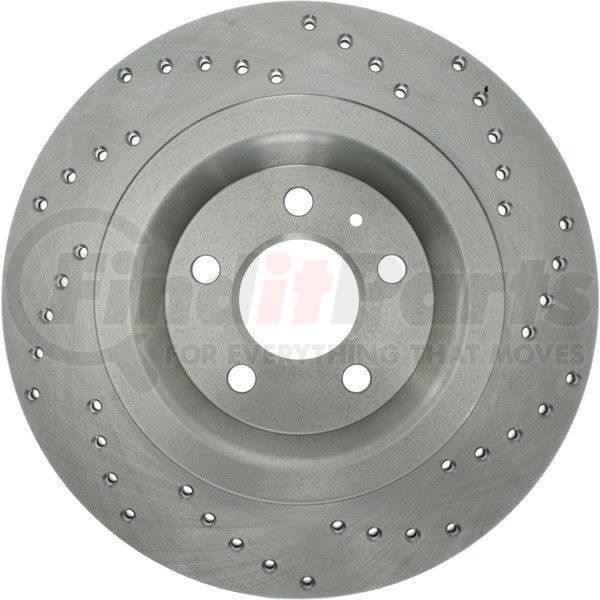

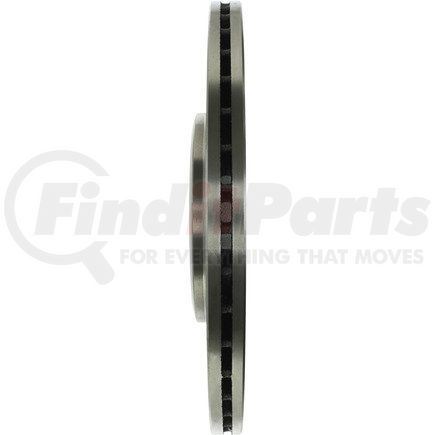

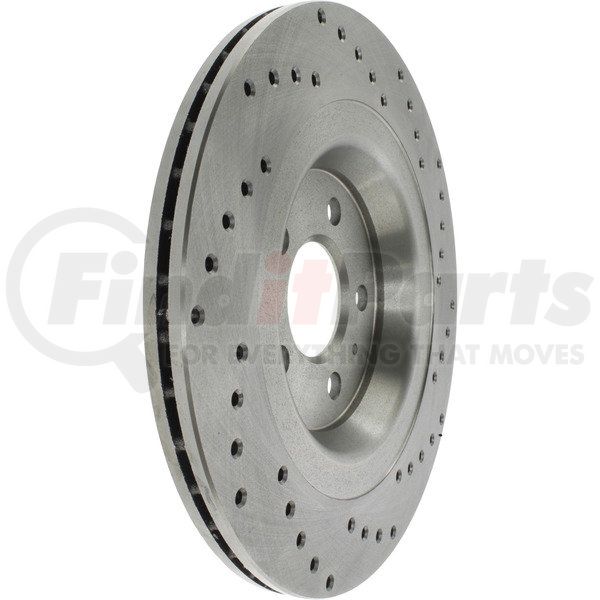

C-Tek Standard Drilled Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. G11 metallurgy. Drilled for increased bite; improved looks and better performance
Product Attributes
| Product Grade [cntrc] | Standard |
| Weight [cntrc] Lbs | 14.400 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 6.540 |
| Hat Id [cntrc] In | 7.248 |
| Hat Id [cntrc] Mm | 184.100 |
| Misc Holes [cntrc] | 1 |
| Stud/Lug Hole Diameter | 0.602 IN |
| Stud/Lug Hole Diameter | 15.300 MM |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112.000 MM |
| Center Hole Diameter | 68.000 MM |
| Center Hole Diameter | 2.677 IN |
| Bearings Included | No |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | X Drilled |
| ABS Tone Ring Included | No |
| Outside Diameter | 12.992 IN |
| Outside Diameter | 330.000 MM |
| Overall Height | 1.425 IN |
| Overall Height | 36.200 MM |
| Nominal Thickness | 22.000 MM |
| Nominal Thickness | 0.866 IN |
| Discard Thickness | 0.787 IN |
| Discard Thickness | 20.000 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590015201 |
Part Interchanges
Fits Vehicles
- Audi RS5 (2014-2015)
