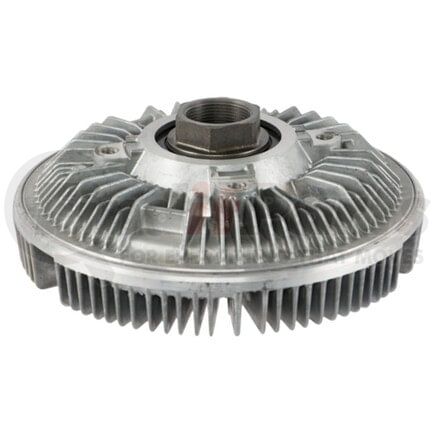

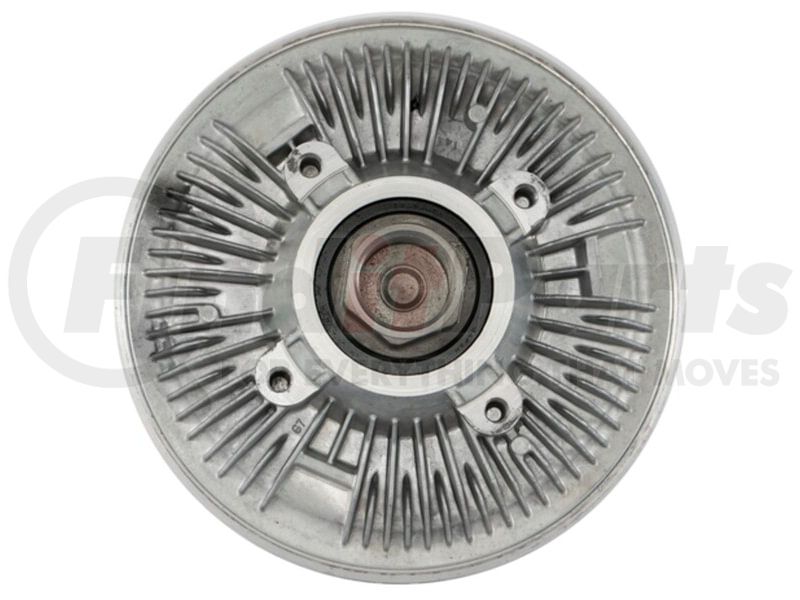

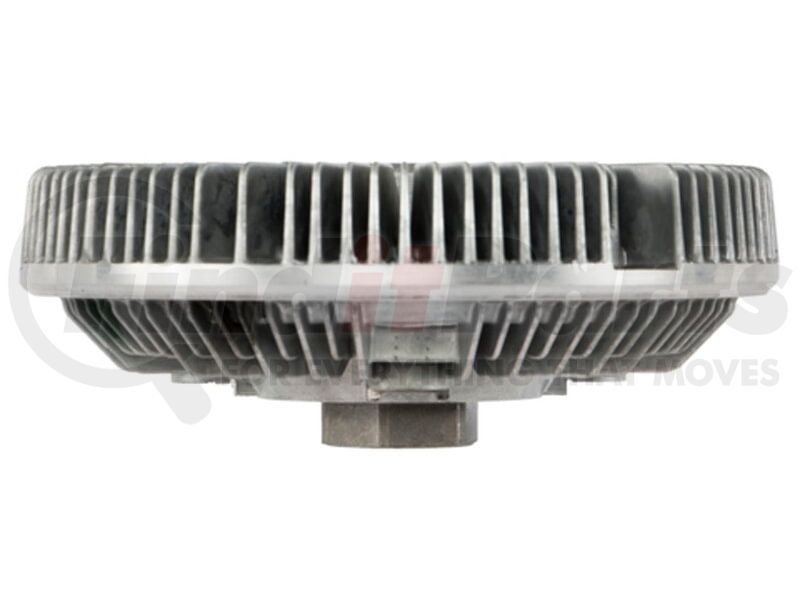

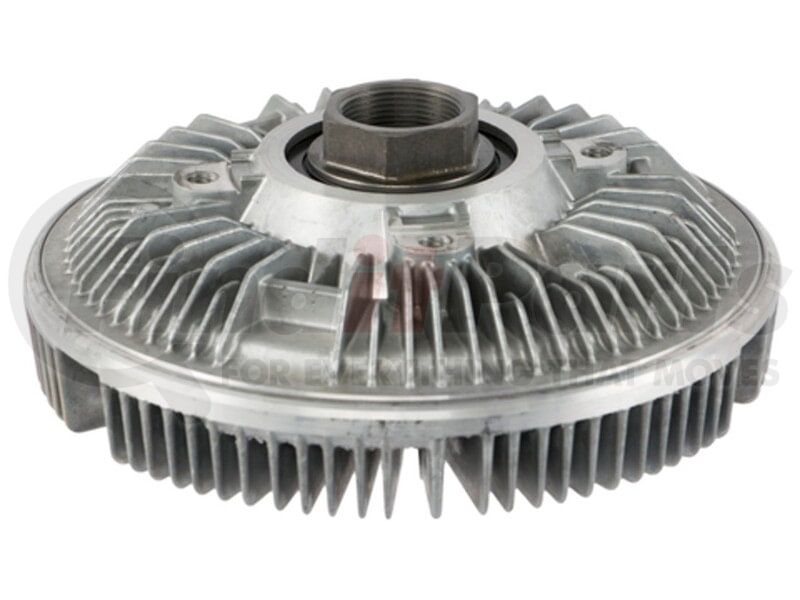

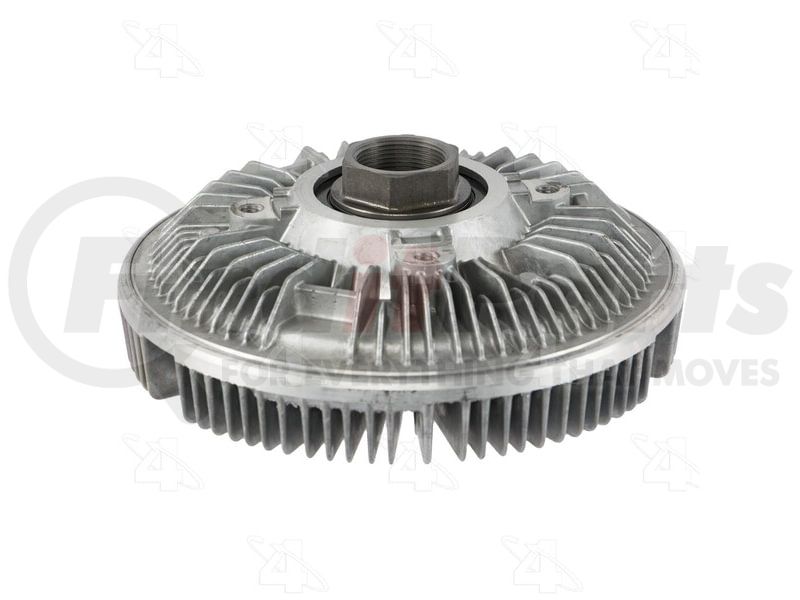

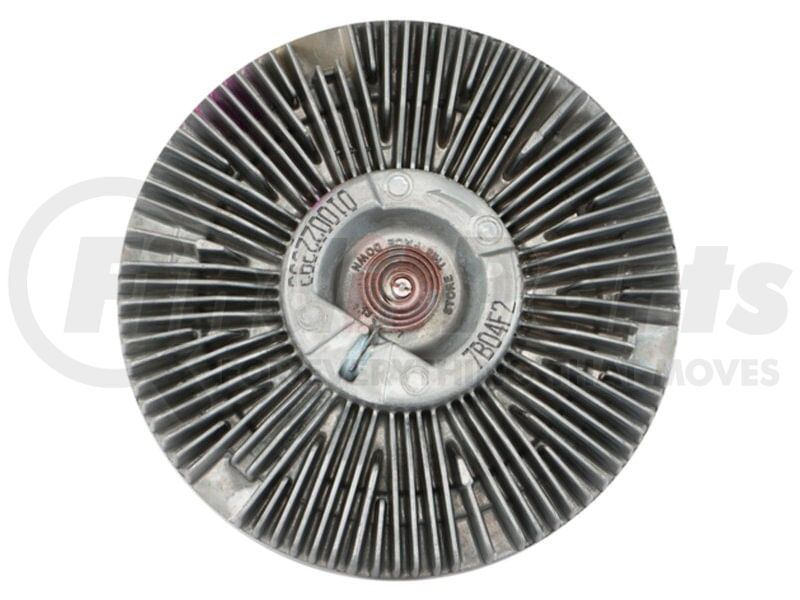

HAYDEN 2889 - Fan Clutch
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
HAYDEN part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
Reverse Rotation Severe Duty Thermal Fan Clutch
Features & Benefits
- Designed, tested, and built by application
- OE performance, fit, and appearance
- Precision machined
- Out of box installation
Product Attributes
| Material | Aluminum |
| Use Type | Severe |
| Color | Raw Aluminum in Color |
| Bolt Hole Quantity | 4 |
| Mounting Hole Quantity | 4 |
| Distance From Clutch To Mounting Flange | 0.6 IN |
| Clutch Maximum Diameter | 7.23 IN |
| Rotation | REV |
| Mounting Type | Threaded Shaft |
| Bolt Quantity | 4 |
| Bolt Thread | M8x1.250 |
| Clutch Type | D - Severe Duty & Truck Fan Drive |
| Color | Raw Aluminum in Color |
| Description | Fan Clutches |
| Dia. In | 7.23 in |
| Duty Rating | Severe |
| Electronic Clutch? | No |
| Fan Bolt Circle In | 3.8 in |
| Fan Bolt Circle Mm | 96.6 mm |
| Material | Aluminum |
| Meets / Exceeds Oem? | Yes |
| Mount Dia. In | 1.53 in |
| Mount Dia. Mm | 39 mm |
| Mount Hole Qty | 4 |
| Mount Type | Threaded Shaft |
| Mounting Hardware? | Not Included |
| New or Reman | New |
| Overall Dia. In | 7.23 in |
| Overall Dia. Mm | 183.6 mm |
| Overall Height In | 2.67 in |
| Overall Height Mm | 183.4 mm |
| Performance Rated? | Yes |
| Pilot Depth In | 0.72 in |
| Pilot Depth Mm | 18.3 mm |
| Pilot Dia. In | 1.5 in |
| Rotation | REV |
| Style | Severe Duty |
| Type | Thermal |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708935000 |
| Harmonized Tariff Code (HTS) | 8483604040 |
| MSDS Sheet Number | 0 |
| Stock Status | S |
| UPC | 00036752028894 |
Part Interchanges
Fits Vehicles
- Hummer H3T (2009-2010)
- GMC Canyon (2009-2012)
- Chevrolet Colorado (2009-2012)
- Hummer H3 (2008-2010)
