APSCO part description

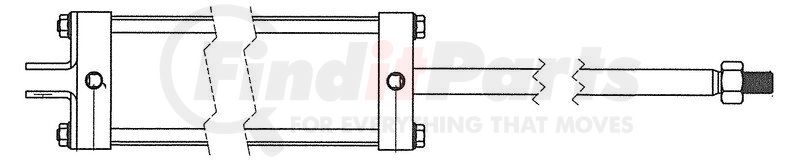

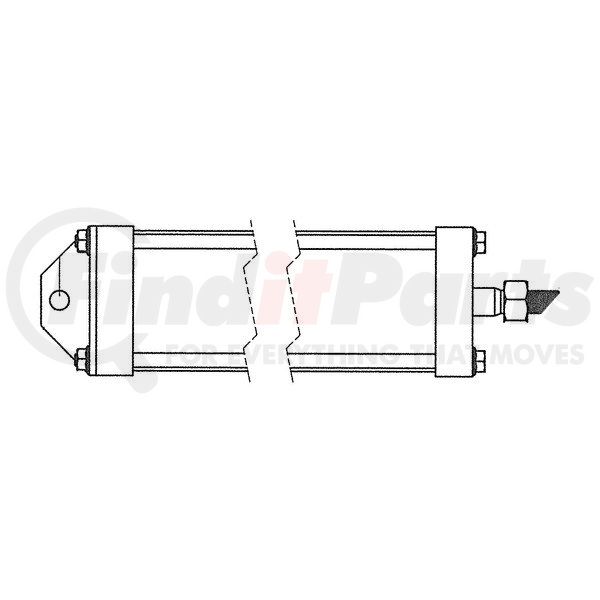

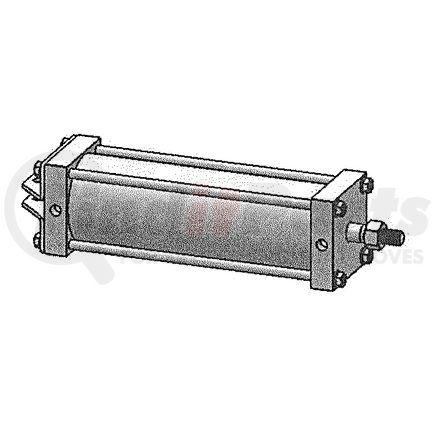

CYL 3.5 X 10 DA 10 BR

Product Attributes

Application Tailgate Latch
Bore Diameter 3.5 in.
Stroke Length 10 in.
Cylinder Type Double Acting
Pin Kit Included No
Seal Kit Part No. SK-1779
Force Rating 962 LB Force at 100 PSI
Push Rod Thread Diameter 5/8"-18 UNF
Port Diameter 1/4 in. NPT
Port Quantity 2
Clevis Pin Hole Diameter 1/2 in.
Mounting Type Bracket End
Bracket Length 10 in.

APSCO® is a proud manufacturer of pneumatic cylinders, controls, and valves for the mobile, truck equipment, and automotive industries since 1964. The company continuously evolves to meet industry challenges and the changing needs of customers. But providing innovative solutions need not compromise quality, and that's APSCO's commitment since day one. The company makes use of the highest quality materials and the latest technology in manufacturing its products. And it rigorously tests them before shipment to ensure only safe and reliable APSCO products reach their customers. These stringent manufacturing processes and tests have earned them an ISO 9001:2001-certified company, beginning in 2004.
