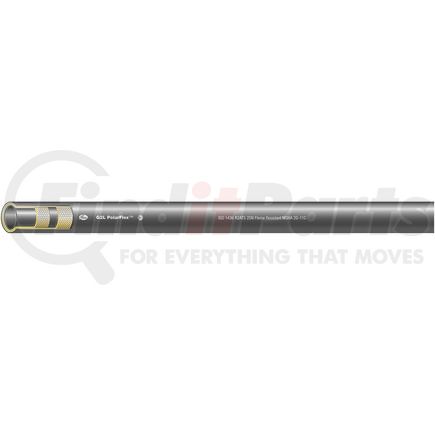

Name: Gates 85734 Global G2L PolarFlex Hose - SAE 100R2 Type S
SKU: 85734
Price: 753.99 USD
Availability: InStock

GATES 85734 Part Description

Global G2L PolarFlex Hose - SAE 100R2 Type S

For use with Field Attachable Type T Couplings [G28 Series], GlobalSpiral Couplings [G20 Series], GlobalSpiral Plus Couplings [G22 Series] and MegaCrimp Couplings [G25 Series]
Tested to industry-standard 600,000 impulse cycles
Unique low temperature tube for extended service life at extremely low temperatures
Meets Flame Resistance Acceptance Designation MSHA 2G
Temperature Range: -70 Deg. F to +212 Deg. F (-57 Deg. C to +100 Deg. C)

GATES 85734 Specifications

Industrial Description	8G2LX50FT
Type	Hydraulic Hose
Hose Pressure Description	High Pressure
Maximum Working Pressure	4000 PS
Burst Pressure	16000 PS
Temperature Rating	-70 Deg. F to +212 Deg. F (-57 Deg. C to +100 Deg. C)
Length	50 FT
Dash Size	8
Inside Diameter	.5 IN
Outside Diameter	.86 IN
Bend Radius	7 IN
Tube Description	Black, Oil-Resistant, Synthetic Rubber
Hose Material	Nitrile - Type C
Reinforcement Material	Two Braids, High-Tensile Steel Wire
Cover Material	Thin Synthetic Rubber - Chloroprene - Type A
Cover Type	Type A - Flame, Oil & Abrasion Resistant
Cover Color	Black
Coupling Recommendation	GlobalSprial, MegaCrimp
SAE Standard	100R2
EN Standard	853 2SN
ISO Standard	1436 2SN R2
Product Type	Global G2L PolarFlex Hose - SAE 100R2 Type S

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	4009210000
UPC	00072053515961
VMRS Code	059032029
UNSPSC	40142020

Brand	Part Number
Weatherhead	H32508250R
NAPA	85734
