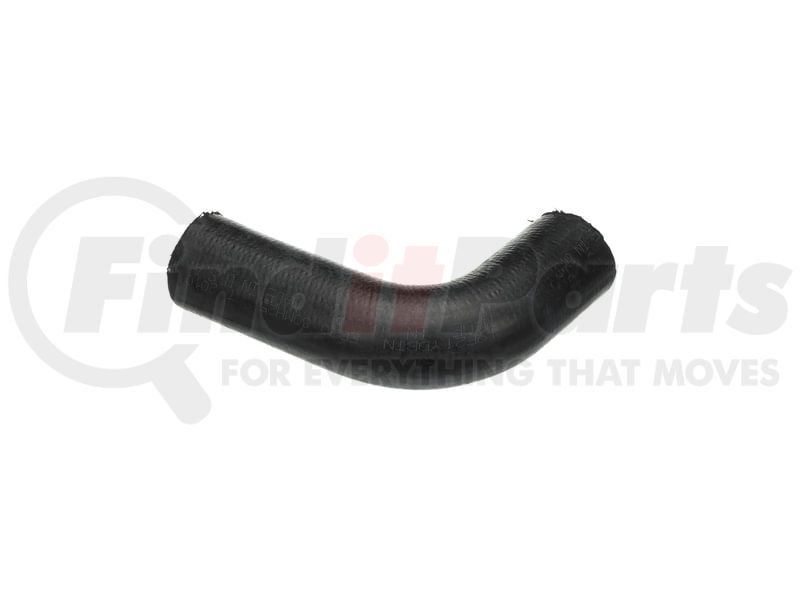

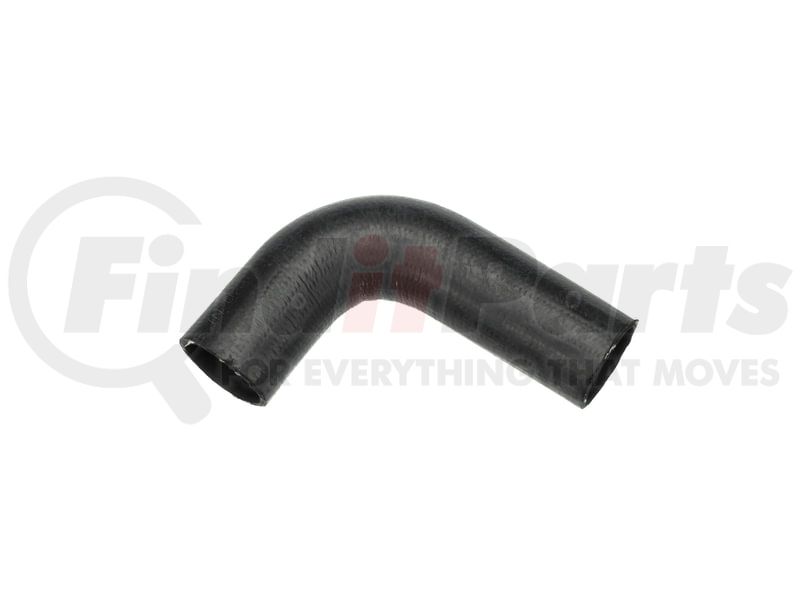

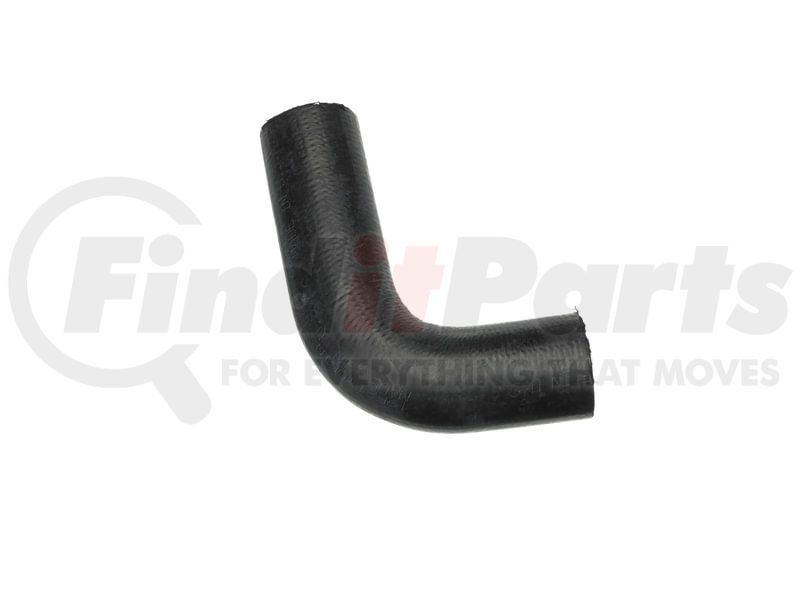

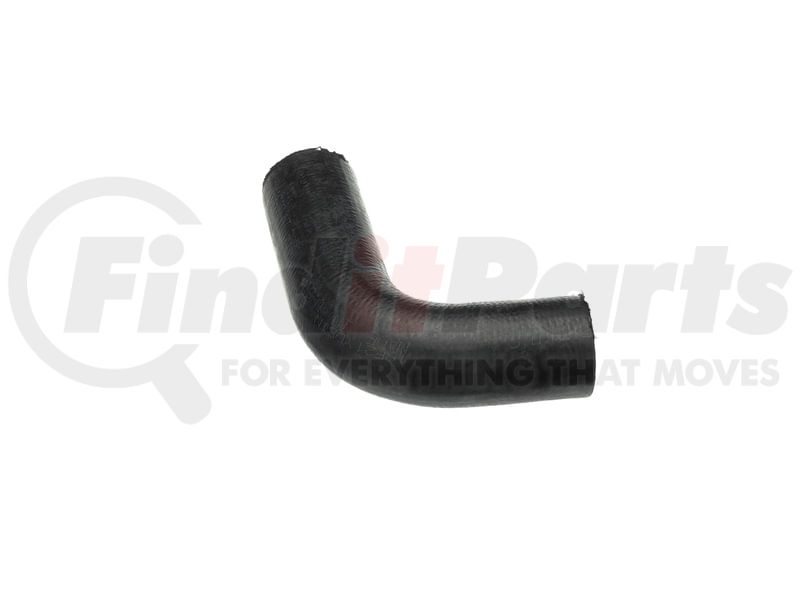

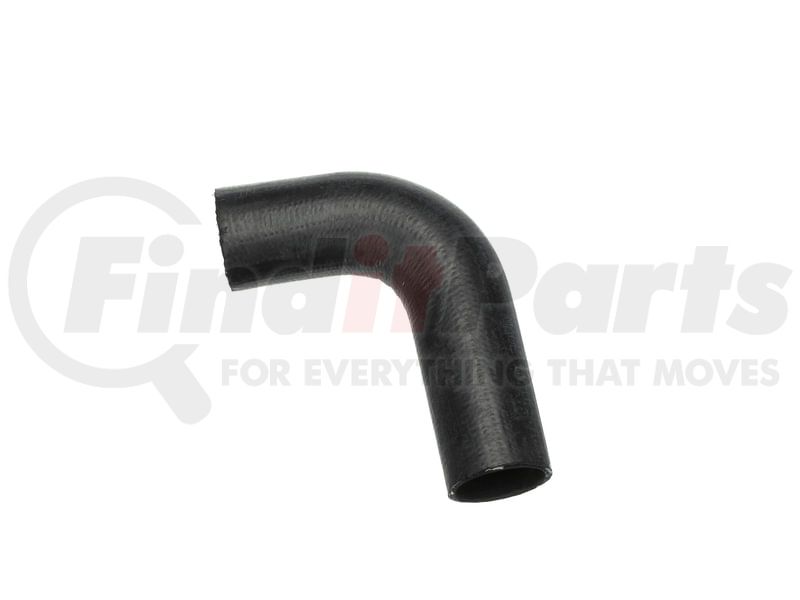

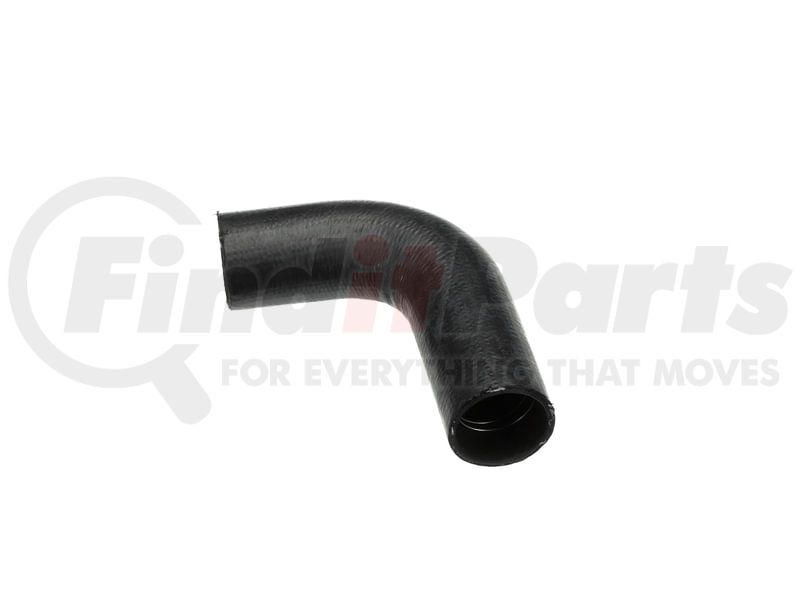

(888) 312-8812 Login SignupGATES 21194 Radiator Coolant Hose - Premium Molded
Tap to view 14 more
$3149
Limited availability at this price!
In Stock
Get as soon as Tuesday, Nov 17
GATES 21194 Part Description
Manufacturer
Product Description
Premium Molded Coolant Hose
Application Summary
2021-18 Freightliner, Business Class M2, Cummins L9 Diesel, Lower - Pipe To Eng.
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- Pre-shaped to fit and to ensure perfectly sealed conditions
- EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
- Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
GATES 21194 Specifications
Product Attributes
| Centerline Length | 12.1 IN |
| Modular | No |
| Branch Quantity | 0 |
| Quick Connect Fitting Quantity | 0 |
| End 1 Inside Diameter | 2.25 in |
| End 2 Inside Diameter | 2.25 in |
| Contains Spring | Yes |
| Material | EPDM |
| Molded | Yes |
| Centerline Length | 307 MM |
| End 1 Inside Diameter | 57 MM |
| End 2 Inside Diameter | 57 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053055849 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
GATES 21194 Cross References
| Brand | Part Number |
|---|---|
| 42611194 | |
| <Unknown> | 204073810, 204270011, 993F222 |
| ACDelco | 20125S |
| Allis Chalmers | 1306186, 1317442, 1341464 |
| Blue Bird | 1342583, 1454065 |
| Brockway | 508333, 509567, 511086, 518460, 519741, 520878, 520879, 526690, 532672, 532673, 534192, 534248 |
| CARQUEST | 21194 |
| CONTINENTAL AG | 60830, 62082 |
| Clark Equipment | 5228100, 544221 |
| Continental Belt | 60830 |
| DAYCO | 72139, 72140 |
| Dayco | B71809, 70920, C70920, 70342 |
| Duralast | C70920 |
| Durkee-Atwood | MR219 |
| FAIRCHILD | MCH1084 |
| FiatAllis | 73072012 |
| Ford | D4HA 8260 MA, D5HA 8260 FA, D5HA 8260 JA, D6PZ 8260 J, D9PZ 8260 J, E7NN 8286 AA, D0HZ 8260 R, D2AH 8260 ASA, D2HA 8260 ASA, D2HA 8260 BDA, D2HA 8260 BDB, D3HZ 8260 D, D6PZ 8260 T, D9HZ 8260 S, D9HZ 8260 M |
| Freightliner Trucks | 05-16062-047, 0516062000, 0516062002, 0516062004, 0516062005, 0516062019, 0516062021, 0516062047, 0529973004 |
| General Motors | 15519187, 8924386, 15592177 |
| Goodyear | 60830, 62082 |
| Hyster | 214335 |
| International Harvester (IHC) | 339724C11, 997477C1 |
| Mack | 10MF19301P1, 11MF128AP1, 11MF128AP2, 11MF128AP9, 11MF3574M7 |
| Massey Ferguson | 1030142M1, 3321585M1 |
| Miller | 187893 |
| Mopar | BH-1613 |
| Motorcraft | KM-709, KM-840, KM-288, KM-723, KMS-1090, KMS-1086 |
| NAPA Belts/Hose | 7905 |
| NAPCO | DSG041325 |
| New Idea | 731026 |
| Oshkosh | 1608660 |
| Sterling | 0516062000, 0516062002, 0516062004, 0516062005, 0516062019 |
| Towmotor | 387162 |
| Volvo GM Heavy Truck | V1092070 |
| Western Star | 0516062047 |
| White | 027120732, 5DR305, 935F214, 027023225, 027126732, 204070033, 204070038, 529697, 529698, 8002117, 8002482, 934F248, 935F2F22, 027023255, 204230001, 204230002, 204230006, 204230011, 204230046, 204230005, 204233206 |
GATES 21194 Fits Vehicles
- Autocar LLC. Xpeditor (2009)
- Autocar LLC. Xpeditor WX (2006-2009)
- Autocar LLC. Xpeditor WXLL (2008-2009)
- Autocar LLC. Xpeditor WXR (2006)
- Freightliner 114SD (2012-2025)
- Freightliner Classic (2004-2005)
- Freightliner FC70 (1999-2001)
- Freightliner FC80 (2004-2007)
- Freightliner FL106 (2000-2001)
- Freightliner FL112 (1999)
- Freightliner FL50 (1995-2003)
- Freightliner FL60 (1995-2004)
- Freightliner FL70 (1995-2005)
- Freightliner FL80 (1995-2005)
- Freightliner FLD112 (1996-1997)
- Freightliner FLD120 (1996-1997)
- Freightliner FS65 (1997)
- Freightliner M2 106 (2013-2014, 2016-2023)
- Freightliner M2 112 (2013-2025)
- Freightliner MC Line (2022, 2024-2025)
- Freightliner MT45 (2010)
- Freightliner S2C (2017)
- Freightliner XC (2002, 2004-2005)
- Freightliner XC Formed Rail (2005)
- Freightliner XC Lowered Rail (2015-2017)
- Freightliner XC Modular Rail (2015-2018, 2021, 2024-2025)
- Freightliner XC Raised Rail (2005, 2015-2018, 2021, 2024-2025)
- Freightliner XC Straight Rail (2002, 2005, 2015-2018, 2021, 2024-2025)
- International 4600 (1994)
- International 4600LP (1994)
- International 4700 (1994)
- International 4700LP (1994)
- International 7300 (2006)
- International 7400 (2005-2007)
- International 7500 (2016)
- International 8100 (2002-2003)
- Kenworth T300 (2005-2007)
- Mack CV (2001-2002)
- Mack R (1981-1985)
- Mack RW (1985-1991)
- Mack RWL (1981-1985)
- Mack RWS (1981-1985)
- Peterbilt 335 (2005-2007)
- Peterbilt 340 (2008-2009)
- Peterbilt 357 (2001)
- Western Star 3700 (2000-2001)
- Western Star 4700SB (2013-2022)
- Western Star 4700SF (2012-2023)
- Blue Bird SHL TC2000 (1993-1996, 1998-2002)
- Blue Bird TC2000 (1989-1996, 1998-2002)
- Chevrolet J90 (1978)
- Ford CL9000 (1981-1986)
- Ford CLT9000 (1981-1986)
- Ford L900 (1981)
- Ford L9000 (1981-1986)
- Ford LN900 (1981)
- Ford LN9000 (1981-1986)
- Ford LNT900 (1981)
- Ford LNT9000 (1981-1986)
- Ford LT9000 (1981-1986)
- Ford LTS9000 (1981-1986)
- GMC Astro (1981-1988)
- GMC Brigadier (1981-1988)
- GMC General (1985-1988)
- Sterling Truck Acterra (2004)
- Sterling Truck Acterra 5500 (2004)
- Sterling Truck Acterra 6500 (2004)
- Sterling Truck Acterra 7500 (2004)
- Sterling Truck L7500 (2007)
- Sterling Truck L8500 (2007)
- Sterling Truck LT7500 (2007)
- Sterling Truck LT8500 (2007)
- Sterling Truck SC7000 Cargo (2001-2002)
- Sterling Truck SC8000 Cargo (2001-2007)
- White WCA (1988)
- White WCL (1982-1988)
- White WCM (1981-1988)
- White WCS (1981-1988)
- White WHL (1981-1987)
- White WHM (1981, 1984-1987)
- White WHS (1981-1987)
- White WIL (1984-1988)
- White WIM (1984-1988)
- White WX (1981-1988)
- White WXLL (1987-1988)
- White/GMC J9C0 (1988-1989)
- White/GMC WCA (1988)
- White/GMC WCL (1988-1989)
- White/GMC WCM (1988-1989)
- White/GMC WCS (1988)
- White/GMC WG (1990-1994)
- White/GMC WIL (1988-1989)
- White/GMC WIM (1988)
- White/GMC WX (1988-1989)
- White/GMC WXLL (1989)
