CENTRIC part description
Product Description

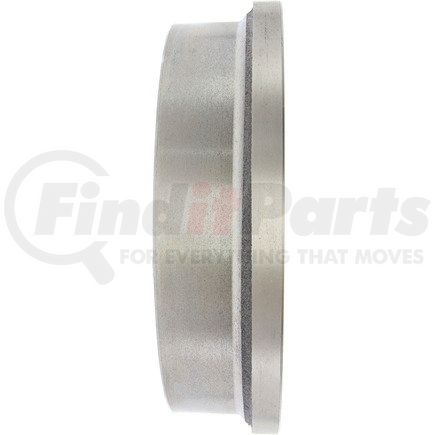

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Misc Holes [cntrc] | 1 |
| Weight [cntrc] Kgs | 4.091 |
| Weight [cntrc] Lbs | 9.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 100.000 |
| Bolt Circle Diameter [cntrc] In | 3.937 |
| Hub Hole / Register [cntrc] Mm | 57.100 |
| Hub Hole / Register [cntrc] In | 2.248 |
| Height [cntrc] Mm | 66.600 |
| Height [cntrc] In | 2.622 |
| Friction Surface Width [cntrc] Mm | 49.600 |
| Friction Surface Width [cntrc] In | 1.953 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 231.000 MM |
| Maximum Brake Diameter (Discard) | 9.094 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 265.000 MM |
| Outside Diameter | 10.433 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 14.500 MM |
| Mounting Hole Diameter | 0.571 IN |
| Nominal Drum Diameter | 9.055 IN |
| Nominal Drum Diameter | 230.000 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 889590001631 |
Part Interchanges
Fits Vehicles
- Chevrolet Astra (2000-2008)
