GATES G20301-2020 Part Description
Manufacturer
Product Description

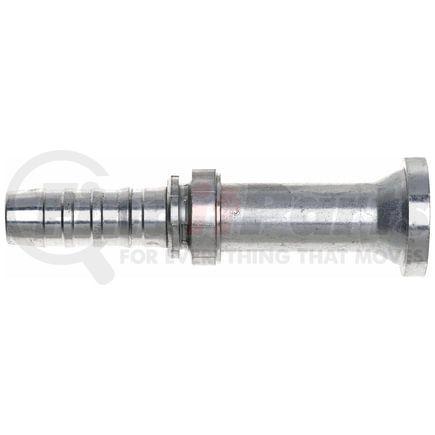

Code 61 O-Ring Flange Long Neck (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20301-2020 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Code 61 O-Ring Flange Long Neck |
| Industrial Description | 20GS-20FLL |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Maximum Working Pressure | 4000 PS |
| Flange Thickness | .32 in |
| Flange Diameter | 2 IN |
| Cut-Off Length | 3.46 IN |
| Length | 6.26 IN |
| Inside Diameter | 31.8 MM |
| Flange Thickness | 8.1 MM |
| Flange Diameter | 50.8 MM |
| Cut-Off Length | 87.9 MM |
| Length | 159 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | N |
| UPC | 00770075251866 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20301-2020 Cross References
| Brand | Part Number |
|---|---|
| Dayco | 100106U |
| N/A | 04030926 |
| NAPA | G20301-2020 |
