(888) 312-8812 Login SignupMONROE SC2967 Magnum Steering Damper
Tap to view 5 more
MSRP: $84.73
$4899
Save $35.74
Limited availability at this price!
In Stock
Get it by Monday, Dec 15
MONROE SC2967 Part Description
Manufacturer
Product Description

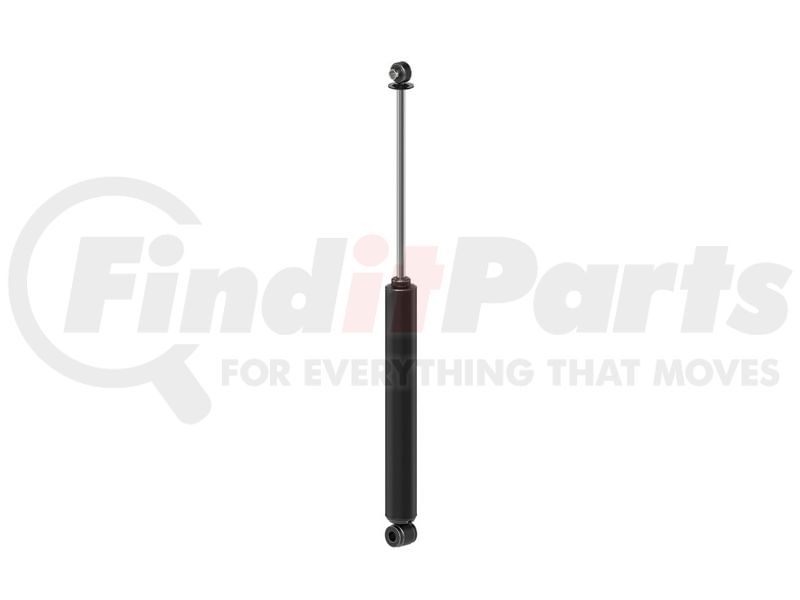

Magnum Steering Damper
Features & Benefits
- REDUCES VIBRATION -- Ideal for trucks, vans, SUVs, and CUVs, it helps reduce vibrations that travel through the steering system before they get to the driver to improve control and cut down on driver fatigue in all driving conditions
- CONSISTENT PERFORMANCE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- STRONG AND DURABLE -- Sintered iron piston and .50-in. nitrocarburized piston rod for enhanced durability and long service life
- EXCEPTIONAL HANDLING -- Full displaced valving delivers better valving range on both compression and extension cycles for consistent performance
- LONGER SERVICE LIFE -- Self-lubricating fluid seal retains gas without excessive wear or friction
- MOUNTS HORIZONATALLY -- Micro-cellular gas design allows the unit to be mounted horizontally without impacting performance for improved steering control
MONROE SC2967 Specifications
Product Attributes
| Compressed Length | 16.11 IN |
| Extended Length | 27.79 in |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Travel Length | 11.68 in |
| Body Diameter | 1.86 IN |
| Lower Mount Type | Loop Bushing Mount - 5/8" Bushing ID X 1-5/16" Bushing OAL |
| Lower Mount Code | L1 |
| Upper Mount Type | Loop Bushing And Sleeve Mount - 12mm Sleeve ID X 38.1mm Sleeve OAL |
| Upper Mount Code | LS26 |
| Dust Shield Included | No |
| Dust Shield Material | N/A |
| Gas Charged | No |
| Parts Pack(s) | P01385 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Adjustable Damping | No |
| Internal Construction Type | Twin Tube |
| Color | Black |
| Finish | Painted |
| Foam Cell Design | Yes |
| Shaft Diameter | 16 MM |
| Part Description | Steering Damper |
| Compressed Length | 409.2 MM |
| Extended Length | 705.9 MM |
| Travel Length | 296.7 MM |
| Body Diameter | 47.2 MM |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708949900 |
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| UPC | 00048598023995 |
| VMRS Code | 015004022 |
| UNSPSC | 25174202 |
MONROE SC2967 Part Interchanges
| Brand | Part Number |
|---|---|
| Ford | BC343E651DB, BC3Z3E651A, BC3Z3E651B, HC3Z3E651A, HC3Z3E651B, HC3Z3E651C, HC3Z3E651D, HC3Z3E651E, HC3Z3E651F, KC3Z3E651B, KC3Z3E651E, KC3Z3E651G |
| Motorcraft | ASH12211, ASH866167, ASH85914, ASH85973, ASH866238 |
| OEM | HC3Z3E651F, KC3Z3E651B, BC3Z3E651B, BC343E651DB, HC3Z3E651D, HC3Z3E651B |
| KYB | SS10202, SS10202HD |
| Bilstein | 24196284 |
| Rancho | RS5415 |
| NAPA Shocks | SC2967 |
| Gold Shock Absorber | 8550026 |
| PRT | 930848, 932815 |
MONROE SC2967 Fits Vehicles
- Ford F-600 Super Duty (2020-2022)
- Ford F-550 Super Duty (2011-2023)
- Ford F-450 Super Duty (2011-2023)
- Ford F-250 Super Duty (2011-2024)
- Ford F-350 Super Duty (2011-2024)
MONROE SC2967 Cross References
We have 2 alternatives for the SC2967 by MONROE:
