MONROE 550057 Part Description
Manufacturer
Product Description

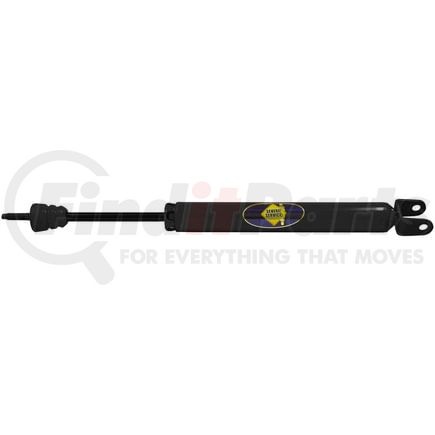

Magnum Severe Service Rear Suspension Shock Absorber
Features & Benefits
- ENGINEERED FOR EMERGENCY AND FLEET VEHICLES -- For hardworking first responder, municipal, fleet and jobsite vehicles and features 10-stage valving that adjusts to road extremes to help handle frequent stops, heavy loads and high miles
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- STRONG AND DURABLE -- Double welded, including arc welds up to 360-degrees, for durability while shouldered bushing and bonded bushing (on most applications) delivers quality
- BUILT TO LAST -- Heavy-duty nitrocarburized rod (on most applications) and sintered iron piston enhance durability for longer service life
- LONGER SERVICE LIFE -- Larger bore, bigger 2-in. reserve tube and 0.05-in. pressure tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
- CONTROL AND DURABILITY – PTFE-banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces for smooth operation
MONROE 550057 Specifications
Product Attributes
| Compressed Length | 19.18 IN |
| Compressed Length | 487.2 MM |
| Extended Length | 24.8 in |
| Extended Length | 629.9 MM |
| Travel Length | 5.62 in |
| Travel Length | 142.7 MM |
| Lower Mount Type | Clevis Bracket Mount |
| Lower Mount Type | Clevis |
| Lower Mount Code | CLEV |
| Upper Mount Type | Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch |
| Upper Mount Code | S5 |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Mounting Hole |
| Gas Charged | Yes |
| Mounting Hardware Included | Yes |
| Parts Pack(s) | P00590,P01637 |
| Body Color | Black |
| Cylinder Color | Black |
| Color | Black |
| Cylinder Finish | Painted |
| Dust Shield Included | Yes |
| Includes Bump Stop | Yes |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01170 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598137609 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 550057 Cross References
| Brand | Part Number |
|---|---|
| 550057MM, 747730039978 | |
| Autopart International | 2701603089 |
| FCS | 346101, 346100 |
| FCS AUTO PARTS | 346101 |
| Ford | DB5Z18124E, DB5Z18124F, DB5Z18124X, DB5Z18124Y, DB5Z18125A, DB5Z18125H, EB5Z18124A, EB5Z18124B, FB5Z18124E, FB5Z18124F, FB5Z18124N, FB5Z18124P, FB5Z18125E |
| Gabriel | G51980 |
| KYB | 3440040, 5510025 |
| MOTORCRAFT | ASH24546 |
| Motorcraft | ASH24673 |
| NAPA Shocks | 550057 |
| OEM | FB5Z18125E, DB5Z18125H |
| PM Auto | PM6001440 |
| Sensen | 12140914 |
MONROE 550057 Fits Vehicles
- Ford Police Interceptor Utility (2013-2019)
