CENTRIC 120.6308 Part Description
Manufacturer
Product Description

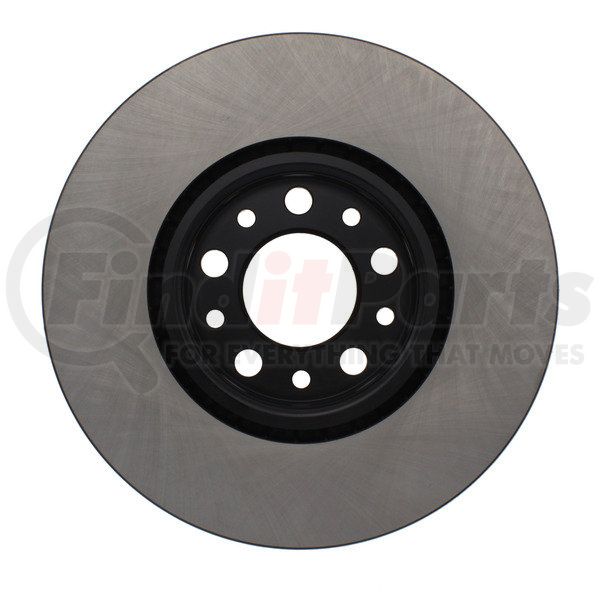

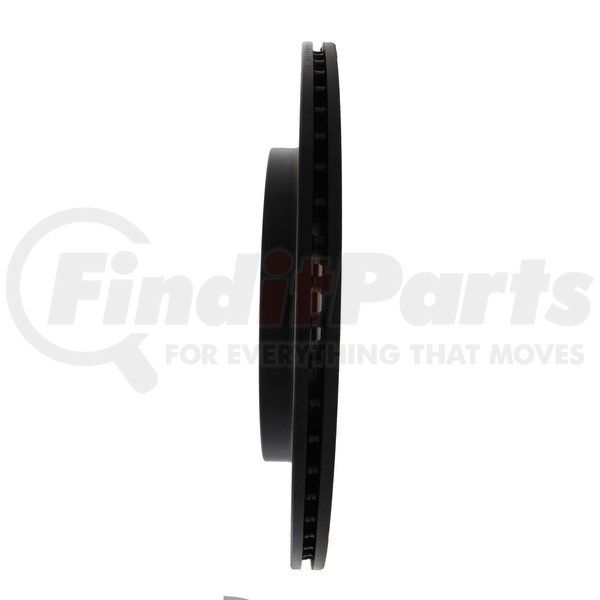

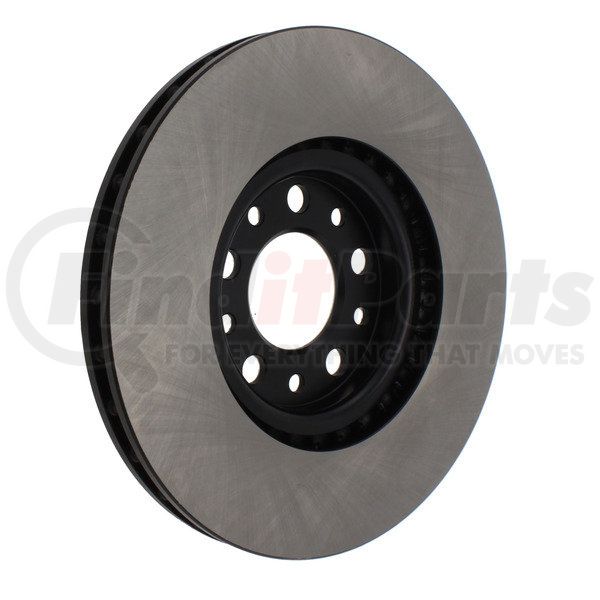

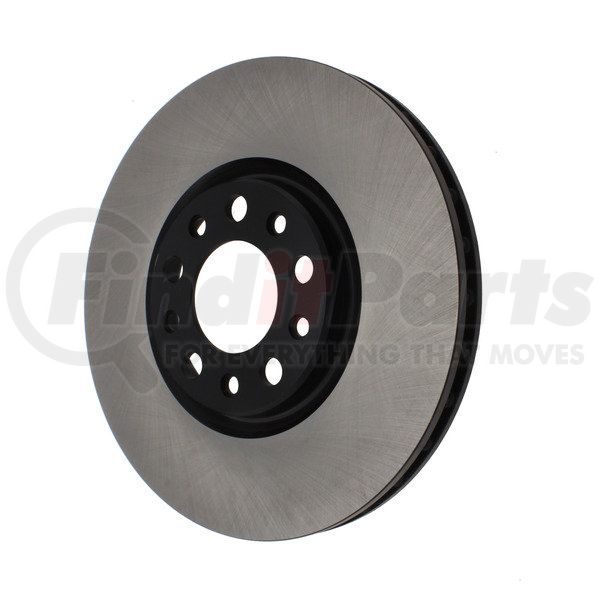

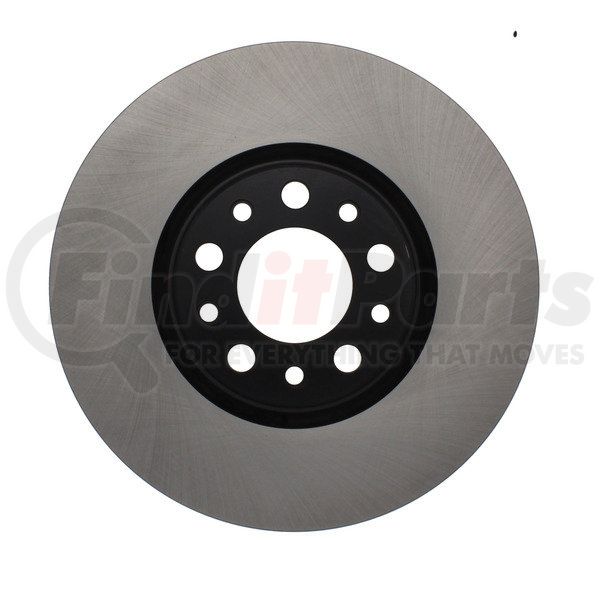

Centric Premium Brake Rotor
Application Summary
Chrysler 200 2017-2015, Dodge Dart 2016-2013, Fiat 500X 2022-2016, Jeep Compass 2022-2017, Renegade 2022-2015
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
Premium rotor; rotors; Centric; brake rotor; break; brake disc; disc brake
CENTRIC 120.6308 Specifications
Product Attributes
| Discard Thickness | 1.024 IN |
| Nominal Thickness | 28.000 MM |
| Hat Finish | Coated |
| Overall Height | 1.575 IN |
| Outside Diameter | 305.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 70.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.331 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.654 IN |
| California Proposition 65 Text [basic] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating |
| Hat Id [cntrc] In | 5.362 |
| Hat Id [cntrc] Mm | 136.200 |
| Misc Holes [cntrc] | 5 |
| Vane Style [cntrc] | Pillar |
| Weight [cntrc] Kgs | 7.960 |
| Weight [cntrc] Lbs | 17.550 |
| Overall Height | 40.000 MM |
| Center Hole Diameter | 2.756 IN |
| Disc Mounting | Floating |
| Hat Inside Diameter | 5.362 |
| Misc Holes | 5 |
| Vane Style | Pillar |
| Weight | 7.960 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890884071 |
CENTRIC 120.6308 Cross References
CENTRIC 120.6308 Fits Vehicles
- Jeep Compass (2017-2022)
- Chrysler 200 (2015-2017)
- Fiat 500X (2016-2022)
- Jeep Renegade (2015-2022)
- Dodge Dart (2013-2016)
