(888) 312-8812 Login SignupCENTRIC 125.66050 Centric Premium High Carbon Alloy Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 125.66050 Part Description
Manufacturer
Product Description
Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

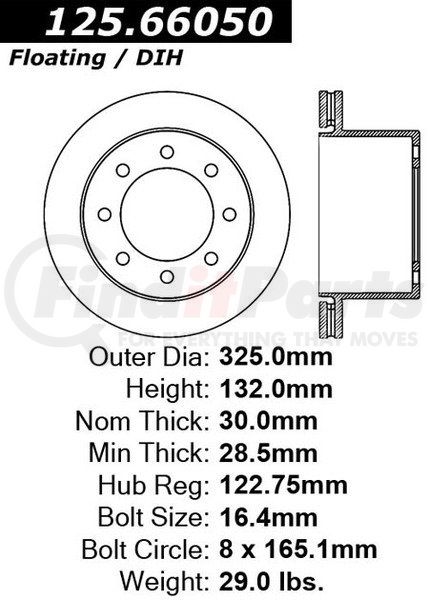

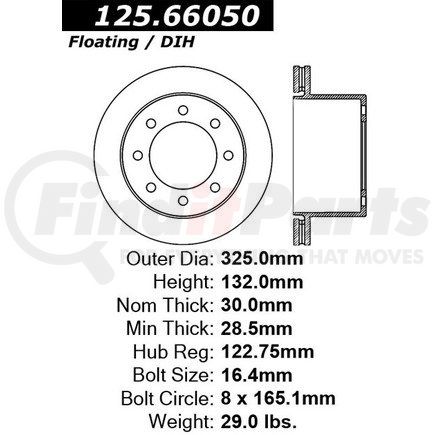

CENTRIC 125.66050 Specifications
Product Attributes
| Weight [cntrc] Kgs | 13.180 |
| Disc Mounting [cntrc] | Floating / DIH |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 29.000 |
| Misc Holes [cntrc] | 0 |
| Max Pb Drum Dia [cntrc] In | 8.177 |
| Max Pb Drum Dia [cntrc] Mm | 207.700 |
| Vane Style [cntrc] | Straight |
| Discard Thickness | 28.500 MM |
| Discard Thickness | 1.122 IN |
| Nominal Thickness | 1.181 IN |
| Nominal Thickness | 30.000 MM |
| Hat Finish | Painted |
| Overall Height | 131.500 MM |
| Overall Height | 5.177 IN |
| Outside Diameter | 325.000 MM |
| Outside Diameter | 12.795 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 206.200 MM |
| Nominal Drum Diameter | 8.118 IN |
| Bearings Included | No |
| Center Hole Diameter | 122.800 MM |
| Center Hole Diameter | 4.835 IN |
| Mounting Bolt Hole Circle Diameter | 165.100 MM |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Stud/Lug Hole Quantity | 8 |
| Stud/Lug Hole Diameter | 0.646 IN |
| Stud/Lug Hole Diameter | 16.400 MM |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890527442 |
CENTRIC 125.66050 Cross References
CENTRIC 125.66050 Fits Vehicles
- GMC Sierra 3500 Classic (2007)
- Chevrolet Silverado 3500 Classic (2007)
- GMC Sierra 3500 HD (2007-2010)
- Chevrolet Silverado 3500 HD (2007-2010)
- GMC Sierra 3500 (2001-2006)
- GMC Savana 3500 (2003-2008)
- Chevrolet Silverado 3500 (2001-2007)
- Chevrolet Express 3500 (2003-2008)
CENTRIC 125.66050 Customer Reviews
No reviews yet
Be the first to review this product!
CENTRIC 125.66050 Questions & Answers
No questions yet
Be the first to ask a question about this product!
