(888) 312-8812 Login SignupRAYBESTOS 56992 Raybestos Specialty - Truck Brake Rotor
$24499
Limited availability at this price!
In Stock
Get it by Friday, Jun 26
RAYBESTOS 56992 Part Description
Manufacturer
Product Description

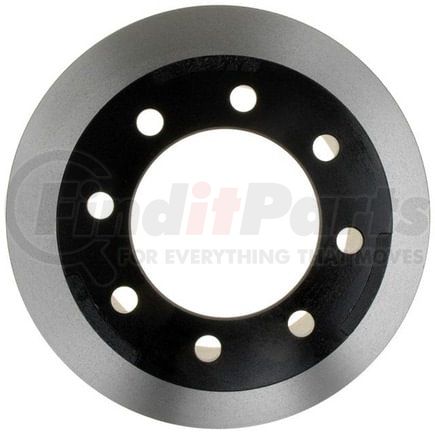

Raybestos Specialty - Truck Brake Rotor
Application Summary
2008-2003 Chevrolet Express 3500 Rear, 2007-2001 Chevrolet Silverado 3500 Rear, 2008-2003 GMC Savana 3500 Rear, 2010-2007 Chevrolet Silverado 3500 HD Rear, 2006-2001 GMC Sierra 3500 Rear, 2010-2007 GMC Sierra 3500 HD Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 56992 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 4.84 IN |
| Center Hole Diameter | 122.95 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.122 IN |
| Discard Thickness | 28.5 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 6.5 IN |
| Mounting Bolt Hole Circle Diameter | 165.1 MM |
| Mounting Bolt Hole Diameter | 0.66 IN |
| Mounting Bolt Hole Diameter | 16.75 MM |
| Mounting Bolt Hole Quantity | 8 |
| Nominal Thickness | 1.185 IN |
| Nominal Thickness | 30.1 MM |
| Outside Diameter | 12.8 IN |
| Outside Diameter | 325.1 MM |
| Overall Height | 5.2 IN |
| Overall Height | 132.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 8 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730912233 |
RAYBESTOS 56992 Cross References
| Brand | Part Number |
|---|---|
| ACDELCO | 177-879 |
| ADVANCE AUTO PARTS | 145339, G12497SD, YH145339, YH145339C, YH145339P |
| AMERICAN REMANUFACTURED | 89-44050 |
| AUTOPARTSOURCE | 493255 |
| AUTOSPECIALTY | AR8646, AR8646E |
| AUTOXTRA | 125778, 60403, 8056992, AX55075 |
| AUTOZONE | 55075, 55075DG, DL55075 |
| BENDIX | 145339 |
| BOSCH | 25010575 |
| BRAKEBEST | 25010575, 56992, 56992FZN, 56992R, 56992RGS, 81-125778, BD125778 |
| BREMBO | 09.B539.10, 27234, A-5811, 09.B539.11 |
| CENTRIC | 120.66050, 120.66050CRY, 121.6605, 121.66050, 125.66050, 126.66050CSL, 126.66050CSR, 126.66050SL, 126.66050SR, 127.66050CL, 127.66050CR, 127.66050L, 127.66050R, 128.66050L, 128.66050R, 227.66050L, 227.66050R, 320.66050, 320.66050F, 321.66050, 120.6605 |
| CONTINENTAL-CONTITECH | CW30723 |
| Casting Numbers | 15769474, 211331-C, 325533 |
| Centric Parts | 120.66050, 120.66050CRY, 121.6605, 121.66050, 125.66050, 126.66050CSL, 126.66050CSR, 126.66050SL, 126.66050SR, 127.66050CL, 127.66050CR, 127.66050L, 127.66050R, 128.66050L, 128.66050R, 227.66050L, 227.66050R, 320.66050, 320.66050F, 321.66050 |
| DURA CORP | BR55075, BR5507502 |
| DuraGo | BR55075, BR5507502 |
| FORMULA BLUE HYDRAULIC BRAKE PARTS | E12571055 |
| GM | 15769474 |
| General Motors | 15769474 |
| MAGMA PRODUCTS | PSR225222 |
| MIGHTY DISTRIBUTING SYSTEM | 55075 |
| MONROE BRAKES | BD125778 |
| NEOTEK | 107284GF |
| NEWTEK AUTOMOTIVE | 55075 |
| Newtek Automotive USA | 55075 |
| PEP BOYS | 55075G |
| POWERSTOP | AR8646EVC |
| PROMAX | 14-55075 |
| PRONTO | BR55075 |
| QUALIS | 55075 |
| QUALITY BRAND | 55075 |
| STANDARD ROTORS AND DRUMS | 55075 |
| THE UNIVERSAL GROUP | 101985 |
| TopNotch | TN56992GEO |
| UAP | 2055075, 55075 |
| Ultra Brake | 55879 |
| Universal | 101985 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51475 |
| WABCO | PS125778 |
| WABCO - Archived | PS125778 |
| WAGNER | BD125778E, BD125778 |
| WAGNER BRAKE | BD125778, BD125778E |
| WINHERE | 662895 |
| WORLDPAC | 1407-25474, 1427-530019 |
RAYBESTOS 56992 Fits Vehicles
- GMC Sierra 3500 Classic (2007)
- Chevrolet Silverado 3500 Classic (2007)
- GMC Sierra 3500 HD (2007-2010)
- Chevrolet Silverado 3500 HD (2007-2010)
- GMC Sierra 3500 (2001-2006)
- GMC Savana 3500 (2003-2008)
- Chevrolet Silverado 3500 (2001-2007)
- Chevrolet Express 3500 (2003-2008)
