(888) 312-8812 Login SignupCENTRIC 120.6605 Centric Premium Brake Rotor
Tap to view 4 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.6605 Part Description
Manufacturer
Product Description

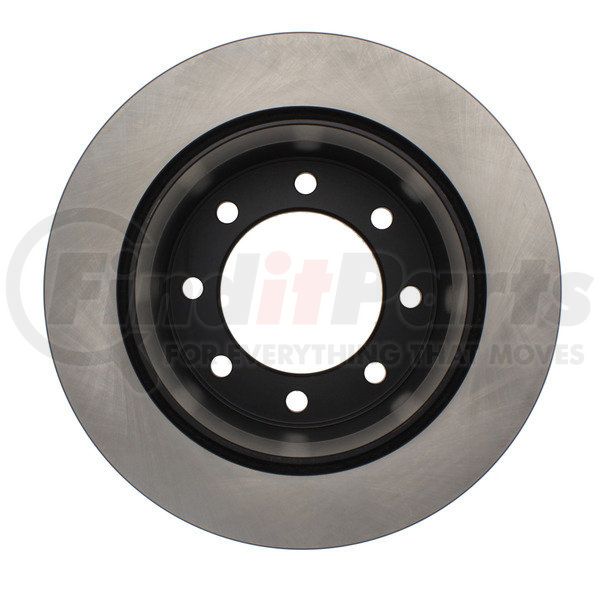

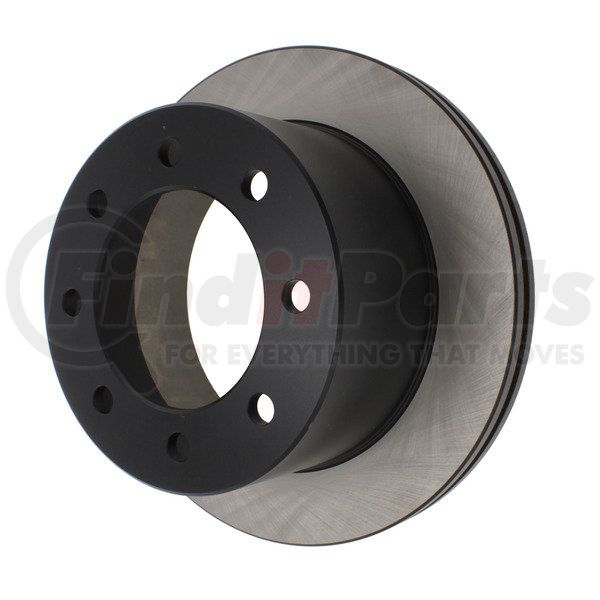

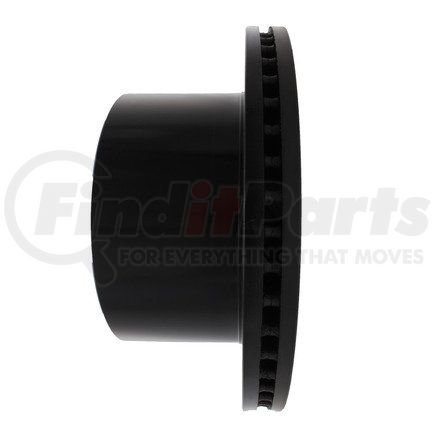

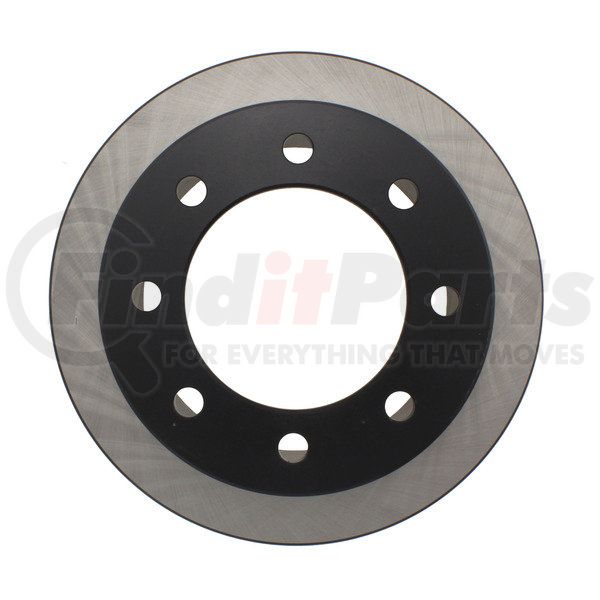

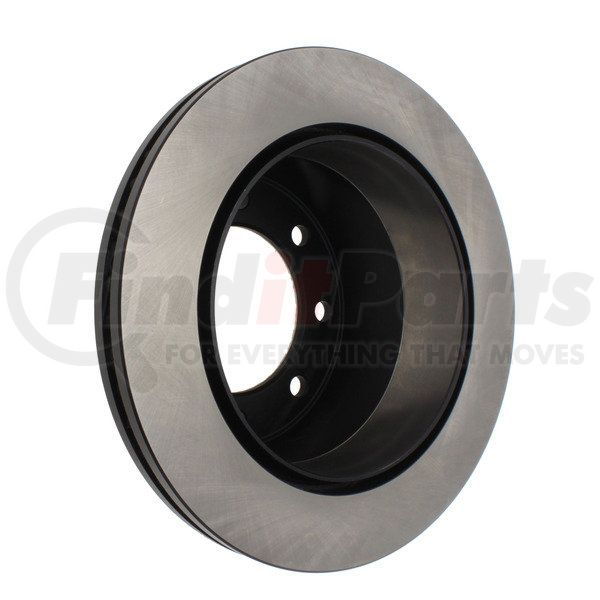

Centric Premium Brake Rotor
Application Summary
Chevrolet Express 3500 2008-2003, Silverado 3500 2007-2001, Silverado 3500 Classic 2007, Silverado 3500 HD 2010-2007, GMC Savana 3500 2008-2003, Sierra 3500 2006-2001, Sierra 3500 Classic 2007, Sierra 3500 HD 2010-2007
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
Premium rotor; rotors; Centric; brake rotor; break; brake disc; disc brake
CENTRIC 120.6605 Specifications
Product Attributes
| Discard Thickness | 28.500 MM |
| Nominal Thickness | 30.000 MM |
| Hat Finish | Coated |
| Overall Height | 131.500 MM |
| Outside Diameter | 325.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 206.200 MM |
| Bearings Included | No |
| Center Hole Diameter | 122.800 MM |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Stud/Lug Hole Quantity | 8 |
| Stud/Lug Hole Diameter | 16.400 MM |
| California Proposition 65 Text [basic] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating / DIH |
| Max Pb Drum Dia [cntrc] In | 8.177 |
| Max Pb Drum Dia [cntrc] Mm | 207.700 |
| Misc Holes [cntrc] | 0 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 13.180 |
| Weight [cntrc] Lbs | 29.000 |
| Discard Thickness | 1.122 IN |
| Overall Height | 5.177 IN |
| Disc Mounting | Floating / DIH |
| Maximum Drum Diameter | 8.177 |
| Misc Holes | 0 |
| Vane Style | Straight |
| Weight | 29.000 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890075172 |
CENTRIC 120.6605 Cross References
CENTRIC 120.6605 Fits Vehicles
- GMC Sierra 3500 Classic (2007)
- Chevrolet Silverado 3500 Classic (2007)
- GMC Sierra 3500 (2001-2006)
- GMC Sierra 3500 HD (2007-2010)
- Chevrolet Silverado 3500 (2001-2007)
- Chevrolet Silverado 3500 HD (2007-2010)
- GMC Savana 3500 (2003-2008)
- Chevrolet Express 3500 (2003-2008)
