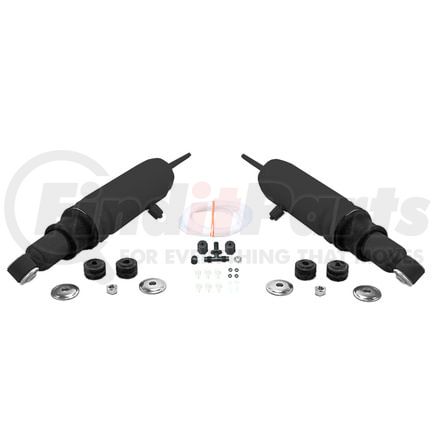

(888) 312-8812 Login SignupMONROE MA711 Max-Air Air Réglable Suspension pneumatique – Amortisseur Un paquet de 2
Tap to view 3 more
$19099
Limited availability at this price!
In Stock
Get it by Monday, Jul 20
MONROE MA711 Part Description
Manufacturer
Features & Benefits
- MAINTAIN RIDE HEIGHT UNDER LOAD -- Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner's manual)
- EASY TO ADJUST -- Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
- EXCEPTIONAL HANDLING -- Full-displaced valving on compression and extension cycles for a smooth ride
- BUILT TO LAST -- Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
MONROE MA711 Specifications
Product Attributes
| Compressed Length | 11.875 IN |
| Compressed Length | 301.6 MM |
| Extended Length | 498.5 MM |
| Extended Length | 19.625 in |
| Travel Length | 7.75 in |
| Travel Length | 196.9 MM |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 7/16" Sleeve ID X 1.3/8" Sleeve OAL |
| Lower Mount Code | LS14 |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Upper Mount Code | S4 |
| Dust Shield Included | Yes |
| Dust Shield Material | Rubber |
| Includes Bump Stop | Yes |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Parts Pack(s) | (2) P01134 |
| Part Description | Air Shock Absorber |
| Boot Included | Yes |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Grade Type | Premium |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598030788 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE MA711 Cross References
| Brand | Part Number |
|---|---|
| MA711MM, JB5Z78237A04A | |
| GABRIEL | 49122 |
| NAPA Shocks | MA711 |
MONROE MA711 Fits Vehicles
- Pontiac Firebird (1967)
- Chevrolet Camaro (1967-1969)
