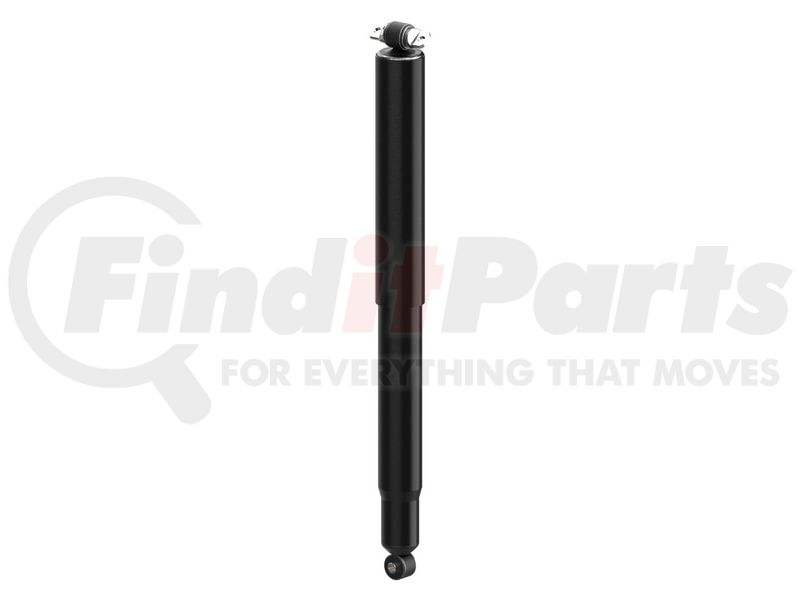

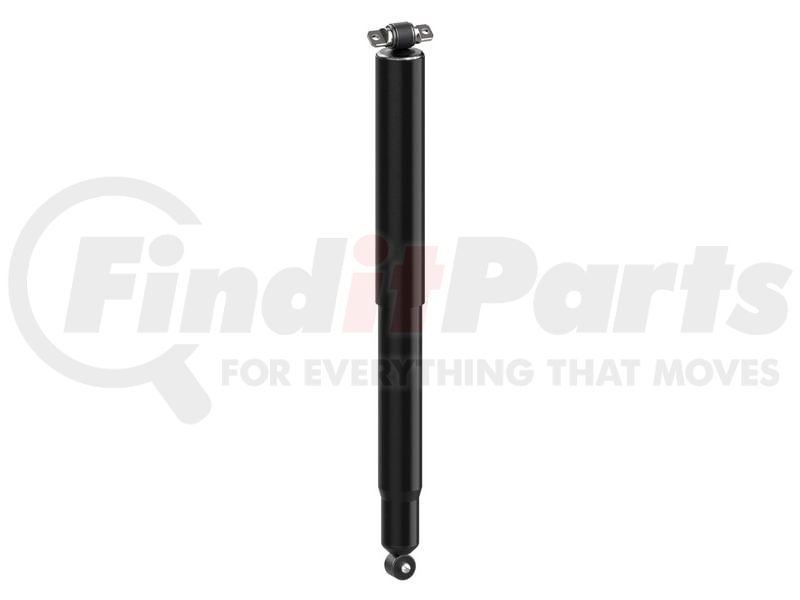

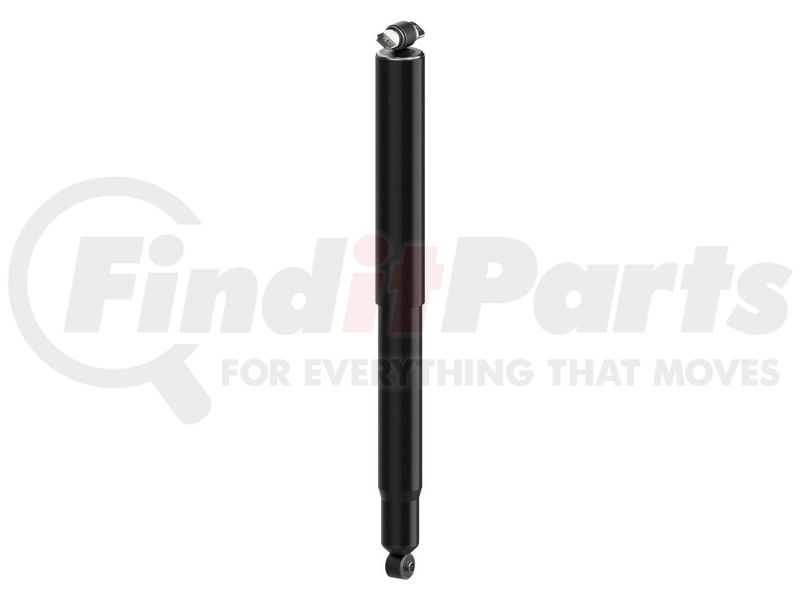

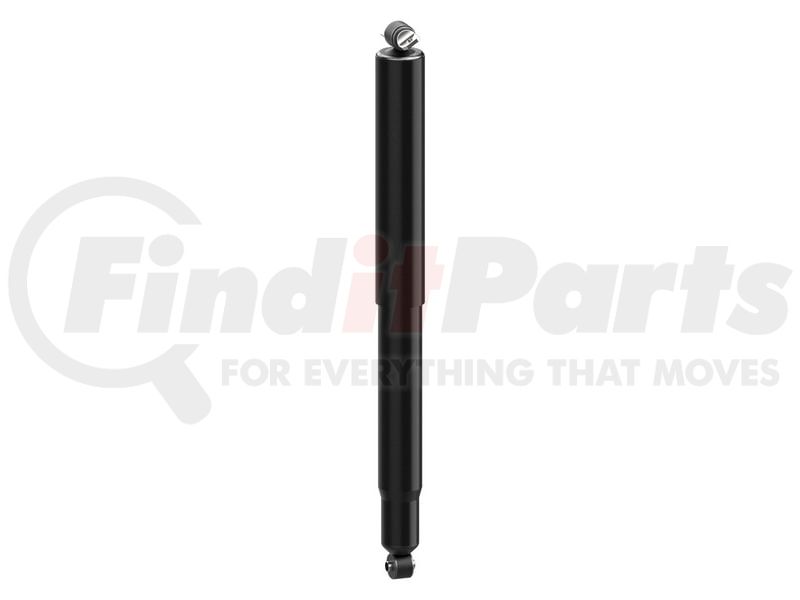

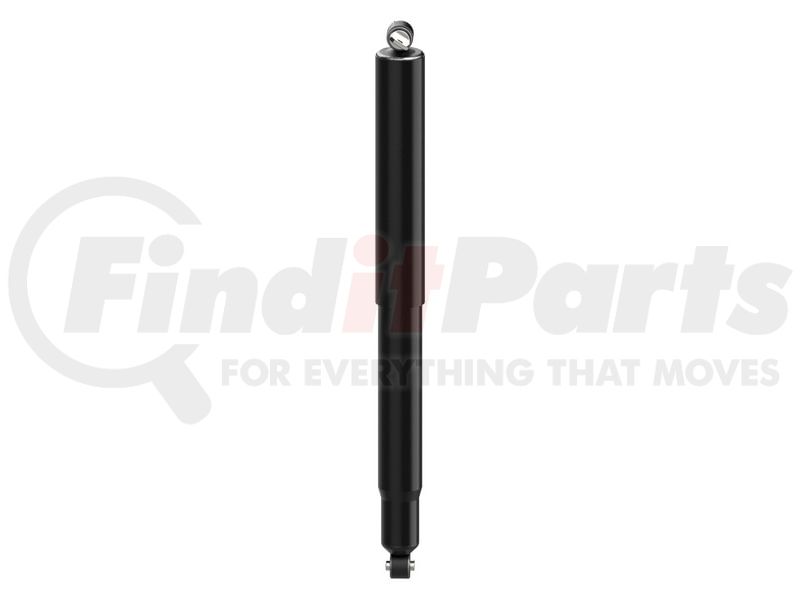

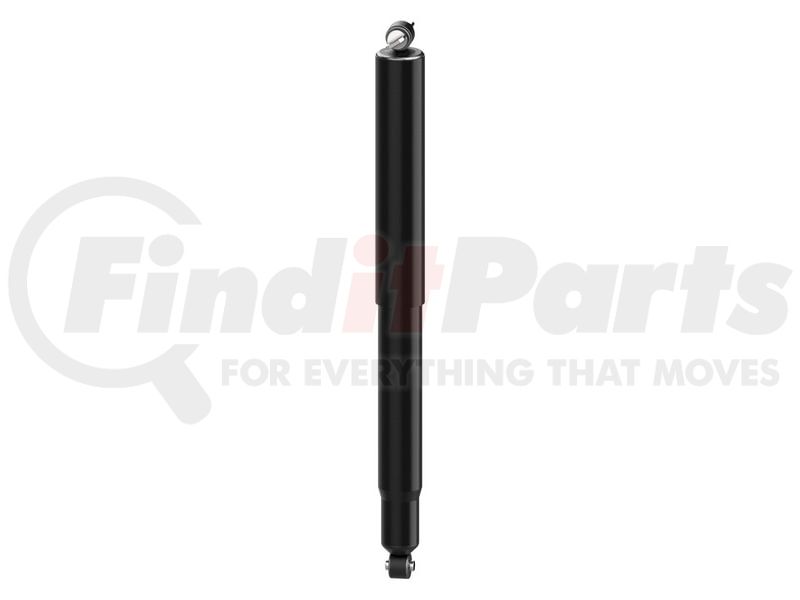

(888) 312-8812 Login SignupMONROE 911176 OESpectrum Amortisseur
Tap to view 3 more
MSRP: $124.73
$7399
Save $50.74
Limited availability at this price!
In Stock
Get it by Monday, Jun 29
MONROE 911176 Part Description
Manufacturer
Product Description
Shock Absorber
Features & Benefits
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
MONROE 911176 Specifications
Product Attributes
| Compressed Length | 16.75 IN |
| Compressed Length | 425.5 MM |
| Extended Length | 28.25 in |
| Extended Length | 717.6 MM |
| Travel Length | 11.5 in |
| Travel Length | 292.1 MM |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.1/2" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS26 |
| Upper Mount Type | Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center) |
| Upper Mount Code | XP7 |
| Shock Absorber Rod End Measuring Point | Center of Cross Pin |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | No |
| Parts Pack(s) | None |
| Body Color | Black |
| Cylinder Color | Black |
| Color | Black |
| Cylinder Finish | Painted |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01170 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598840974 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 911176 Cross References
| Brand | Part Number |
|---|---|
| 911176MM, 829352491669 | |
| Ford | 2C7Z18124AA, 2C7Z18124BA, 2C7Z18124DA, 2C7Z18124EA, 2C7Z18125AA, 2C7Z18125CA, 3U2Z18124BV, 3U2Z18124FAA, 3U2Z18124WAA, YC3Z18124AD, YC3Z18124BA, YC3Z18124CB, YC3Z18124DB, YC3Z18124EB, YC3Z18124FA, YC3Z18125AA, YC3Z18125AB, YC3Z18125AC, YC3Z18125CA, YC3Z18125DA, YC3Z18125EA |
| GABRIEL | 77837, G63837 |
| KYB | 565099, KG54331 |
| KYB AMERICA LLC. | KG54331 |
| Monroe Shocks & Struts | 34519, 210429 |
| NAPA Shocks | 911176 |
| PRT | 193818 |
| Rancho | RS5385, RS55385 |
| Sensen | 12140394 |
MONROE 911176 Fits Vehicles
- Ford Excursion (2000-2005)
