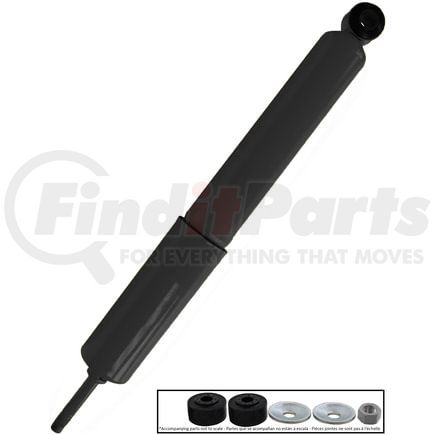

MONROE 66407 Magnum Suspension Shock Absorber

MSRP: $123.79

$65.49

Save $58.30

Limited availability at this price!

In Stock

Get it by Wednesday, Dec 17
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed before 2pm EST will ship same day

MONROE 66407 Part Description

Manufacturer

MONROE

Product Description

Magnum Suspension Shock Absorber

Features & Benefits

  • FOR HARDWORKING COMMERCIAL VEHICLES   -- Designed to handle the demands of high mileage and severe use class 3-6 trucks and buses
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while 2-in. or 2-1/4-in. reserve tube holds more fluid to improve performance (when required)
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
  • BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (on most applications)
  • LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration, and harshness under most driving conditions
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
  • BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty

MONROE 66407 Specifications

Product Attributes

Lower Mount Code LS54
Upper Mount Code S6
Dust Shield Included Yes
Includes Bump Stop No
Internal Rebound Bumper No
Hydraulic Lockout Yes
Part Description Shock Absorber
Compressed Length 13.88 IN
Dust Shield Material Metal
Extended Length 22.19 in
Gas Charged Yes
Lower Mount Type Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Parts Pack(s) P01482
Travel Length 8.31 in
Upper Mount Type Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch
Compressed Length 352.6 MM
Extended Length 563.6 MM
Travel Length 211.1 MM
Shock Absorber Rod End Measuring Point Base of Stem
Shock Absorber Body End Measuring Point Center of Loop

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598075857
VMRS Code 016008003
UNSPSC 25172011

MONROE 66407 Part Interchanges

Brand Part Number
Freightliner 1616442000, 1616486000, 1618709000, 1618710000
Sachs 315603, 471700002994, 471700002995
Gabriel 83134, 659062
FREIGHTLINER 1616442000, 1616486000, 1618709000, 1618710000
Meritor M83134
NAPA Shocks 66407
Automann A83134
Gold Shock Absorber 9161057
Bulldog HD HD12140611 , HD12140611

MONROE 66407 Fits Vehicles

  • Freightliner M2 (2005-2023)
  • Freightliner Business Class M2 (2004-2012)
  • Freightliner M2 112 (2003-2014)
  • Freightliner M2 106 (2002-2014)

MONROE 66407 Cross References
