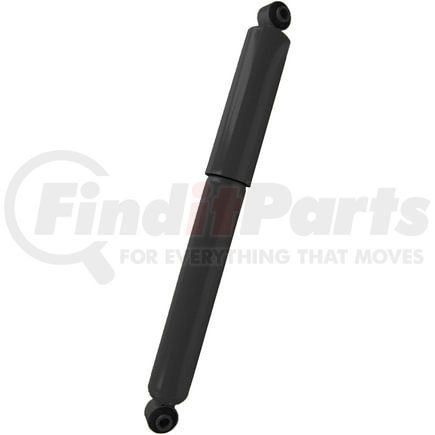

(888) 312-8812 Login SignupMagnum Suspension Shock Absorber
| Lower Mount Code | LS53 |
| Upper Mount Code | LS53 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | Yes |
| Part Description | Shock Absorber |
| Compressed Length | 15.5 IN |
| Dust Shield Material | Metal |
| Extended Length | 24.74 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 5/8"-16MM Sleeve ID X 2" Sleeve OAL |
| Parts Pack(s) | None |
| Travel Length | 9.24 in |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 5/8" Sleeve ID X 2" Sleeve OAL |
| Compressed Length | 393.7 MM |
| Extended Length | 628.4 MM |
| Travel Length | 234.7 MM |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598173874 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
| Brand | Part Number |
|---|---|
| 65487MM, MAE65487 | |
| Automann | A85927 |
| BULLDOG HD SHOCKS | HD1215-0147 |
| Bulldog HD | HD12150147 |
| Ford | 3553628C1, 3553628C2, 4C4Z18125E |
| Ford Genuine Parts | 4C4Z18125E |
| GABRIEL | 85927 |
| Gold Shock Absorber | 5001305 |
| HALDEX | SA65487 |
| INTERNATIONAL | 3553628C1, 3553628C2 |
| International Harvester (IHC) | 3553628C1 |
| MERITOR | M85927 |
| MONROE VINTAGE | 10774 |
| MOTORCRAFT | AA619 |
| Monroe Shocks & Struts | 10774 |
| NAPA Shocks | 65487 |
| Navistar | 3553628C1, 3553628C2 |
| OEM | 3553628C2, 3553628C1, 4C4Z18125E |
| PRT HD | 170249 |
