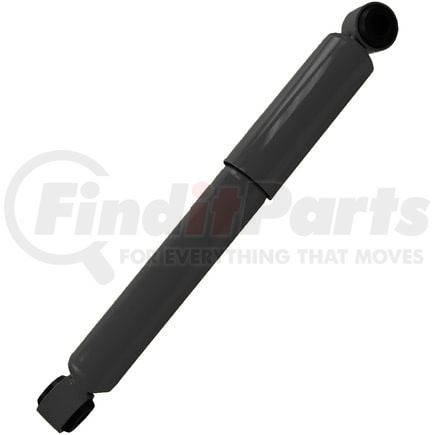

MONROE 65449 Magnum Suspension Shock Absorber

MSRP: $98.79

$70.49

Save $28.30

Limited availability at this price!

In Stock

Get it by Tuesday, Feb 10
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed before 2pm EST will ship same day

MONROE 65449 Part Description

Manufacturer

MONROE

Product Description

Magnum Suspension Shock Absorber

Features & Benefits

  • FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
  • BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
  • LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
  • BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty

MONROE 65449 Specifications

Product Attributes

Lower Mount Code L4
Upper Mount Code L4
Dust Shield Included Yes
Includes Bump Stop No
Internal Rebound Bumper No
Hydraulic Lockout Yes
Part Description Shock Absorber
Compressed Length 15.75 IN
Dust Shield Material Metal
Extended Length 23.48 in
Gas Charged Yes
Lower Mount Type Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL
Parts Pack(s) None
Travel Length 7.73 in
Upper Mount Type Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL
Compressed Length 400 MM
Extended Length 596.4 MM
Travel Length 196.3 MM
Shock Absorber Rod End Measuring Point Center of Loop
Shock Absorber Body End Measuring Point Center of Loop
Lower Mount Type Loop (Eyelet) Bushing
Lower Mount Code L4
Upper Mount Code L4
Mounting Hardware Included No
Grade Type Premium
Active or Passive Suspension Passive
Adjustable Compression No
Adjustable Rebound No
Adjustable Ride Height No

Additional Information

MSDS Sheet Number 01164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708800050
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598173492
VMRS Code 016008003
UNSPSC 25172011

MONROE 65449 Cross References

BrandPart Number
65449MM
ACDELCO50714
BULLDOG HD SHOCKSHD1116-0046, HD1215-0171
Blue Bird3000614966
CHEVROLET4975516
FCSF347314
FLXIBLE TRANSIT BUS636710
Freightliner680009
GABRIEL85702, 85736
GM4975516
GMC4975516
General Motors4975516
HALDEXSA65449
KYB341615
MERITORM85702
MONROE VINTAGE74408, OE10068
Monroe Shocks & Struts74408, OE10068
NAPA Shocks65449
OEM680009, 3000614966
POWER10 PARTSSSA-85736
REYCO GRANNING1623001
VOLVO / WHITE / GMC3919965
Volvo GM Heavy Truck3919965
WESTERN STAR359013410
WESTERN UNIT101030

MONROE 65449 Fits Vehicles

  • Freightliner Classic (2001-2011)
  • Freightliner Classic XL (2001-2009)
  • Crane Carrier Century II (1987-1999)
  • Crane Carrier Centurion (1987, 1989-2009)
