MONROE 5948 Part Description
Manufacturer
Product Description

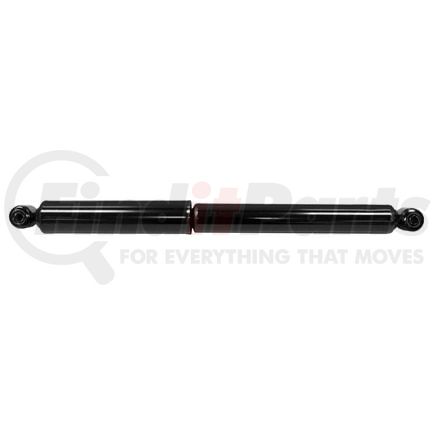

OESpectrum Suspension Shock Absorber
Features & Benefits
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
- BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee
MONROE 5948 Specifications
Product Attributes
| Lower Mount Code | LS7 |
| Upper Mount Code | LS7 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 14 IN |
| Dust Shield Material | Metal |
| Extended Length | 22.75 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 10MM Sleeve ID X 1.5/8" Sleeve OAL |
| Parts Pack(s) | None |
| Travel Length | 8.75 in |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 10MM Sleeve ID X 41.28MM Sleeve OAL |
| Compressed Length | 355.6 MM |
| Extended Length | 577.9 MM |
| Travel Length | 222.3 MM |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS7 |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 10MM Sleeve ID X 41.28MM Sleeve OAL |
| Upper Mount Code | LS7 |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598040954 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 5948 Cross References
| Brand | Part Number |
|---|---|
| 5948ST, GD9Z54044D90HC | |
| AUTOZONE | TS32-30732B |
| AutoZone | TS3230732B |
| Chrysler | 4228378, 4228379, 4228764, 4228765, 4228766, 4228767, 4322972, 4322973, 4421012, 4421013, 4421168, 4421324, 4421325, 4449412, 4449413, 4449624, 4449625, 4626008, 4626009, 4694774, 4694775, SG23131 |
| Dodge | 4228378, 4228379, 4228764, 42287645, 4228765, 4228766, 42287667, 4228767, 4322972, 4322973, 4421168, 4421324, 4421325, 4449018, 4449624, 4449625, 4626008, 4626009, 4694774, 4694775, SG23131 |
| GABRIEL | 69808 |
| KYB | 343164, KG5563 |
| NAPA Shocks | 5948 |
MONROE 5948 Fits Vehicles
- Chrysler Dynasty (1988-1993)
- Dodge Dynasty (1988-1993)
- Chrysler New Yorker (1988-1993)
