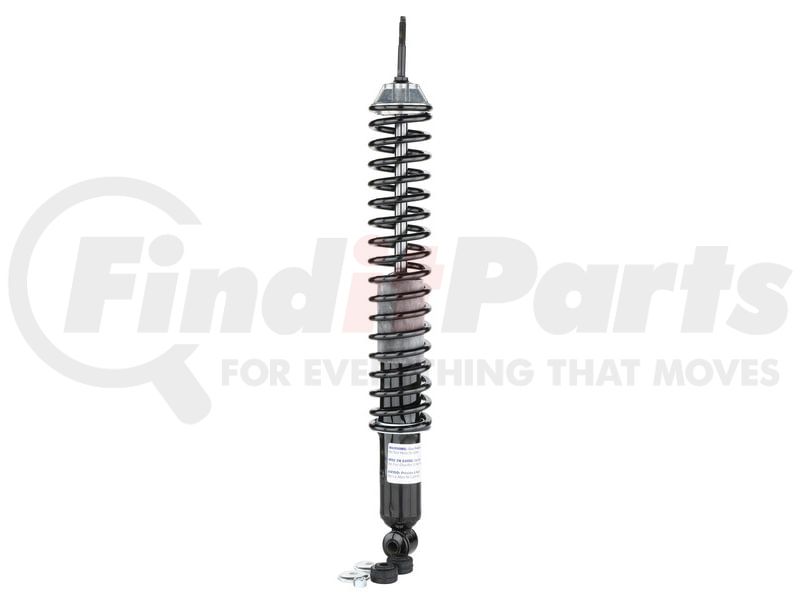

(888) 312-8812 Login SignupMONROE 58625 Load Adjusting Rear Suspension Shock Absorber and Coil Spring Assembly Pack of 2
Tap to view 11 more
MSRP: $290.18
$19899
Save $91.19
Limited availability at this price!
In Stock
Get it by Thursday, Jul 30
MONROE 58625 Part Description
Manufacturer
Product Description

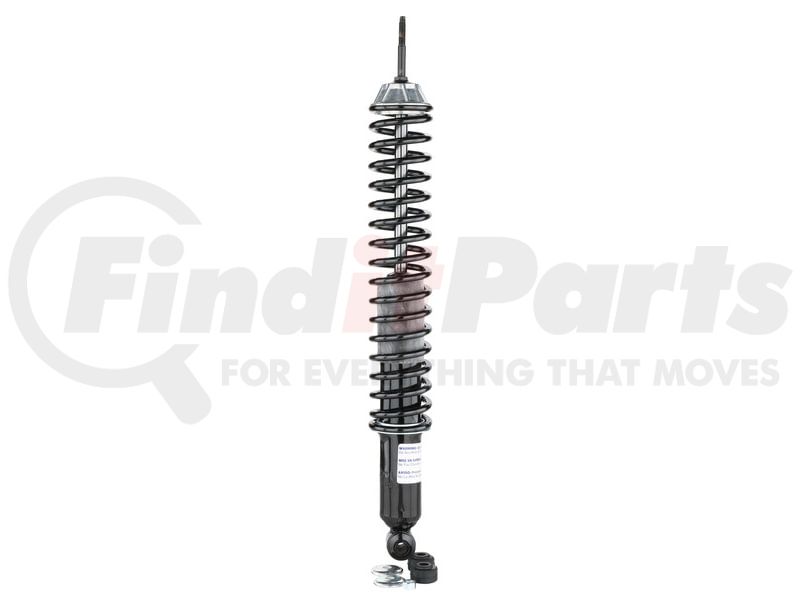

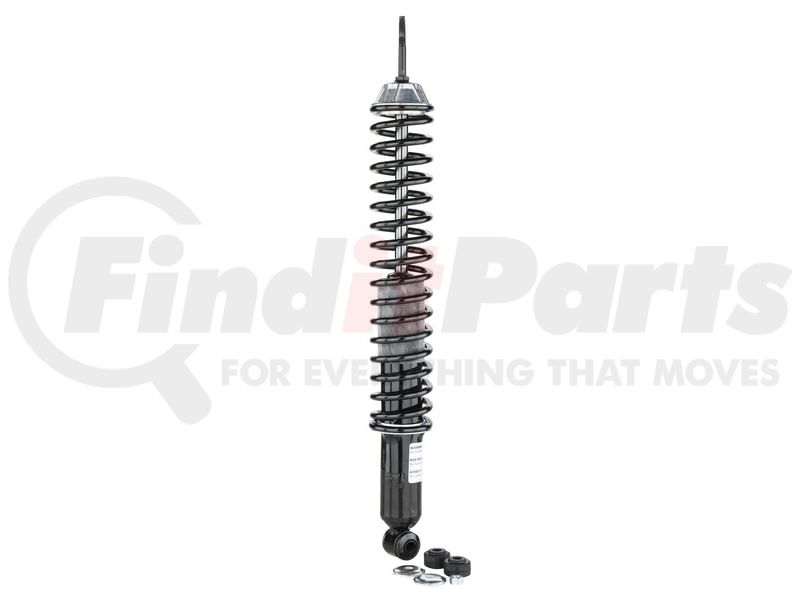

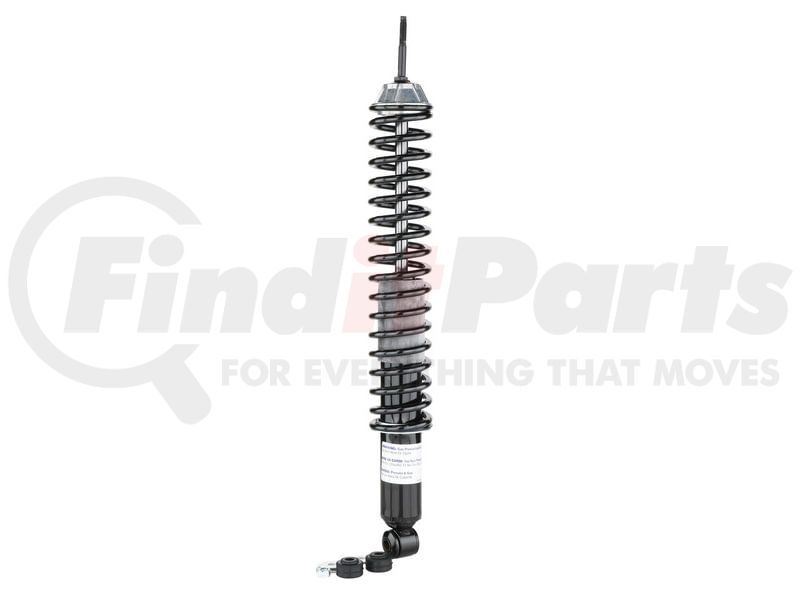

Load Adjusting Rear Suspension Shock Absorber and Coil Spring Assembly Pack of 2
Features & Benefits
- REDUCES SAG UNDER LOAD -- Ideal for occasionally hauling or towing varying loads; heavy gauge, calibrated coil spring reduces sag when loaded up to 1,200 lbs. (capacity limited by suspension, tires and transmission; see owner's manual)
- EXCEPTIONAL HANDLING -- Tuned specifically for each application, full-displaced valving automatically adjusts to road extremes to provide ride consistency
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and PTFE-banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces
- LONGER SERVICE LIFE -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while heavy-duty nitrocarburized rod delivers long life
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
MONROE 58625 Specifications
Product Attributes
| Compressed Length | 339.7 MM |
| Compressed Length | 13.38 IN |
| Extended Length | 22 in |
| Extended Length | 562 MM |
| Travel Length | 222.3 MM |
| Travel Length | 8.75 in |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.1/2" Sleeve OAL |
| Lower Mount Code | LS26 |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Upper Mount Code | S4 |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Parts Pack(s) | P01135 |
| Part Description | Shock Absorber and Coil Spring Assembly |
| Damping Type | Oil |
| Grade Type | Premium |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598010322 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 58625 Cross References
| Brand | Part Number |
|---|---|
| 58625ST, FULTAF1050RDS | |
| FCS | SC00043 |
| Ford | 3U2Z18125RA, 8C2Z18124A, 8C2Z18124B, 8C2Z18125A, 8C2Z18125B, F2UZ18124B, F2UZ18124D, F2UZ18125D, F4UZ18125C, F5UZ18124A, F5UZ18124B, F5UZ18125A, F7UZ18125AA, F7UZ18125AB, F8AZ18125BB |
| Gold Shock Absorber | 5001326 |
| NAPA Shocks | 58625 |
MONROE 58625 Fits Vehicles
- Ford E-150 Econoline (2008)
- Ford E-150 (2008-2014)
- Ford E-250 (2003-2006)
- Ford E-250 Econoline (1992-2002)
