MONROE part description

Product Description

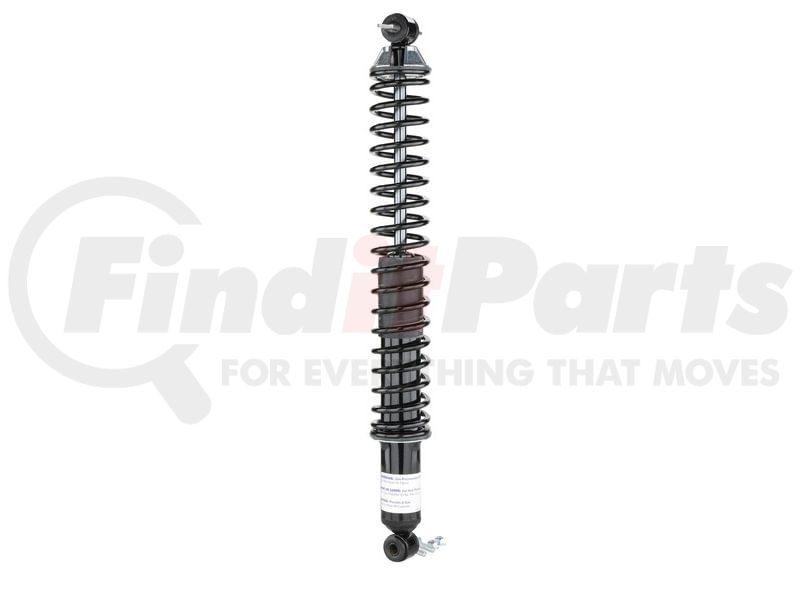

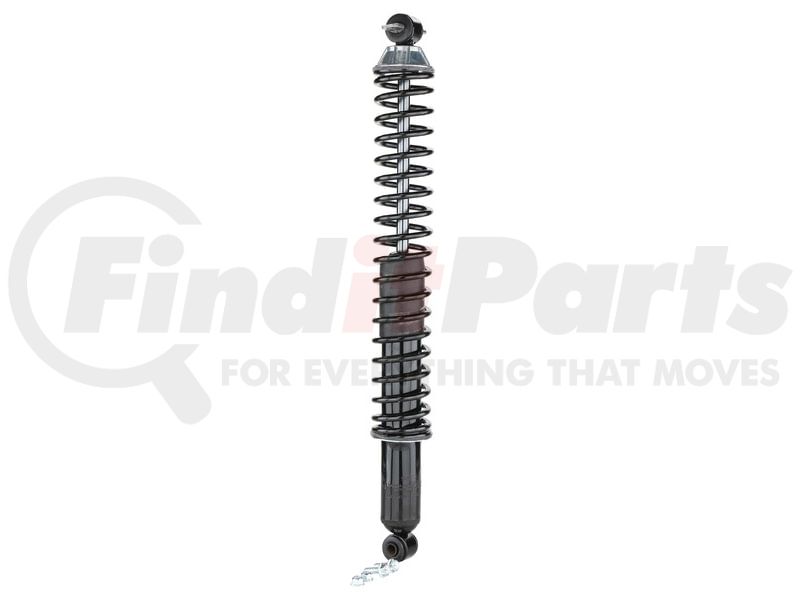

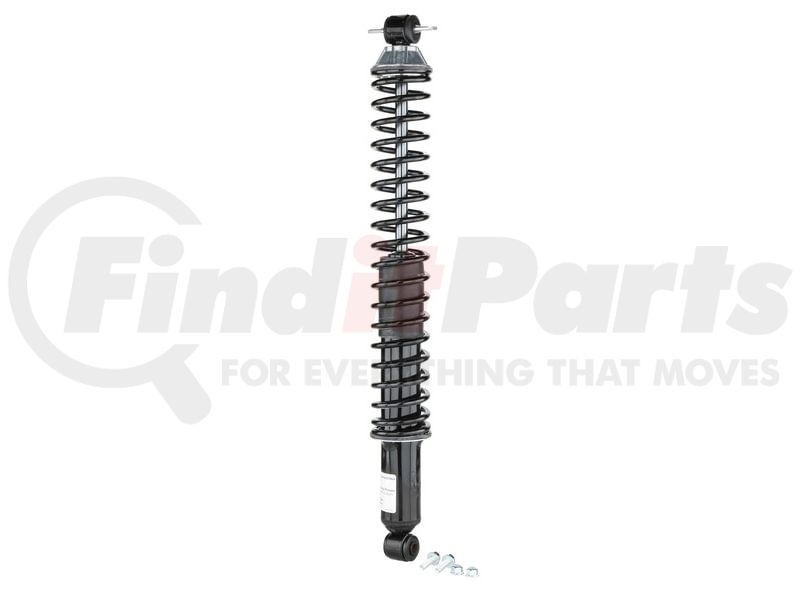

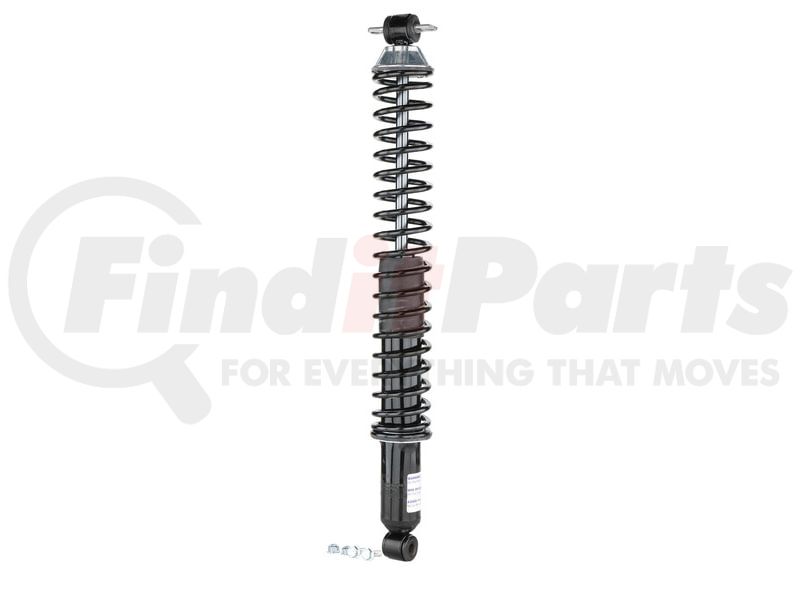

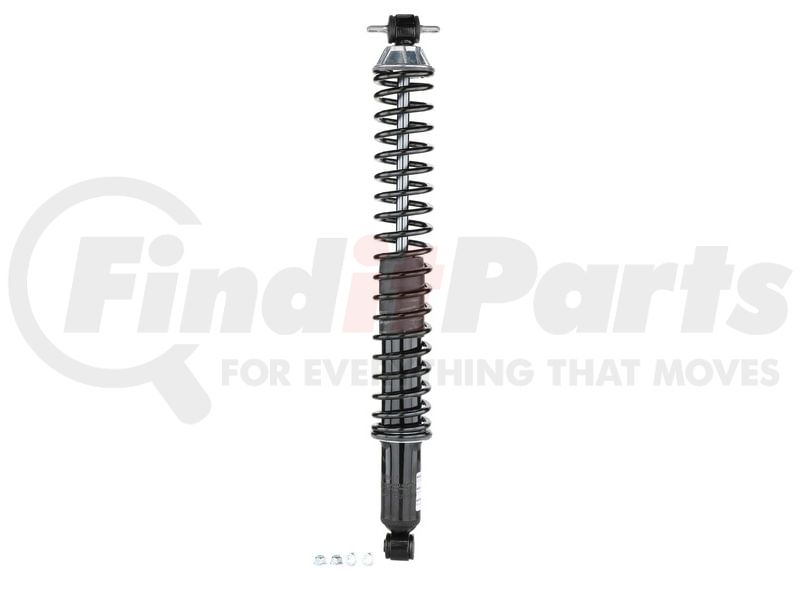

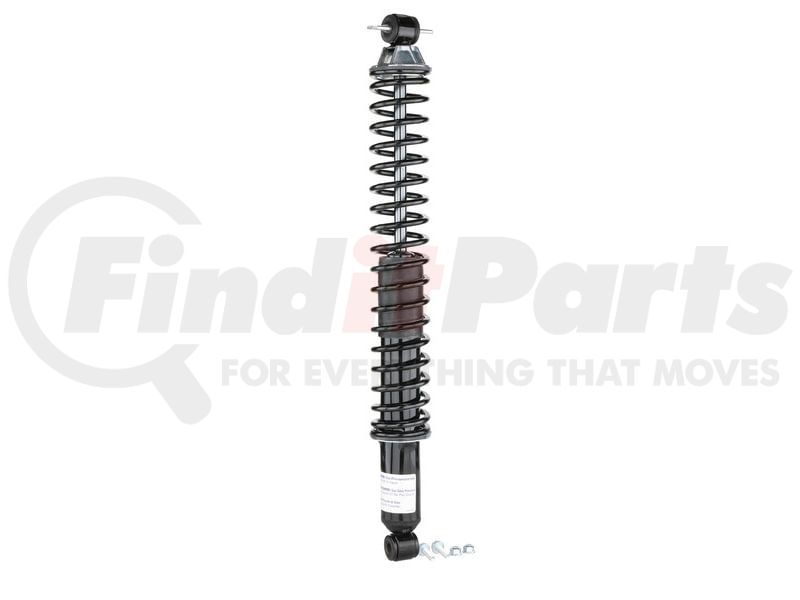

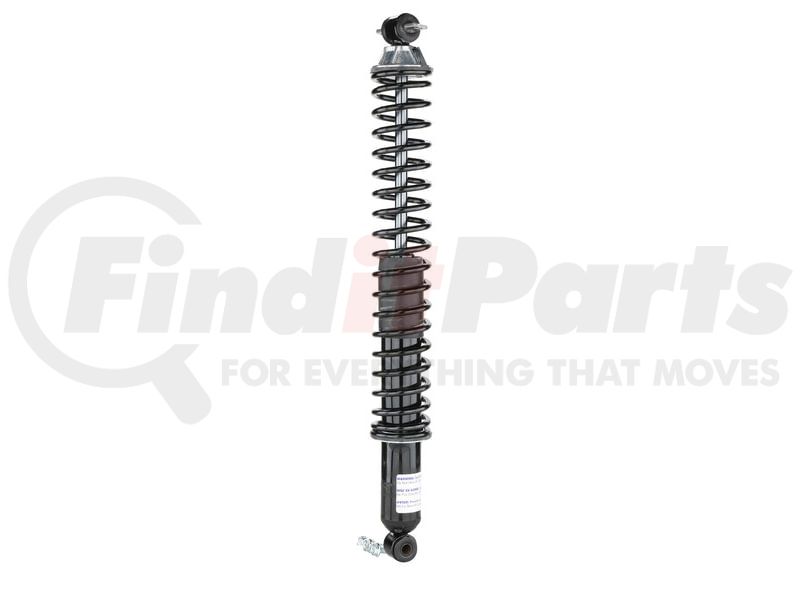

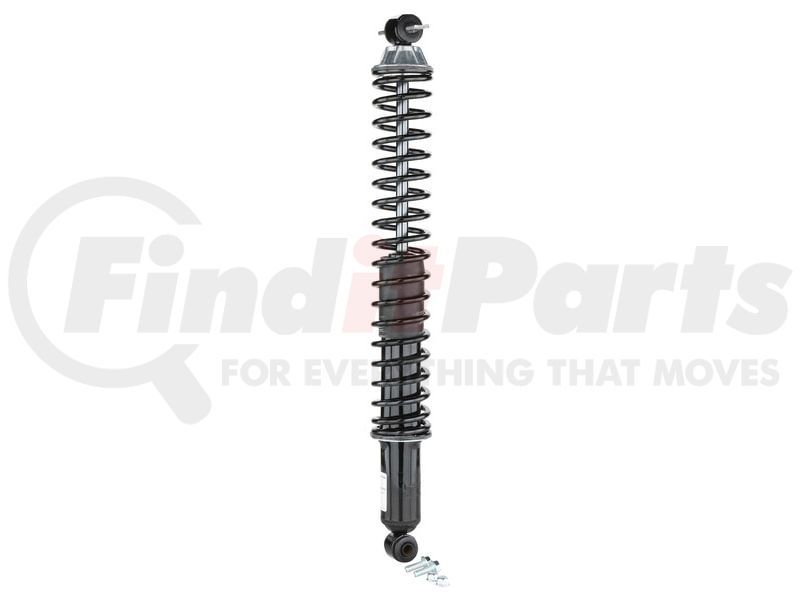

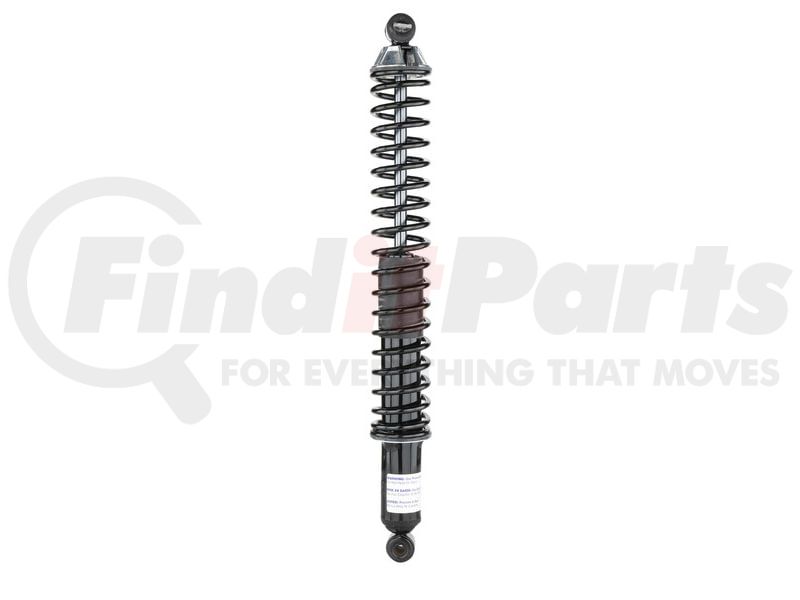

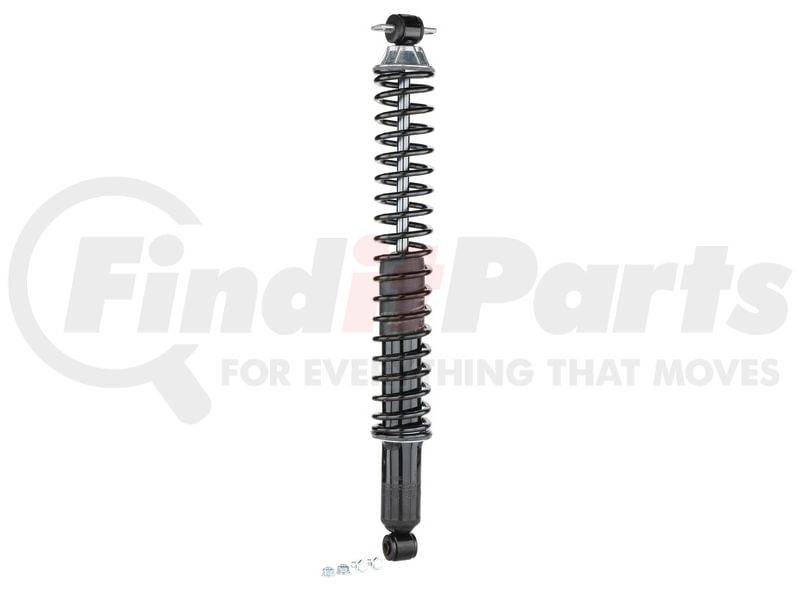

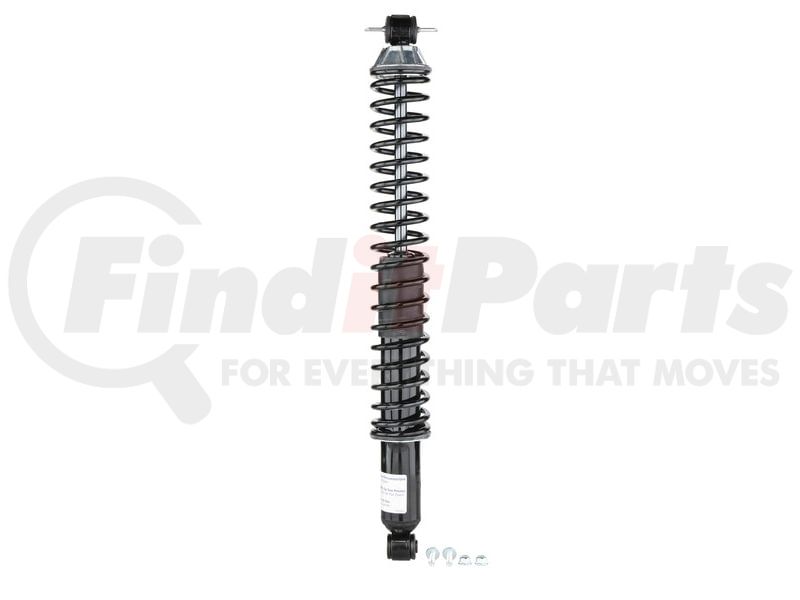

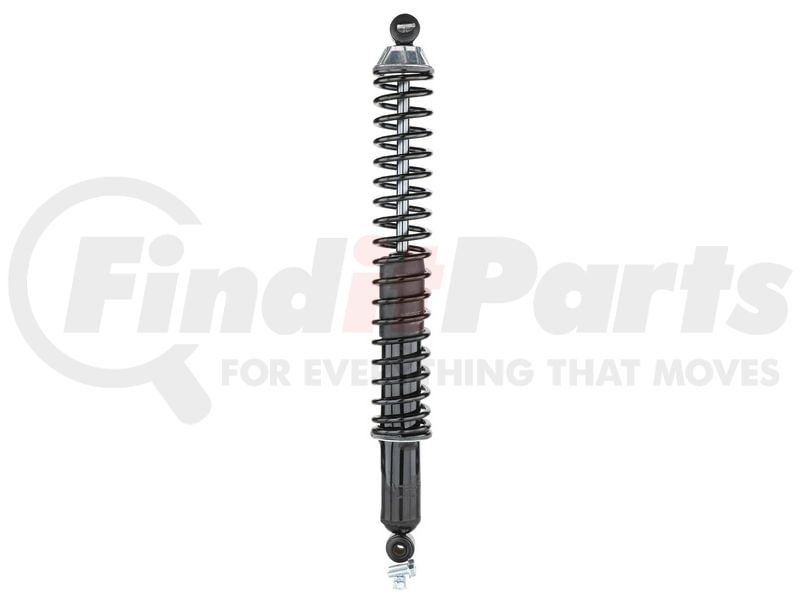

Load Adjusting Suspension Shock Absorber and Coil Spring Assembly Pack of 2

Features & Benefits

  • REDUCES SAG UNDER LOAD -- Ideal for occasionally hauling or towing varying loads; heavy gauge, calibrated coil spring reduces sag when loaded up to 1,200 lbs. (capacity limited by suspension, tires and transmission; see owner's manual)
  • EXCEPTIONAL HANDLING -- Tuned specifically for each application, full-displaced valving automatically adjusts to road extremes to provide ride consistency
  • CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and PTFE-banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces
  • LONGER SERVICE LIFE -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while heavy-duty nitrocarburized rod delivers long life
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade

Product Attributes

9791 LS26
Upper Mount Code XP7
9783 No
Hydraulic Lockout No
Parts Pack(s) P00941
Part Description Shock Absorber and Coil Spring Assembly
Compressed Length 15.5 IN
Dust Shield Included Yes
Dust Shield Material Metal
Extended Length 25.125 in
9908 Yes
Lower Mount Type Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.1/2" Sleeve OAL
Travel Length 9.625 IN
Upper Mount Type Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center)
Compressed Length 393.7 MM
Extended Length 638.2 MM
Travel Length 9.625 in
Travel Length 244.5 MM
9789 XP7
Dust Shield Included Yes
Shock Absorber Rod End Measuring Point Center of Cross Pin
Shock Absorber Body End Measuring Point Center of Loop

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598010247
VMRS Code 016008003
UNSPSC 25172011

Part Interchanges

MONROE 58617 Cross Reference

We have 5 alternatives for the 58617 by MONROE:

Fits Vehicles

  • Ford Explorer Sport (2001-2003)
  • Ford Explorer Sport Trac (2001-2005)
  • Mazda Navajo (1991-1994)
  • Mercury Mountaineer (1997-2000)
  • Ford Explorer (1991-2001)
