MONROE 58427 Part Description
Manufacturer
Product Description

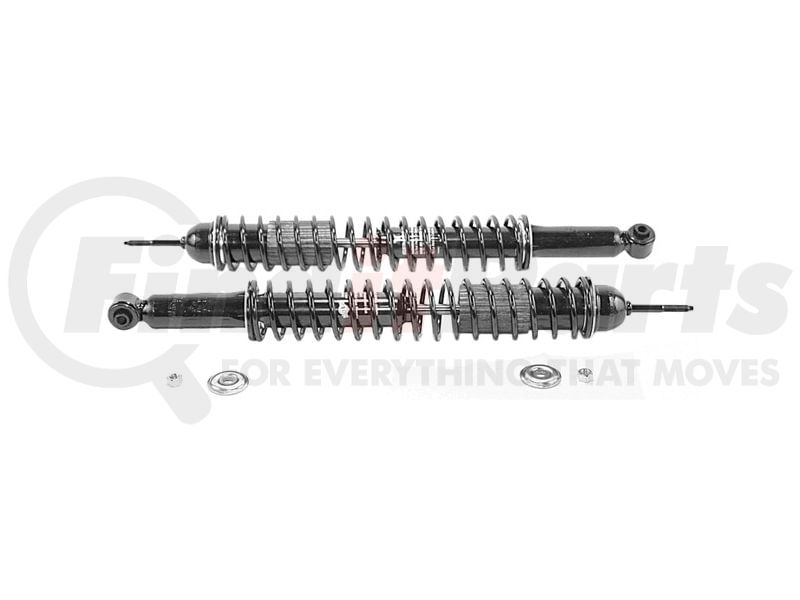

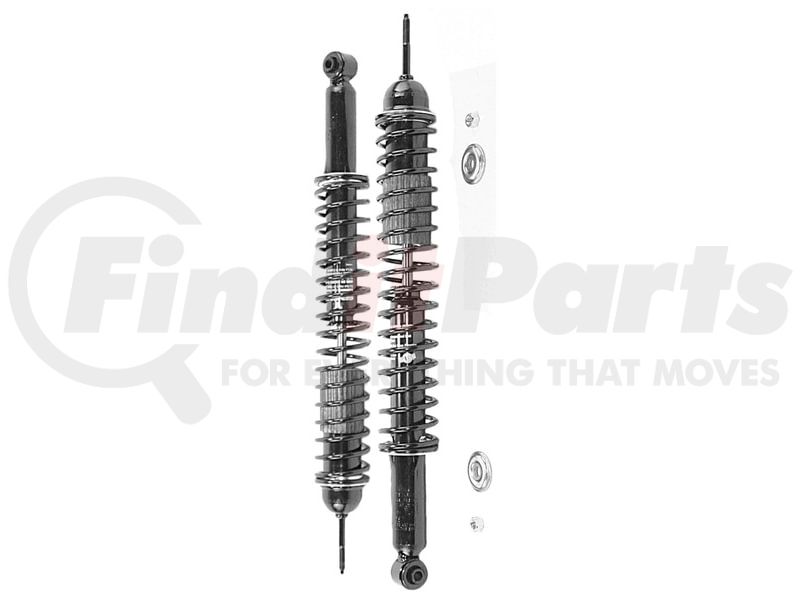

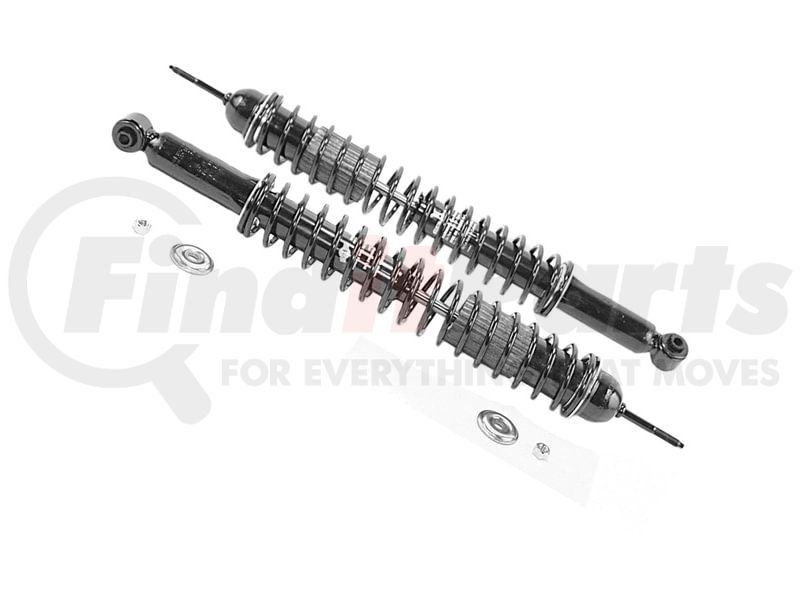

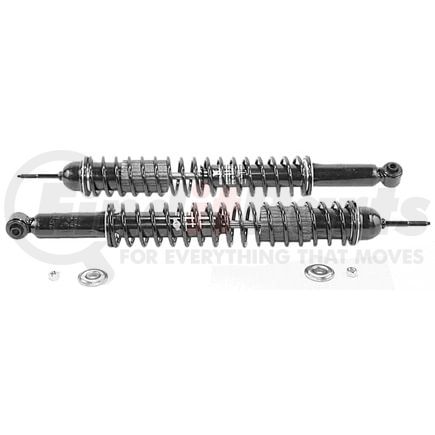

Monroe Load Adjusting Shock Absorber
Application Summary
1996-1982 Buick Century Rear, 1996-1982 Oldsmobile Cutlass Ciera Rear, 1990-1982 Chevrolet Celebrity Rear, 1983-1980 Chevrolet Citation Rear, 1996-1990 Chevrolet Lumina APV Rear, 1991-1982 Pontiac 6000 Rear, 1996-1990 Pontiac Trans Sport Rear, 1996-1990 Oldsmobile Silhouette Rear, 1985-1980 Buick Skylark Rear, 1994-1987 Oldsmobile Cutlass Cruiser Rear, 1985-1984 Chevrolet Citation II Rear, 1984-1980 Oldsmobile Omega Rear, 1984-1980 Pontiac Phoenix Rear
Monroe Load Adjusting Shock Absorber
Specifications
- Upper Mounting Code :Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
- Lower Mounting Code :Loop Bushing& Sleeve Mount - 10MM Sleeve ID X 1.5/8" Sleeve OAL
- Compressed Length :14.250"
- Extended Length :21.500"
- Travel Length :7.250"
- Spring (Rate) :25
- Dust Shield :Yes
- Parts Pack(s) :P1278
- Extended Hydraulic Lockout :No
- Compressed Hydraulic Lockout :No
- Extended Bumper Stop :No
- Compressed Bumper Stop :Yes
- Dust Shield Material :Metal
- The Monroe Sensa-Trac load adjusting shock absorber with PSD (position sensitive damping) and the Safe Tech system combines our exclusive precision tapered grooves in the pressure tube with application engineered valving and Fluon banded piston to improve the ride, handling, and safety characteristics of the vehicle. These units also include a heavy gauge calibrated spring for extra control and comfort. A new pair of Monroe Sensa-Trac load adjusting shock absorbers can assist in maintaining ride height when up to 1,200 lbs* of additional weight is loaded. These units are ideal for light trucks that carry varying loads or tow trailers. *Capacity is limited by vehicle suspension, tires and transmission. See vehicle owner's manual for details.
- All Weather Fluid: Contains special modifiers to reduce friction and ensure smooth rod reaction.
- Full Displaced Valving: Tuned specifically for each application, this valving automatically adjusts to road extremes to provide consistency and ride
- Fluon Banded Piston: The fluon band provides consistent sealing between the piston and pressure tube which delivers better control and increased durability.
- Heavy Gauge Calibrated Coil Spring: Computer designed for maximum performance without an increase in ride harshness.
- Unique Groove Tube - PSD: Precision tapered grooves in the pressure tube perform like an additional stage of valving for optimum ride tuning.
- 5/8" Piston Rod: Heavy-duty nitrocarburized rod for long service life. On non-dust shield units only
- Nitrogen Gas Charged: For improved ride and handling, helps maintain tire to road contact by reducing aeration.
MONROE 58427 Specifications
Product Attributes
| Upper Mounting Code | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Lower Mounting Code | Loop Bushing & Sleeve Mount - 10MM Sleeve ID X 1.5/8" Sleeve OAL |
| Compressed Length | --- - 14.250" |
| Extended Length | --- - 21.500" |
| Travel Length | --- - 7.250" |
| Spring (Rate) | --- - '25' |
| Dust Shield | --- - 'Yes' |
| Parts Pack(s) | --- - P1278 |
| Extended Hydraulic Lockout | No |
| Extended Bumper Stop | No |
| Compressed Bumper Stop | Yes |
| Dust Shield Material | --- - Metal |
| Feature Point | --- - ! 'Special Seal: ''Self-lubricating'' fluid seal designed to retain gas without excessive wear or friction.' |
| Most Popular Make / Model | Buick Century |
| Most Popular Year | 1995 |
| Min Year Covered | 1980 |
| Max Year Covered | 1996 |
| Total Part VIO | 315255 |
| Product Grade | Economy |
| Accesorio(s) | P01278 |
| Bloqueo hidráulico extendido | No |
| Compressed Length | 14.250 IN |
| Cubre polvo | Yes |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Extended Length | 21.500 in |
| Parts Pack | P01278 |
| Tipo de Montura Inferior | Loop Bushing & Sleeve Mount - 10MM Sleeve ID X 1.5/8" Sleeve OAL |
| Tipo de Montura Superior | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Tope de rebote comprimido | Yes |
| Tope de rebote extendido | No |
| Travel Length | 7.250 in |
MONROE 58427 Cross References
| Brand | Part Number |
|---|---|
| 58427ST, FULFRO16210CP | |
| Buick | 22046418, 22046419, 22046421, 22046422, 22046424, 22047902, 22047903, 22048010, 22064336, 22064487, 22064488, 22064494, 22064495, 22064610, 22065229 |
| Chevrolet | 22046418, 22046419, 22046420, 22047901, 22047902, 22047903, 22048010, 22064123, 22064136, 22064336, 22064361, 22064487, 22064488, 22064703, 22065229, 4993565 |
| Oldsmobile | 22047903, 22048010, 22064123, 22064136, 22064336, 22064361, 22064487, 22064488, 22064494, 22064495, 22064610, 22064703, 22065229, 88945450, 88945849, 88946659 |
| Pontiac | 22047901, 22047903, 22048010, 22064113, 22064114, 22064123, 22064136, 22064336, 22064361, 22064487, 22064488, 22064494, 22064495, 22064610, 22064703, 22065229, 4993585, 4993586, 88945450, 88945849, 88946659 |
MONROE 58427 Customer Reviews
No reviews yet
Be the first to review this product!
MONROE 58427 Manufacturer Information
Monroe products are built for the road ahead. Since its founding in 1916, Monroe® has been known for its world-class solutions that are precision-engineered and meticulously tested with the specific vehicle's ride and handling profile in mind. As the leading supplier of Original Equipment ride control products to global automotive manufacturers, Monroe helped establish the benchmarks of handling and ride excellence in every stage of a vehicle's life. Whether you're upgrading your truck, converting its suspension, or restoring its original state, Monroe has got you covered. It offers the best-in-class shocks, strut assemblies, steering stabilizers, conversion kits, lift support, and many other suspension components that will help enhance your safety and driving experience.
MONROE 58427 Questions & Answers
No questions yet
Be the first to ask a question about this product!
