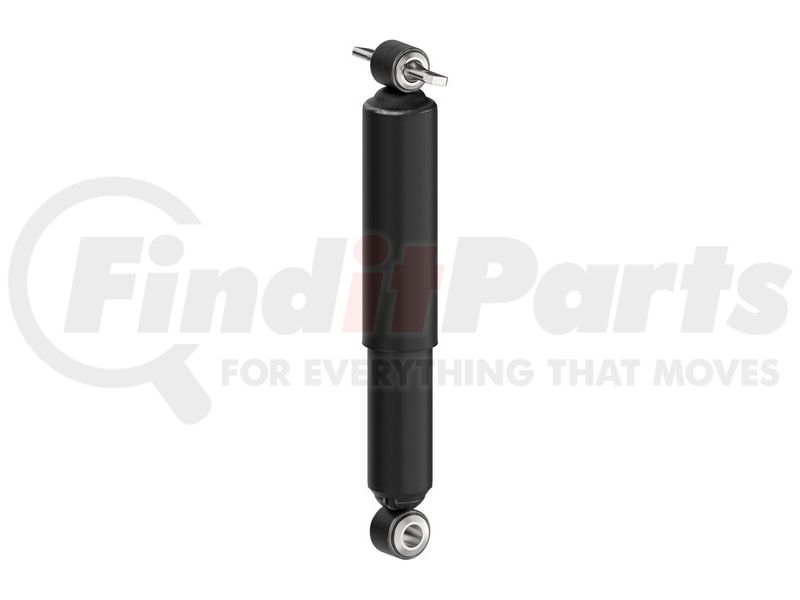

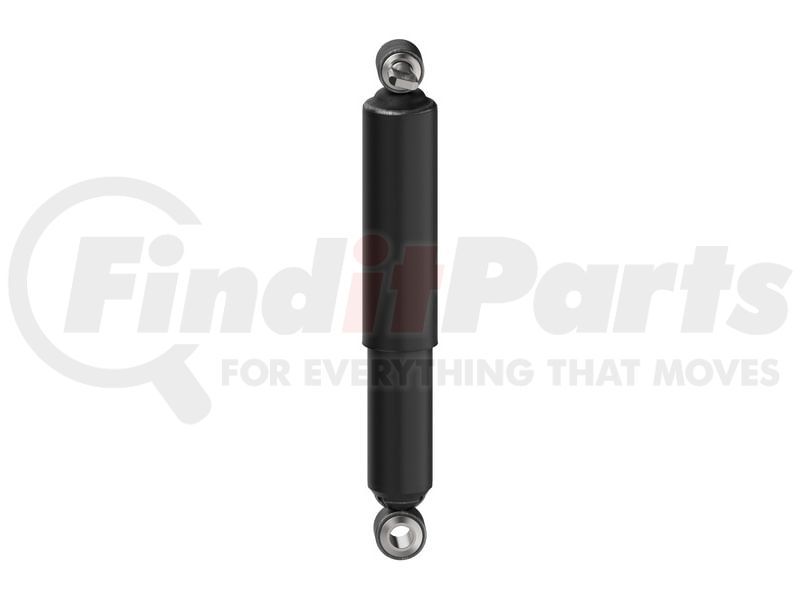

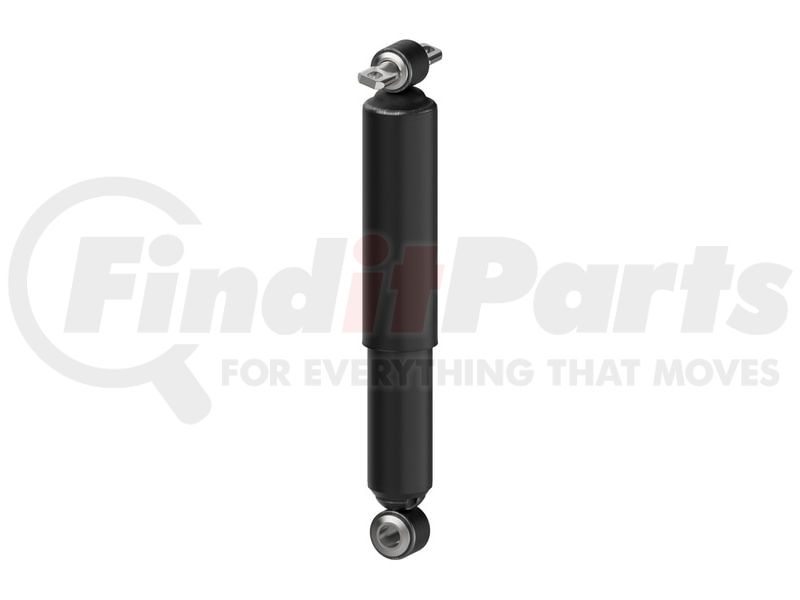

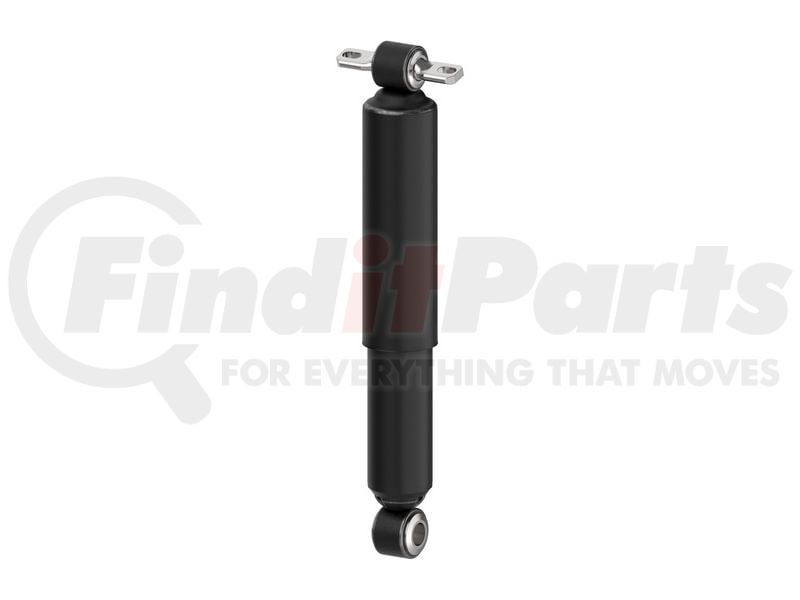

(888) 312-8812 Login SignupMONROE 5802 OESpectrum Amortiguador
Tap to view 5 more
MSRP: $52.38
$3499
Save $17.39
Limited availability at this price!
In Stock
Get it by Friday, Jun 12

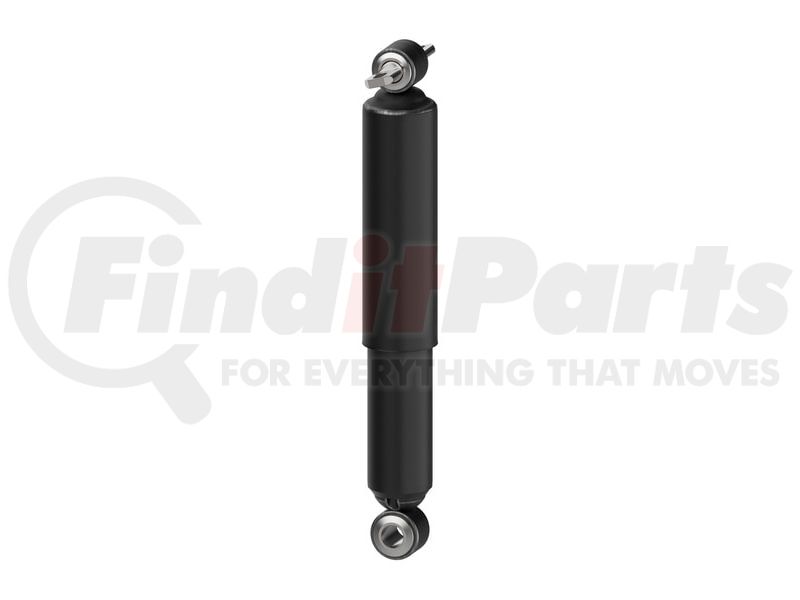

MONROE 5802 Part Description
Manufacturer
Product Description
Shock Absorber
Features & Benefits
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
MONROE 5802 Specifications
Product Attributes
| Compressed Length | 12.75 IN |
| Compressed Length | 323.8 MM |
| Extended Length | 20.875 in |
| Extended Length | 530.2 MM |
| Travel Length | 8.125 in |
| Travel Length | 206.4 MM |
| Lower Mount Type | Loop Bushing and Cantilever Pin Mount - 1/2" Stud Diameter X 1 5/16" Stud Length (Center of Loop to Frame) |
| Lower Mount Type | Cantilever |
| Lower Mount Code | L1/CP3 |
| Upper Mount Type | Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center) |
| Upper Mount Code | XP7 |
| Shock Absorber Rod End Measuring Point | Center of Cross Pin |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | Yes |
| Parts Pack(s) | P00576 |
| Body Color | Black |
| Cylinder Color | Black |
| Color | Black |
| Cylinder Finish | Painted |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01170 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598040015 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 5802 Cross References
| Brand | Part Number |
|---|---|
| 5802ST, GD9Z17D957CPTM | |
| ACDelco | 53020 |
| AUTOZONE | TS34-32202B, TS32-30002B |
| AutoZone | TS3230002B, TS3432202B |
| Buick | 22003121, 22003254, 22012059, 22012060, 22046429, 22046430, 22046431, 22046432, 22046439, 22046440, 22064298, 22064299, 22064400, 22064401, 22064433, 22064434, 22064435, 22064436, 22064601, 22064603, 22064630, 22181553, 88945177, 88945188, 88946013, 88946032, 88946558, 88946562, 88945170 |
| Cadillac | 22046498, 22064046, 22064047, 22064183, 22064311, 22064425, 22064426, 22181553, 22181559 |
| Chevrolet | 22046423, 22046424, 22046426, 22046427, 22046428, 22046431, 22046432, 22046439, 22046440, 22046479, 22046480, 22046810, 22064040, 22064041, 22064042, 22064043, 22064044, 22064045, 22064100, 22064101, 22064264, 22064265, 22064298, 22064299, 22064400, 22064401, 22064412, 22064413, 22064421, 22064422, 22064433, 22064434, 22064435, 22064499, 22064600, 22064603, 22064618, 22064630, 22064856, 22065206, 22065220, 22140148, 22140213, 22181553, 22181559, 88945177, 88945188, 22065228 |
| Duralast | TS3230002B, TS3432202B |
| FCS | 342541, 342542, 341520, 341540 |
| FCS AUTO PARTS | 342542, 342541 |
| GABRIEL | 69724, 69604 |
| KYB | 343130, 343157, KG5521, 343149, KG5506, KG5504, KG5548, KG5507, 343132, 343135 |
| KYB AMERICA LLC. | KG5504 |
| MasterPro Shocks and Struts | GM121 |
| Monroe Shocks & Struts | 210115 |
| NAPA | SH81492 |
| NAPA Proformer | SH81492 |
| NAPA Shocks | 5802 |
| Oldsmobile | 22046431, 22046432, 22046433, 22046434, 22046439, 22046440, 22064554, 22065220, 22065228, 22074850 |
| PRT | 170464 |
| Pontiac | 22046424, 22046427, 22046431, 22046432, 22046433, 22046434, 22046439, 22046440, 22046479, 22046480, 22064040, 22064041, 22065228, 88945170 |
| Sensen | 12130552 |
MONROE 5802 Fits Vehicles
- Buick Sportwagon (1970-1972)
- Pontiac Tempest (1964-1970)
- Buick Special (1964-1969)
- Pontiac Parisienne (1971-1974, 1976-1982)
- Pontiac Ventura (1971-1974)
- Pontiac Star Chief (1963-1964)
- Pontiac GTO (1964-1973)
- Oldsmobile F85 (1964-1972)
- Oldsmobile 442 (1964-1971)
- Chevrolet Nova (1969-1973)
- Chevrolet Chevelle (1964-1977)
- Chevrolet Biscayne (1965-1972)
- Buick Skylark (1964-1972)
- Buick Apollo (1973)
- Buick Centurion (1971-1973)
- Pontiac Laurentian (1971-1974, 1976-1981)
- Nissan 710 (1974-1977)
- Nissan 610 (1973-1976)
- Nissan 810 (1977-1979)
- Pontiac Safari (1987-1989)
- Pontiac LeMans (1970-1981)
- Pontiac Grandville (1971-1975)
- Pontiac Grand Safari (1971-1978)
- Pontiac Grand Prix (1963-1964, 1969-1987)
- Pontiac Grand LeMans (1975-1983)
- Pontiac Grand Am (1973-1975, 1978-1980)
- Pontiac Catalina (1963-1964, 1971-1981)
- Pontiac Bonneville (1963-1964, 1971-1981)
- Oldsmobile Vista Cruiser (1973-1975)
- Oldsmobile Toronado (1971-1978)
- Oldsmobile Delta 88 (1971-1981)
- Oldsmobile Cutlass Supreme (1967-1988)
- Oldsmobile Cutlass Cruiser (1980-1983)
- Oldsmobile Cutlass Tiara (1976)
- Oldsmobile Cutlass Calais (1978-1984)
- Oldsmobile Cutlass Salon (1975-1980, 1985-1987)
- Oldsmobile Cutlass (1964-1981, 1985-1987)
- Oldsmobile Custom Cruiser (1971-1976)
- Oldsmobile 98 (1971-1984)
- Chevrolet Monte Carlo (1970-1988)
- Chevrolet Malibu (1973-1983)
- Chevrolet Impala (1971-1981)
- Chevrolet Caprice (1966-1996)
- Chevrolet Bel Air (1965-1975, 1981)
- Cadillac Brougham (1987-1990)
- Cadillac Fleetwood (1985-1986)
- Cadillac DeVille (1977-1984)
- Cadillac Commercial Chassis (1983-1985)
- Buick Roadmaster (1991-1996)
- Buick Riviera (1971-1978)
- Buick Regal (1973-1987)
- Buick LeSabre (1971-1981)
- Buick Estate Wagon (1970-1981)
- Buick Electra (1971-1981)
- Buick Century (1973-1981)
