MONROE 5765 Part Description
Manufacturer
Product Description

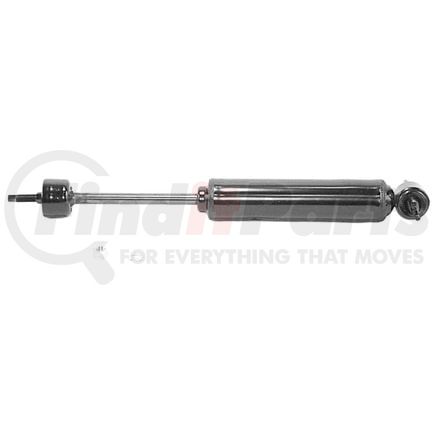

OESpectrum Suspension Shock Absorber
Features & Benefits
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
- BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee
MONROE 5765 Specifications
Product Attributes
| Lower Mount Code | XP6 |
| Upper Mount Code | SPEC |
| Dust Shield Included | No |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 10.125 IN |
| Extended Length | 15.5 in |
| Gas Charged | Yes |
| Lower Mount Type | Cross Pin Mount - Open Ended, 5/16" Hole ID (Both Ends) X 2.3/4" Pin Length (Hole Center to Center) |
| Parts Pack(s) | P00002 |
| Travel Length | 5.375 in |
| Upper Mount Type | Special Mount |
| Compressed Length | 257.2 MM |
| Extended Length | 393.7 MM |
| Travel Length | 136.5 MM |
| Shock Absorber Body End Measuring Point | Center of Mounting Hole |
| Lower Mount Type | T-Bar |
| Lower Mount Code | XP6 |
| Upper Mount Type | Special Mount |
| Upper Mount Code | SPEC |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01170 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598041739 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 5765 Cross References
| Brand | Part Number |
|---|---|
| 5765ST, GD9Z17682DAPTM | |
| AUTOZONE | TS34-32552B, TS34-34111B |
| AutoZone | TS3432552B, TS3434111B |
| Duralast | TS3432552B |
| GABRIEL | 82118 |
| KYB | KG4550, 343127 |
| KYB AMERICA LLC. | 343128 |
| MasterPro Shocks and Struts | GM105 |
| NAPA Proformer | SH82118 |
| NAPA Shocks | 5765, NS5765 |
MONROE 5765 Fits Vehicles
- Chevrolet Impala (1958-1964)
- Chevrolet Del Ray (1958)
- Chevrolet Biscayne (1958-1964)
- Chevrolet Bel Air (1958-1964)
