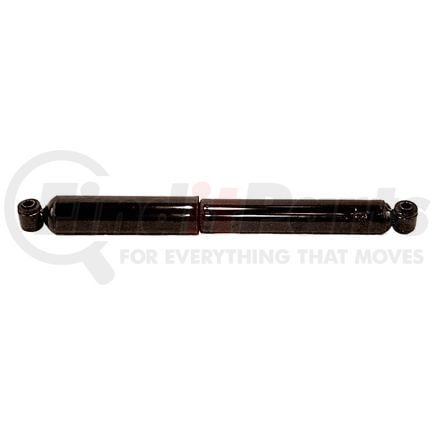

(888) 312-8812 Login SignupMagnum RV Suspension Shock Absorber
| Lower Mount Code | LS39 |
| Upper Mount Code | LS39 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 12.875 IN |
| Dust Shield Material | Metal |
| Extended Length | 21 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.5/8" Sleeve OAL |
| Parts Pack(s) | None |
| Travel Length | 8.125 in |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 41.28MM Sleeve OAL |
| Compressed Length | 327 MM |
| Extended Length | 533.4 MM |
| Travel Length | 206.4 MM |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS39 |
| Upper Mount Code | LS39 |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598555380 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
| Brand | Part Number |
|---|---|
| 555038MM, 747730158655 | |
| BULLDOG HD SHOCKS | HD1214-0606 |
| Bulldog HD | HD12140606 |
| Chevrolet | 22011983, 22012098, 22046408, 22064002, 22064003, 22064004, 22064005, 3187847 |
| Dodge | 3837028, 4039724, 4086418, 4131320, 4131321, 4131350, 4364771, 4364772, 4443467, 4443481, 4504317, 4740238, 4740239, 4740242, 4740243, 4740244, 4740248, 4740249, 5011635AB, 5011635AE, 52039383AC, 52106311AC, 52106312AB, 52106312AC, 52106320AB, 52106320AC |
| GABRIEL | G63413, 58403, 77403 |
| GMC | 22011983, 22012098, 22046408, 22064002, 22064003, 22064004, 22064005, 3187847 |
| KYB | KG6405, KG5418, KG5430, 565039, KG5488, 344075, 344073 |
| NAPA Shocks | 555038 |
