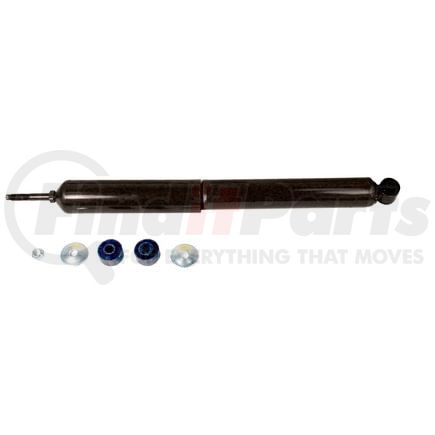

MONROE 555034 Magnum RV Suspension Shock Absorber

MSRP: $99.52

$53.99

Save $45.53

Limited availability at this price!

In Stock

Get it by Thursday, Feb 5
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed before 2pm EST will ship same day

MONROE 555034 Part Description

Manufacturer

MONROE

Product Description

Magnum RV Suspension Shock Absorber

Features & Benefits

  • FOR RECREATIONAL VEHICLES -- Designed to handle the demands of recreational vehicles that go on cross country adventures and trips close to home
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger reserve tube holds more fluid to improve performance (when required)
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the bore provides more efficient and consistent control (most applications)
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
  • BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (when required)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
  • BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty

MONROE 555034 Specifications

Product Attributes

Lower Mount Code LS38
Upper Mount Code S5
Dust Shield Included Yes
Includes Bump Stop No
Internal Rebound Bumper No
Hydraulic Lockout No
Part Description Shock Absorber
Compressed Length 13.625 IN
Dust Shield Material Metal
Extended Length 22.5 in
Gas Charged Yes
Lower Mount Type Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.1/2" Sleeve OAL
Parts Pack(s) P01167
Travel Length 8.875 in
Upper Mount Type Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch
Compressed Length 346.1 MM
Extended Length 571.5 MM
Travel Length 225.4 MM
Shock Absorber Rod End Measuring Point Base of Stem
Shock Absorber Body End Measuring Point Center of Loop
Lower Mount Type Loop (Eyelet) Bushing and Sleeve
Lower Mount Code LS38
Upper Mount Code S5
Mounting Hardware Included Yes
Grade Type Premium
Active or Passive Suspension Passive
Adjustable Compression No
Adjustable Rebound No
Adjustable Ride Height No

Additional Information

MSDS Sheet Number 01164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708800050
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598555342
VMRS Code 016008003
UNSPSC 25172011

MONROE 555034 Cross References

BrandPart Number
555034MM, 747730066318
BILSTEIN24184663
BULLDOG HD SHOCKSHD1214-0646
Bulldog HDHD12140646
FordD9UZ18124A, E6UZ18124A, E6UZ18124B, E6UZ18125A, E6UZ18125B, E7XZ18124A, E7XZ18125B, F7AZ18124VB, F7AZ18125UA, FOUZ18125B
GABRIELG63387, 58387
Gold Shock Absorber9160669
KYBKG6411, KG5421, 344264
MotorcraftCAT901
NAPA Shocks555034
SterlingE7XZ18125B

MONROE 555034 Fits Vehicles

  • Ford E-350 Econoline Club Wagon (1977-1991)
  • Ford E-350 Econoline (1975-1991)
