(888) 312-8812 Login SignupMONROE 34658 Gas-Magnum Rear Suspension Shock Absorber
Tap to view 3 more
MSRP: $99.46
$5949
Save $39.97
Limited availability at this price!
In Stock
Get it by Friday, Jul 24
MONROE 34658 Part Description
Manufacturer
Product Description

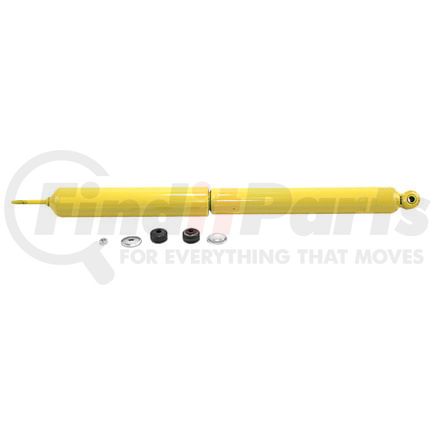

Gas-Magnum Rear Suspension Shock Absorber
Features & Benefits
- DESIGNED FOR TRUCKS AND VANS -- Engineered for hardworking full-size trucks and vans and features full-displaced valving on compression cycles to deliver controlled ride and handling
- BUILT TO LAST -- Heavy-duty nitrocarburized rod (non-dust shield units only) and sintered iron piston enhance durability for longer service life while self-lubricating fluid seal reduces friction against piston rod to reduce wear
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- LONGER SERVICE LIFE -- Larger bore and bigger 2-in. reserve tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
MONROE 34658 Specifications
Product Attributes
| Compressed Length | 16 IN |
| Compressed Length | 406.4 MM |
| Extended Length | 27.5 in |
| Extended Length | 698.5 MM |
| Travel Length | 11.5 in |
| Travel Length | 292.1 MM |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.1/2" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS26 |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Upper Mount Code | S4 |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | Yes |
| Parts Pack(s) | P01136 |
| Body Color | Yellow |
| Cylinder Color | Yellow |
| Color | Yellow |
| Cylinder Finish | Painted |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01170 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598050526 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 34658 Cross References
| Brand | Part Number |
|---|---|
| 34658MM | |
| AL-KO Xtreme | 813045 |
| Bulldog HD | HD12140875 |
| Duralast | MS3431532B |
| Ford | 1L3Z18124AC, 1L3Z18124BA, 1L3Z18125AA, 2L3Z18124AA, 2L3Z18124BA, 2L3Z18124BB, 2L3Z18124CA, 2L3Z18124DA, 2L3Z18124EA, 2L3Z18124MA, 2L3Z18125AA, 2L3Z18125BA, 2L3Z18125BB, 2L3Z18125CA, 2L3Z18125EA, 2L3Z18125FA, 2L3Z18125GA, 2L3Z18125HA, 2L3Z18125KA, 3L3Z18124AA, 3L3Z18125AA, 3U2Z18124BB, 3U2Z18124BM, 3U2Z18124DAA, 3U2Z18124QAA, 3U2Z18124RAA, 5U2Z18V125AD, F65Z18124EB, F65Z18124FB, F65Z18124GA, F65Z18124HB, F65Z18124KA, F65Z18124KB, F65Z18125AB, F65Z18125BB, F65Z18125CB, F65Z18125DC, F75Z18125AG, F75Z18125AH, F75Z18125DC, F75Z18125HA, F75Z18125HC, F75Z18125PC, F85Z18124LA, XL3Z18124AA, XL3Z18124CA, XL3Z18125CA, YL3Z18124AA, YL3Z18124BA, YL3Z18124CA, YL3Z18124DA, YL3Z18125AA, YL3Z18125BA, YL3Z18125CA, YL3Z18125DA, YL3Z18125EA |
| GABRIEL | G63715, 58715, 61612 |
| HALDEX | SA34658 |
| KYB | 344375, 565009, KG54314, 344616 |
| MERITOR | MG60258 |
| MasterPro Shocks and Struts | FD115 |
| Monroe Shocks & Struts | 210229, 32305, 37137, 911134 |
| NAPA Proformer | SH81913 |
| NAPA Shocks | 76658 |
| Rancho | RS5234, RS55234 |
| Sensen | 12140192 |
MONROE 34658 Fits Vehicles
- Ford F-150 Heritage (2004)
- Ford F-150 (1997-2003)
