MONROE 32217 Part Description
Manufacturer
Product Description

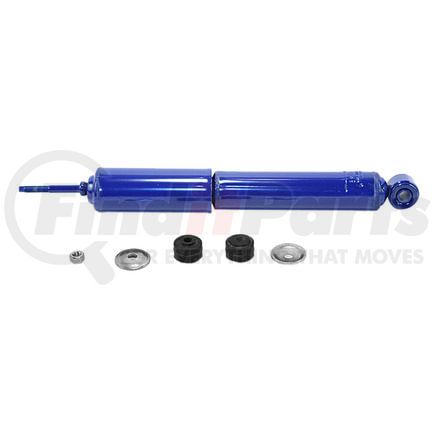

Monro-Matic Plus Suspension Shock Absorber
Features & Benefits
- CONSISTENT RIDE -- Velocity Proportional Valving (VPV) technology and all-weather fluid containing special additives to reduce friction and ensure smooth rod reaction and an overall smoother ride
- RELIABLE PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration
- RESTORES RIDE AND HANDLING -- Larger bore provides more efficient damping control to provide consistency and a smooth ride (where applicable)
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while banded piston and bronze reinforced guide provide durability
- GET MORE MILES FROM YOUR RIDE -- Designed and validated to meet OE spec and deliver consistent performance
MONROE 32217 Specifications
Product Attributes
| Lower Mount Code | LS23 |
| Upper Mount Code | S4 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 9.25 IN |
| Dust Shield Material | Metal |
| Extended Length | 14.375 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.1/4" Sleeve OAL |
| Parts Pack(s) | P01134 |
| Travel Length | 5.125 in |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Compressed Length | 235 MM |
| Extended Length | 365.1 MM |
| Travel Length | 130.2 MM |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS23 |
| Upper Mount Code | S4 |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01170 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598024756 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 32217 Cross References
| Brand | Part Number |
|---|---|
| 32217MM | |
| AUTOZONE | TS33-33801B, TS32-30141B, MS32-30141B |
| AutoZone | MS3230141B, TS3230141B, TS3333801B |
| GABRIEL | G63612, 61545, 81507, 81872, G63495, 61593, 81553, 77904, G63909, G63611, 61508 |
| Honda | 8970448621, 8970448631 |
| Isuzu | 8941245480, 8941245490, 8943168161, 8943630480, 8943630490, 8943631300, 8943631310, 8944336872, 8944336922, 8944336942, 8944386510, 8944386511, 8944386521, 8944386522, 8944386551, 8944386591, 8944463731, 8944731860, 8944731870, 8970123171, 8970123180, 8970225540, 8970225560, 8970448621, 8970448631, 8970865400, 8970865410, 8970865420, 8970865430, 8970865440, 8970865450, 8970865460, 8970865470 |
| KYB | KG5477, 344098, 344430, 565029, KG5476, KG4613A |
| MERITOR | MG60169 |
| Mazda | 8AU328700MV, UB3934700, UB3999281, UC8634700 |
| NAPA Proformer | SH81553 |
| NAPA Response | 94048 |
| Toyota | 4850029315, 4850029335, 4850029385, 4850029425, 4853180018, 4853180225, 4853180260 |
MONROE 32217 Fits Vehicles
- Mazda B2600 (1987-1993)
- Mazda B2000 (1986-1987)
- Mazda B2200 (1987-1993)
- Toyota Van (1987-1989)
- Honda Passport (1994-1995)
- Isuzu Trooper (1987-1991)
- Isuzu Rodeo (1991-1995)
- Isuzu Pickup (1989-1995)
- Isuzu Amigo (1989-1994)
