MONROE 32113 Part Description
Manufacturer
Product Description

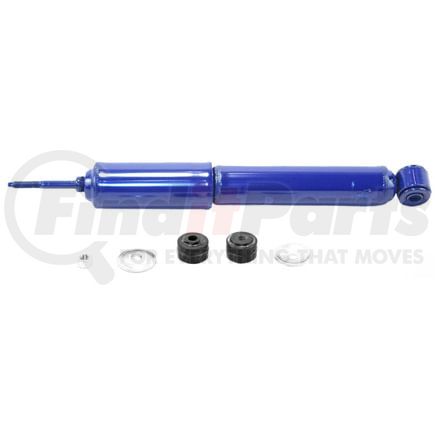

Monro-Matic Plus Suspension Shock Absorber
Features & Benefits
- CONSISTENT RIDE -- Velocity Proportional Valving (VPV) technology and all-weather fluid containing special additives to reduce friction and ensure smooth rod reaction and an overall smoother ride
- RELIABLE PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration
- RESTORES RIDE AND HANDLING -- Larger bore provides more efficient damping control to provide consistency and a smooth ride (where applicable)
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while banded piston and bronze reinforced guide provide durability
- GET MORE MILES FROM YOUR RIDE -- Designed and validated to meet OE spec and deliver consistent performance
MONROE 32113 Specifications
Product Attributes
| Lower Mount Code | LS23 |
| Upper Mount Code | S4 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 8.875 IN |
| Dust Shield Material | Metal |
| Extended Length | 13.75 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.1/4" Sleeve OAL |
| Parts Pack(s) | P01134 |
| Travel Length | 4.875 in |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Compressed Length | 225.4 MM |
| Extended Length | 349.3 MM |
| Travel Length | 123.8 MM |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598024145 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 32113 Part Interchanges
| Brand | Part Number |
|---|---|
| Datsun/Nissan | 5611001G27, 5611025G27, 5611025G28, 5611031G25, 5611035G25, 561103S526, 561103S527, 561104S125, 561107Z025, 5611086G00, 5611086G25, 561108Z425, 561108Z625, 561109Z325, 561109Z425, 561109Z825, 561109Z826, 56110S3885, 56110S3886, 56110S4325, 56110S4385, 562003S525, 562003S526, 562004S125, 562007Z025, 562008Z425, 562008Z625, 562009Z325, 562009Z425, 562009Z825, 562009Z826, 5621001G26, 5621010G27, 5621010G28, 5621025G27, 5621025G28, 5621035G25, 5621035G26, 56210S3826, 56210S3827, 56210S3885, 56210S3886, 56210S4325, 56210S4326 |
| Isuzu | 8941034800, 8941038110, 8941245470, 8941245480, 8941245490, 8942231470, 8942237520, 8942546150, 8944336872, 8944336922, 8944336942, 8944463731, 8944731860, 9516306593, 9516306742 |
| KYB | KG5445, KG4625C, 344427, KG4613A, 343208, 565029, KG5446, KG5444, KG5615, KG5476, 344098, 565045, KG4605A, 344469, 344043 |
| Gabriel | G63813, 61501, G63909, 61662, 61508, 81478 |
| FCS Auto Parts | 341556 |
| NAPA | SH81507 |
| AutoZone | TS32-30141B, MS32-30141B, MS3230141B, TS3230141B |
| ACDelco | 520427, 5207, 530193 |
| NAPA Response | 94017 |
| FCS | 341556, 341554, 341553 |
| MasterPro Shocks and Struts | NS102 |
| Duralast | MS3230141B |
| Monroe Shocks & Struts | 59008 |
| Nissan | 5611001G27 |
| NAPA Proformer | SH81507 |
| Sensen | 12130368 |
MONROE 32113 Fits Vehicles
- Chevrolet Luv Pickup (1972-1974)
- Nissan Pickup (1995-2008)
- Nissan Frontier (1998-2002)
- Nissan D21 (1986-1994)
- Chevrolet LUV (1975-1982)
- Isuzu Trooper (1984-1986)
- Isuzu Pickup (1981-1988)
MONROE 32113 Cross References
