MGM BRAKES part description

Specifications


Aftermarket Unit
Port Size: 3/8-18 NPTF
Stroke (in.): 2.50

Service Size: 24
Spring Size: 24

Features & Benefits

  • Tamper Resistant Design
  • Externally Stored Release Bolt
  • Epoxy-Coated Head
  • 360 Aluminum Center Case
  • "Long Life" Power Spring
  • Weatherseal Plug
  • Heavy-Duty Nylon Reinforced Diaphragm
  • Heavy-Duty Nylon Reinforced Neoprene Diaphragm (Optional)
  • External Breather Tube
  • Composite Guide -Corrosion Fighter Technology, Type 30 Spring Side Models Only

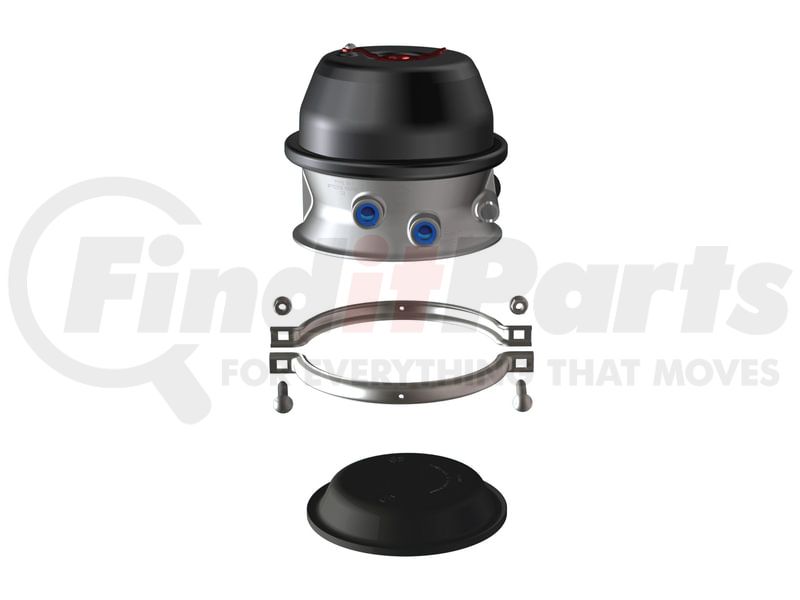

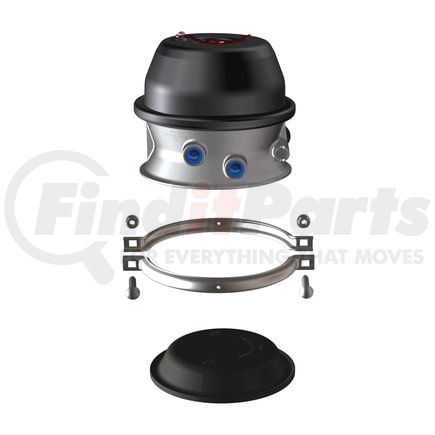

Model: TR2424L

Technical Data

Stroke 2.50" (63.5 mm)
Weight lb (kg) Single 9.5 lb (4.3 kg)
B 6.36" (161.5 mm)
C 7.38" (187.5 mm)
D 7.34" (186.4 mm)
Inlets 3/8" - 18 NPTF

Replacement Parts

1 Kit -NP Chamber N/A
2 Kit -Nuts & Bolts 9003001
3 Clamp Band Assembly 8216025
4 Diaphragm 8017141
5 Kit -Push-Rod Assembly SAE N/A
5a Kit -Push-Rod Assembly METRIC N/A
6 Return Spring N/A
7 Kit -Center Hole Shield N/A
8 NP Chamber Assembly N/A
9 Kit -Nuts & Washers SAE N/A
9a Kit -Nuts & Washers METRIC N/A
10 Hex Nut -Yoke SAE N/A
10a Hex Nut -Yoke METRIC N/A
11 Kit -Weatherseal Plug 9019005
12 Kit -Release Bolt 9007003
