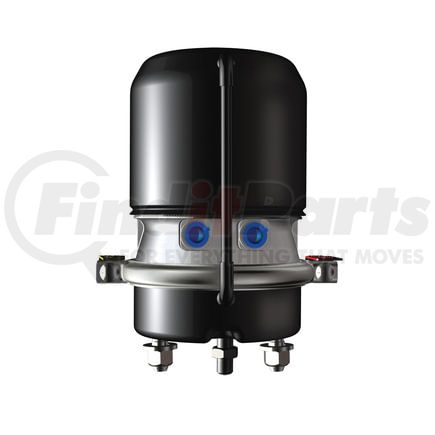

(888) 312-8812 Login SignupMGM BRAKES MJS2024ET051 Air Brake Chamber - MJS2024ET Series, Combination, 3" Stroke
$40249
2 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
MGM BRAKES MJS2024ET051 Part Description
Manufacturer
Product Description
Piston Brake Chamber
Features & Benefits
- Tamper Resistant
- Combination chamber design handles service and spring brake functions
- Long Stroke
- Long-stroke configuration supports compatible heavy-duty brake applications
- Compact
- Supplies pushrod force for stronger brake application response
- Integral Release Bolt
- Stabilizes parking brake hold when the old chamber loses performance
- Epoxy Coated Return Spring/Steel Head
- Non-Coil Clash Power Spring
- Available w/1,749-2,450 lb of Push-Rod Brake Force @ 1.25” Stroke/Service
- Available w/1,749-2,450 lb of Push-Rod Brake Force @ 1.25" Stroke/Service
- Center Hole Shield
MGM Brakes Combination Spring Brake Chamber
Parking and service brake force both depend on a chamber that responds correctly when air pressure changes. The MGM Brakes Combination Spring Brake Chamber is an MJS2024ET Series chamber with a 3-inch stroke, combining service brake actuation with spring brake holding force in one assembly. The combination design is important on drum brake setups where both controlled application and parking brake release must work reliably. The brake end becomes more dependable when MGM Brakes MJS2024ET051 replaces a weak, leaking, or slow-responding chamber.
General Description
Dry Bulk Chemicals
Features and Benefits
- Tamper Resistant Design
- Lighter Weight
- 3 inch (76.2 mm) Long Stroke
- Compact Size
- Patented Integral Release Bolt Mechanism -Minimal Bolt Protrusion -Approx. 1.25 inch (31.8 mm) Protrusion On "Long Stroke" Models When Manually Released
- Lower Hold Off Pressure (Less Air Consumption)
- Epoxy Coated Return Spring
- Non-Coil Clash Power Spring
- Increased Corrosion Resistance -Steel head, Epoxy Coated
- Available With 1,749 (793.3 kg) -2,450 lb (1,111.3 kg) of Push-Rod Braking Force @ 1.25 inch (31.8 mm) Stroke/Service Brake Sizes 17-36
- Center Hole Shield
Technical Specifications
| Stroke | 3.00" (76.2 mm) |
| Weight lb (kg ) Combination | 20.32 lb (9.2 kg) |
| Weight lb (kg) Single | 13.50 lb (6.1 kg) |
| A | 10.61" (269.5 mm) |
| B | 7.94" (201.7 mm) |
| C | 6.85" (174.0 mm) |
| D | 6.76" (171.7 mm) |
| E | 4.75" (120.7 mm) |
| F | 5/8" - 11 UNC (M16 x 1.5 - 6g) |
| G | 5/8" - 18 UNF (M16 x 1.5 - 6g) |
| Inlets | 3/8" - 18 NPTF (M16 x 1.5 - 6H) |
| X - Min. (aftermarket unit only) | 8.00" (203.2 mm) |
Features & Benefits
- Combination chamber design handles service and spring brake functions
- Long-stroke configuration supports compatible heavy-duty brake applications
- Supplies pushrod force for stronger brake application response
- Stabilizes parking brake hold when the old chamber loses performance
MGM BRAKES MJS2024ET051 Specifications
Product Attributes
| Breather Tube | Breather Tube |
| Chamber Type | Piston Brake |
| Diaphragm Diameter | Rubber IN |
| Mounting Bolt Length | 1.680 IN |
| Mounting Bolt Thread | M16 X 1.5 |
| Port Size | 3/8-18 NPTF |
| Spring Size | 24 |
| Service Size | 20 |
| Stroke | 3.00 IN |
| UNIT | Aftermarket |
| Diaphragm | Rubber |
| Rod Diameter | 5/8 |
| Push Rod Length - no yoke | 8.00 |
Additional Information
| Country of Origin (Primary) | US |
| 2 | |
| VMRS Code | 013004000 |
MGM BRAKES MJS2024ET051 Cross References
| Brand | Part Number |
|---|---|
| MERITOR | A853276T20 |
