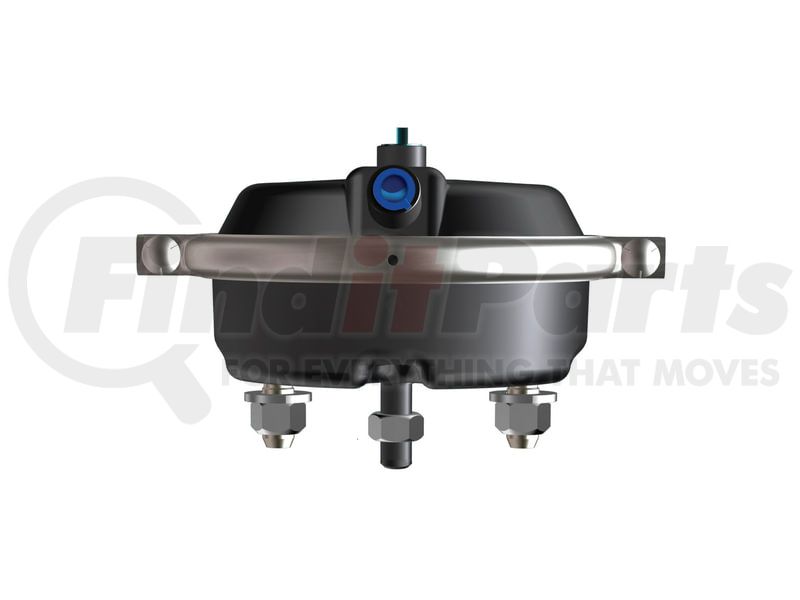

(888) 312-8812 Login SignupMGM BRAKES 1416001 DRUM BRK CHAMBR
MSRP: $146.73
$10299
Save $43.74
Limited availability at this price!
In Stock
Get it by Tuesday, Jul 7
MGM BRAKES 1416001 Part Description
Manufacturer
Product Description
Service Chamber
Features & Benefits
- Steel pressure cap
- Heavy gauge steel mounting base
- Heavy-duty nylon reinforced diaphragm
- Mounting studs, grade 5, heat treated/plated
- Low-profile design
- S-Cam and disc brake applications
- Available in 1.75, 2.25, 2.50 and 3.00” stroke
- Available in 1.75, 2.25, 2.50 and 3.00" stroke
Specifications
Aftermarket Unit
Mounting Bolt Thread: 7/16-14
Mounting Bolt Length (in.): 1.170
Port Size: 3/8-18 NPTF
Stroke (in.): 2.25
Service Size: 16
Spring Size: N/A
Features & Benefits
- Formed Steel Pressure Cap -Epoxy-Coated
- Formed Steel Non- Pressure Chamber -Epoxy-Coated
- Heavy Duty Nylon Reinforced Diaphragms
- Top and Side Air Ports - 3/8" NPTF
- Center Hole Shield (Except type 12 and type 16)
Technical Data
| Stroke | 2.25" (57.2 mm) |
| Weight lb (kg) | 5.90 lb (2.7 kg) |
| A | 4.43" (112.5 mm) |
| B | 3.64" (161.0 mm) |
| C | 6.66" (169.0 mm) |
| D | 3.00" (76.2 mm) |
| E | 7/16" - 14 UNC |
| F | 1/2" - 20 UNF |
| Inlets | 3/8" - 18 NPTF |
| X - Min. (aftermarket unit only) | 4.00" (101.6 mm) |
Replacement Parts
| 1 | Kit- NP Chamber (b) | 9015136 |
| 2 | Kit- Nuts & Bolts | 9003001 |
| 3 | Clamp Band Assembly | 8216018 |
| 4 | Diaphragm | 8017116 |
| 5 | Kit -Push-Rod Assembly (b) SAE | 9064019 |
| 5a | Kit -Push-Rod Assembly (b) METRIC | N/A |
| 6 | Return Spring | 8068008 |
| 7 | Kit -Center Hole Shield | N/A |
| 8 | NP Chamber Assembly (b) | 8215023 |
| 9 | Kit -Nuts & Washers SAE | 9002003 |
| 9a | Kit- Nuts & Washers METRIC | N/A |
| 10 | Hex Nut -Yoke SAE | 8130011 |
| 10a | Hex Nut -Yoke METRIC | N/A |
| 11 | Pressure Cap (2-inlets/steel) | 8210013 |
| *NOTE: | (a)Type 12 pressure cap is cast aluminum | |
| *NOTE: | (b)To ensure correct stroke alert positioning, kits MUST only be used on the designated MGM brake units. |
MGM BRAKES 1416001 Specifications
Product Attributes
| Chamber Type | Service Chamber |
| Diaphragm Diameter | Rubber IN |
| Mounting Bolt Length | 1.170 IN |
| Mounting Bolt Thread | 7/16-14 |
| Port Size | 3/8-18 NPTF |
| Spring Size | N/A |
| Service Size | 16 |
| Stroke | 2.25 IN |
| UNIT | Aftermarket |
| Diaphragm | Rubber |
| Push Rod Length - no yoke | 4.00 |
| Rod Diameter | 1/2 |
Additional Information
| Country of Origin (Primary) | US |
| 2 | |
| VMRS Code | 013004027 |
MGM BRAKES 1416001 Cross References
| Brand | Part Number |
|---|---|
| HALDEX | SC16 |
| MERITOR | V943276P16, V653276P16, A643276P16, V933276P16, V61-3276P16 |
| NAVISTAR | FLTS16S20 |
| WORLD AMERICAN | WA16SC |
