GATES G34211-0505 Part Description
Manufacturer
Product Description

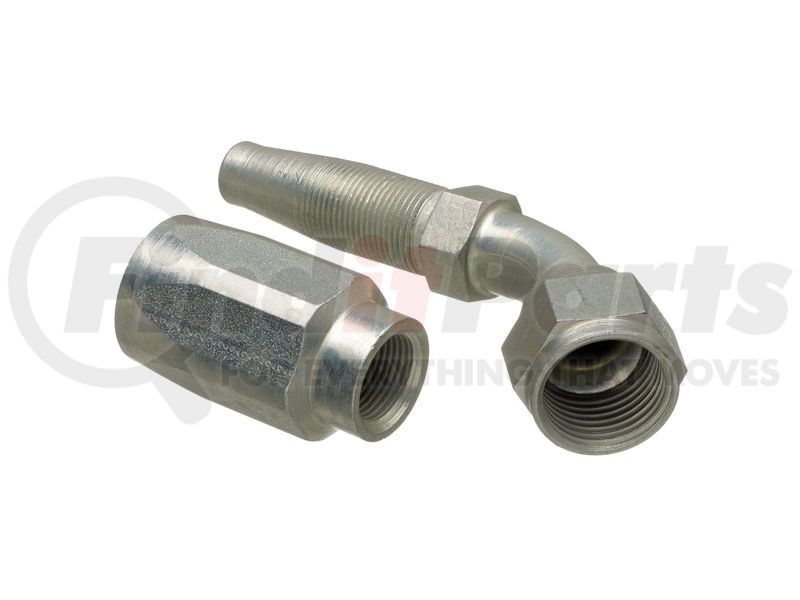

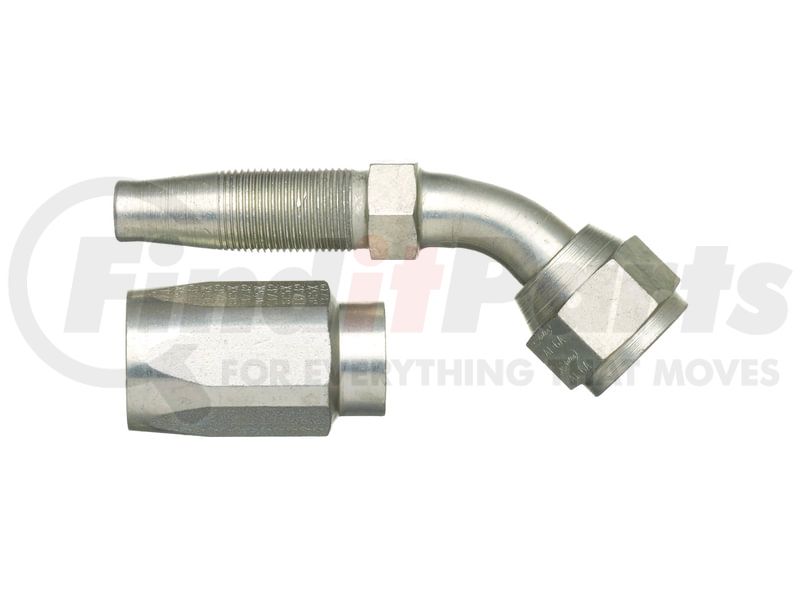

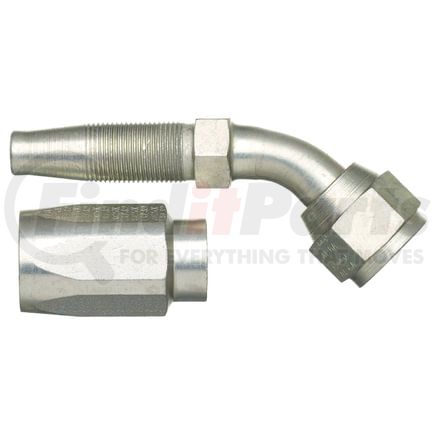

Dual Seat Female JIC 37/SAE 45 Flare Swivel - 45 Bent Tube - Steel
Features & Benefits
- Designed to perform with Gates C5 hose
- Zinc-plated carbon steel
- Meets DOT FMVSS 106-74 Type AII
GATES G34211-0505 Specifications
Product Attributes
| Coupling Description | Field Attach C5CXH, C5C, C5D, C5D Dual Seat Female JIC 37/SAE 45 Flare Swivel - 45 Bent Tube - Steel |
| Industrial Description | 5C5X-5RFJSX45S |
| Thread Size | 1/2-20 |
| Inside Diameter | .25 IN |
| Hydraulic Hose Recommendation | Gates C5C, C5D, C5CHX, C5M |
| Stem Hex Size | .4375 IN |
| Nut Hex Size | .625 IN |
| Drop Length | .38 IN |
| Cut-Off Length | 1.4 IN |
| Length | 2.11 IN |
| Inside Diameter | 6.4 MM |
| Drop Length | 9.7 MM |
| Cut-Off Length | 35.6 MM |
| Length | 53.6 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | N |
| UPC | 00072053169706 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G34211-0505 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 190297-5S |
| Dayco | 121653 |
| Goodyear | 18420-0505, FG-JCFX45-0505, FG-SFFX-0505 |
| N/A | 04034224 |
| NAPA | G34211-0505 |
| Parker | 23720-05-05, 23720-5-5 |
| Weatherhead | 24705N685 |
