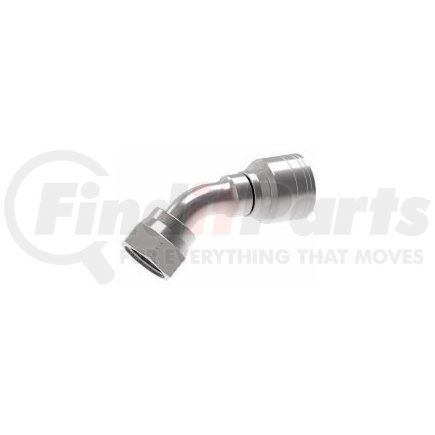

WEATHERHEAD part description

Angle Shape 45 Degree
Compatible Hose ID 0.25 inch
Compatible Hoses H059 H069 H166 H169 H229 H366 H569
Compatible Tube OD 0.3125 inch
Construction Style Reusable
Drop Dimension 0.36
End Size 1 1/2 IN
End Gender 1 Female
End Type 1 JIC 37
End Type 2 Line/Hose/Tube
Finish Plating Zinc Clear Trivalent Chromate
Hex Size 1 0.6875 inch
Hex Size 2 0.625 inch
Hose Cut Off Factor 1.29 inch
Hose Dash Size -5
InsIDe Diameter 0.18 inch
Item Type Fitting Assembly
PrODuct Material Carbon steel
Thread Size 1 1/2-20
Thread Sealant No

Features & Benefits

  • Fit for wide range of applications
  • Durable and dependable
  • Cut assembly times and boost production

Officially acquired by Eaton in 2002, Weatherhead® is one of the industry’s biggest suppliers of hydraulic hose, hose ends, tube fittings, couplings, assembly equipment, and support accessories. Weatherhead crafts top-products that are widely used in mining, agriculture, construction, truck, and bus applications. Eaton delivers Weatherhead thermoplastic tubing in different sizes—from 1/8 to 1 inch—designed for use in air tools, robotics, beverage dispensing as well as air and water supply. Driven by the company’s goal to offer unique solutions to a wide range of markets that enable businesses to be at the forefront of change, Weatherhead remains the truck industry’s leading source of premium-quality hoses, fittings, and adapters for your fleet’s hose and fittings needs
