(888) 312-8812 Login SignupGATES G20357-0812 Code 62 O-Ring Flange Heavy - 45 Bent Tube (GlobalSpiral)
Tap to view 2 more
$8749
Limited availability at this price!
In Stock
Get as soon as Wednesday, Oct 7
GATES G20357-0812 Part Description
Manufacturer
Product Description

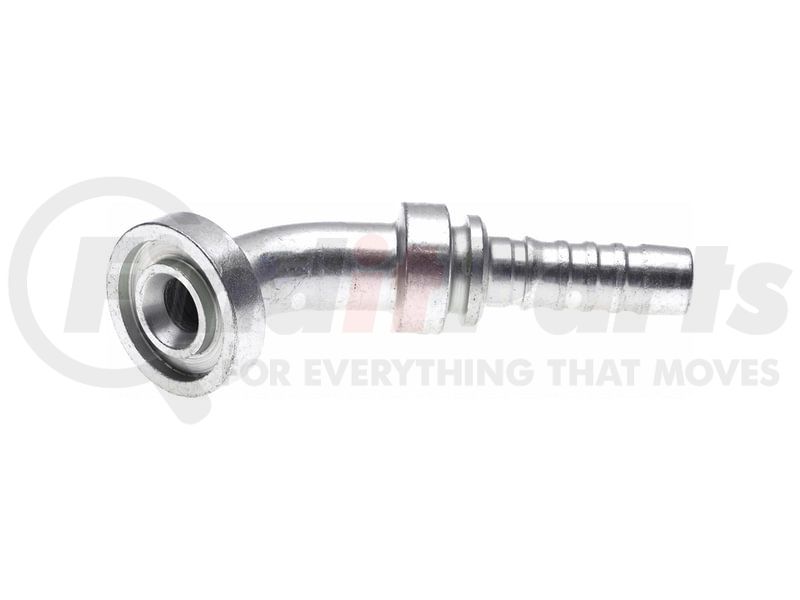

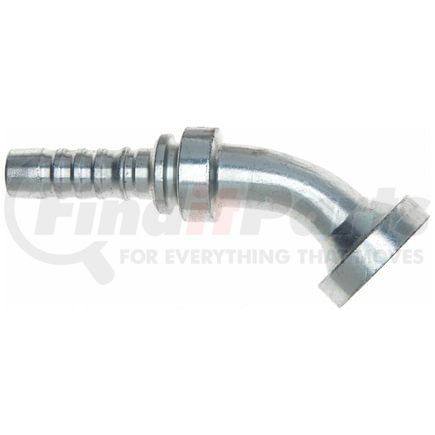

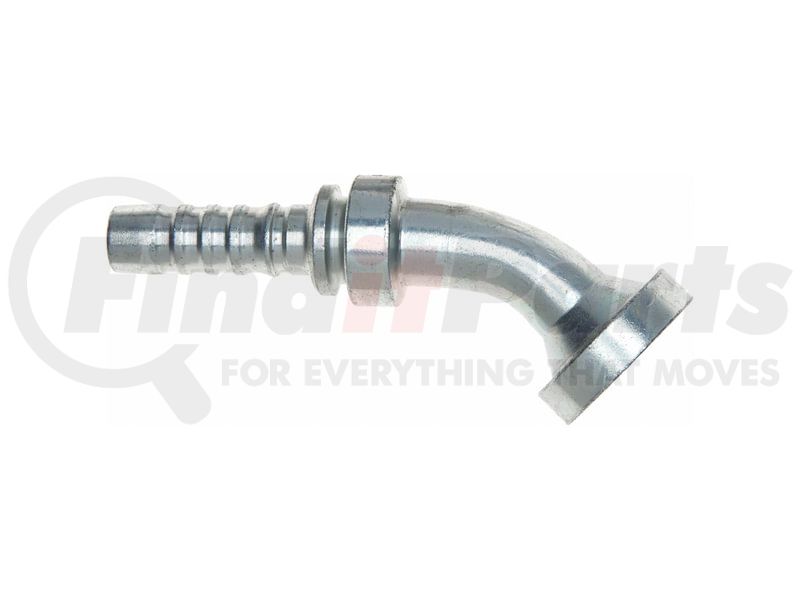

Code 62 O-Ring Flange Heavy - 45 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20357-0812 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Code 62 O-Ring Flange Heavy - 45 Bent Tube |
| Industrial Description | 8GS-12FLH45M |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |

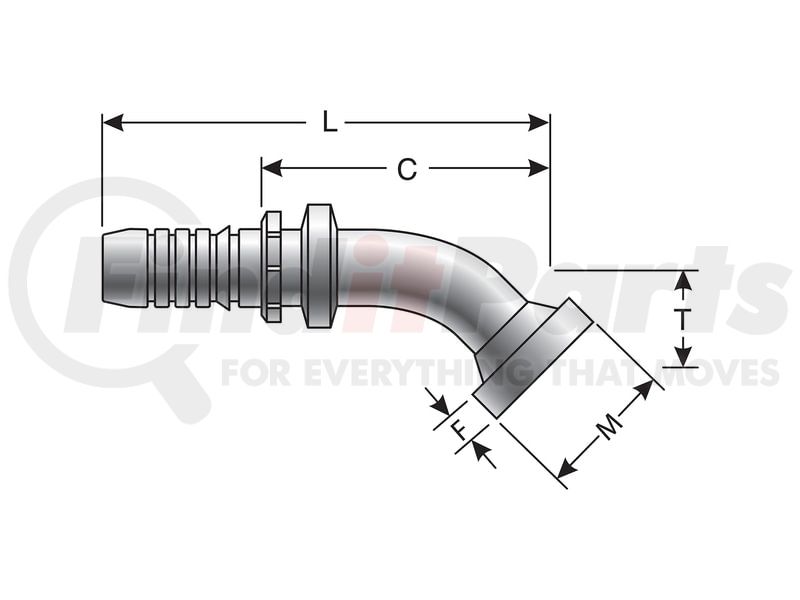

| Maximum Working Pressure | 6000 PS |
| Flange Thickness | .35 in |
| Flange Diameter | 1.63 IN |
| Drop Length | 1.02 IN |
| Cut-Off Length | 2.5 IN |
| Length | 3.98 IN |
| Inside Diameter | 12.7 MM |
| Flange Thickness | 8.9 MM |
| Flange Diameter | 41.4 MM |
| Drop Length | 25.9 MM |
| Cut-Off Length | 63.5 MM |
| Length | 101.1 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053449853 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20357-0812 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1B12FHA8 |
| Goodyear | 28310-0812, S4-FH45-0812 |
| N/A | 04031066, M23641-08-12 |
| NAPA | G20357-0812 |
| Parker | 16F71-12-8 |
| Weatherhead | 43008ED42, 43008UD42, 43008E-D42, 43008U-D42 |
