GATES G20180-1216 Part Description
Manufacturer
Product Description

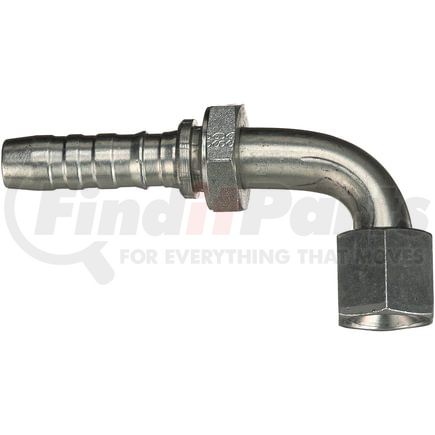

Female JIC 37 Flare Swivel - 90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20180-1216 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female JIC 37 Flare Swivel - 90 Bent Tube |
| Industrial Description | 12GS-16FJX90M |
| Thread Size | 1 5/16-12 |
| Inside Diameter | .75 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | 1.5 IN |
| Drop Length | 2.8 IN |
| Cut-Off Length | 3.31 IN |
| Length | 5.31 IN |
| Inside Diameter | 19.1 MM |
| Drop Length | 71.1 MM |
| Cut-Off Length | 84 MM |
| Length | 134.9 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053437508 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20180-1216 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1BA16FJB12, 4SA16FJB12 |
| Dayco | 102036, 1BA16FJB12 |
| Goodyear | 28425-1216, 29425-1216, S4-JCFX90-1216 |
| N/A | 04030773 |
| NAPA | G20180-1216 |
| Weatherhead | 4SP12W676 |
