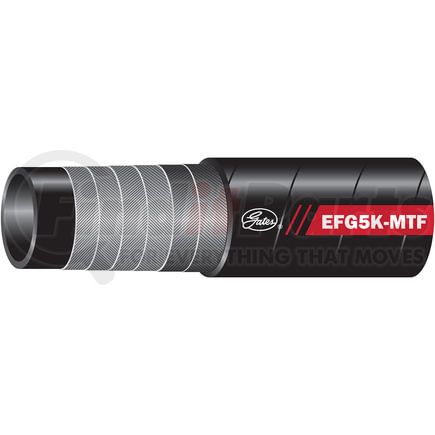

GATES 85462 EFG5K Spiral Wire Hose - SAE 100R13 - MegaTuff Cover

Name: Gates 85462 EFG5K Spiral Wire Hose - SAE 100R13 - MegaTuff Cover
SKU: 85462
Price: 91.49 USD
Availability: InStock

MSRP: $1,649.30

$91.49

Save $1,557.81

Limited availability at this price!

In Stock

Get it by Friday, Jul 17

No Hassle Return Policy Details

Free Economy shipping on orders over $499 details

GATES 85462 Part Description

EFG5K Spiral Wire Hose - SAE 100R13 - MegaTuff Cover

For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral Max [G23 and G24 Series] and Stainless Steel Spiral Couplings [G18 Series]
Tested to industry-leading 1,000,000 impulse cycles
XtraTuff hose lasts up to 25 times longer than standard hose
MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
Meets Flame Resistance Acceptance Designation MSHA 2G
Temperature Range: -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)

Product Type	EFG5K Spiral Wire Hose - SAE 100R13 - MegaTuff Cover
Industrial Description	12EFG5K-MTFX25FT
Type	Hydraulic Hose
Hose Pressure Description	Extremely High Pressure Hose
Maximum Working Pressure	5000 PS
Burst Pressure	20000 PS
Temperature Rating	-40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
Length	25 FT
Dash Size	12
Inside Diameter	.75 IN
Outside Diameter	1.24 IN
Bend Radius	4.7 IN
Tube Description	Black, Oil-Resistant, Synthetic Rubber
Hose Material	Nitrile - Type C
Reinforcement Material	Four Alternating Layers of Spiraled, High-Tensile Steel
Cover Material	Synthetic Rubber - Neoprene - Type A - Color Coded Layline
Cover Type	Type A - Flame, Oil, Abrasion & Weather Resistant - MegaTuff Cover
Cover Color	Black
Coupling Recommendation	GlobalSpiral, Stainless Steel S
SAE Standard	100R13
EN Standard	856 R13, 856 4SP
ISO Standard	18753 Grade D, 3862 Type R13
