(888) 312-8812 Login SignupGATES G25170-0404 4G-4FJX
Tap to view 11 more
$1149
Limited availability at this price!
In Stock
Get it by Wednesday, Sep 9
GATES G25170-0404 Part Description
Manufacturer
Product Description

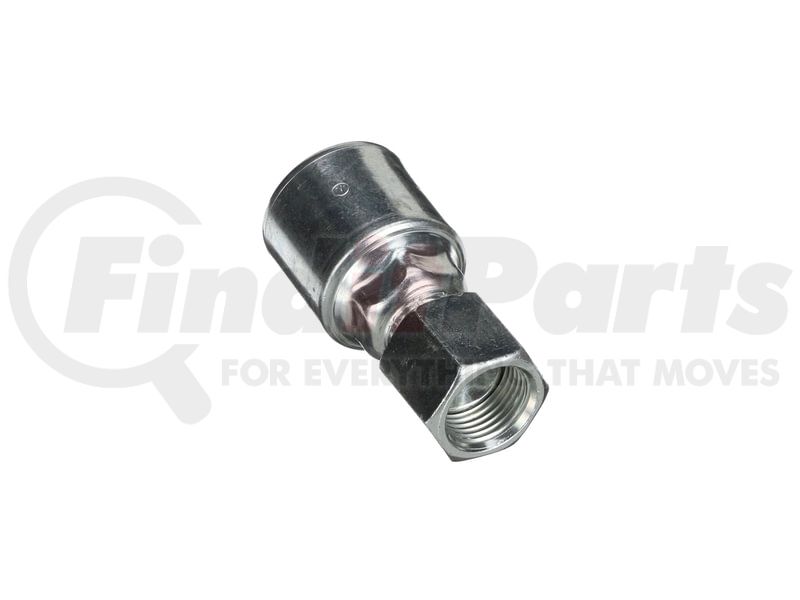

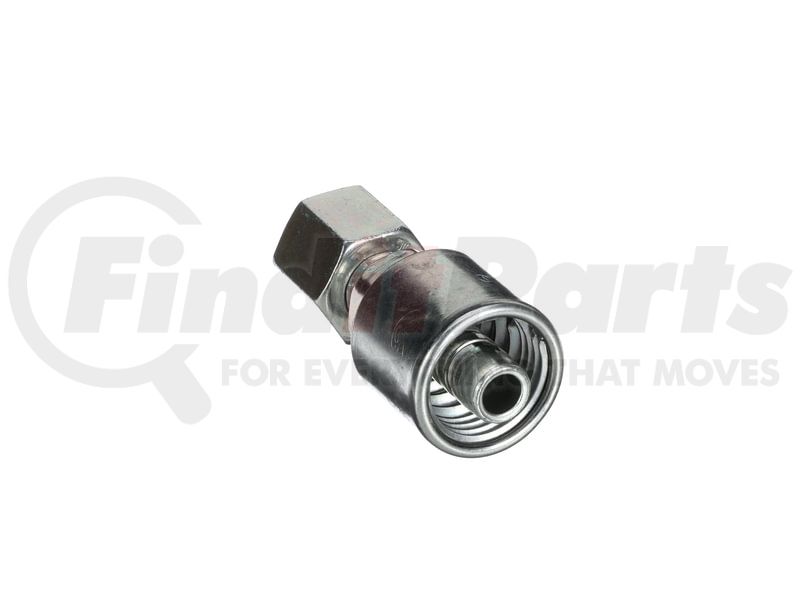

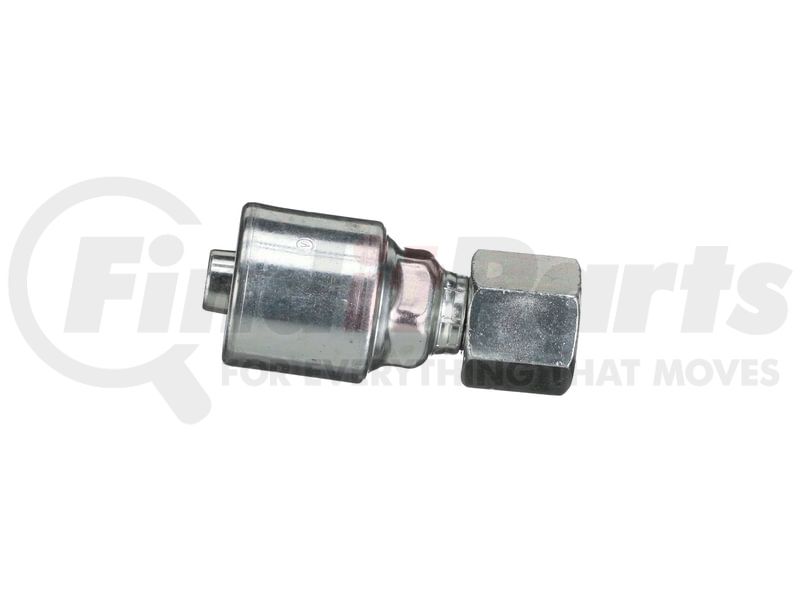

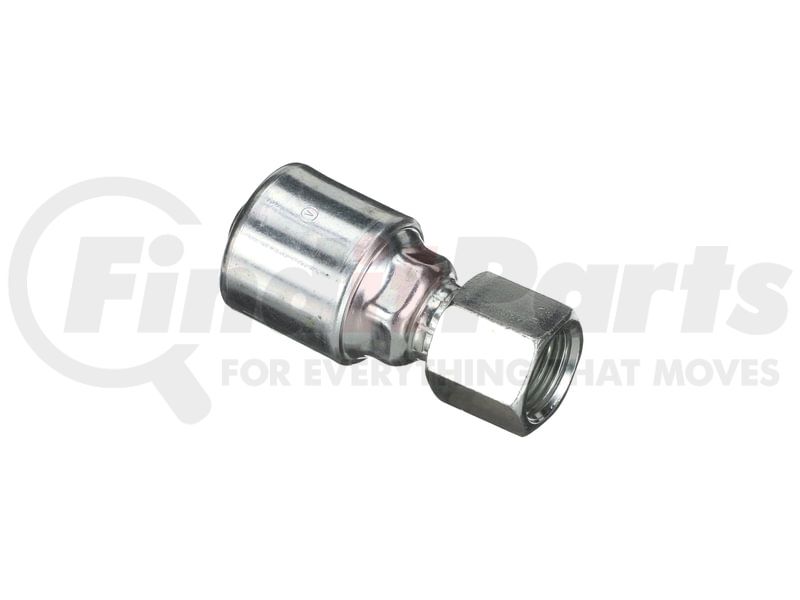

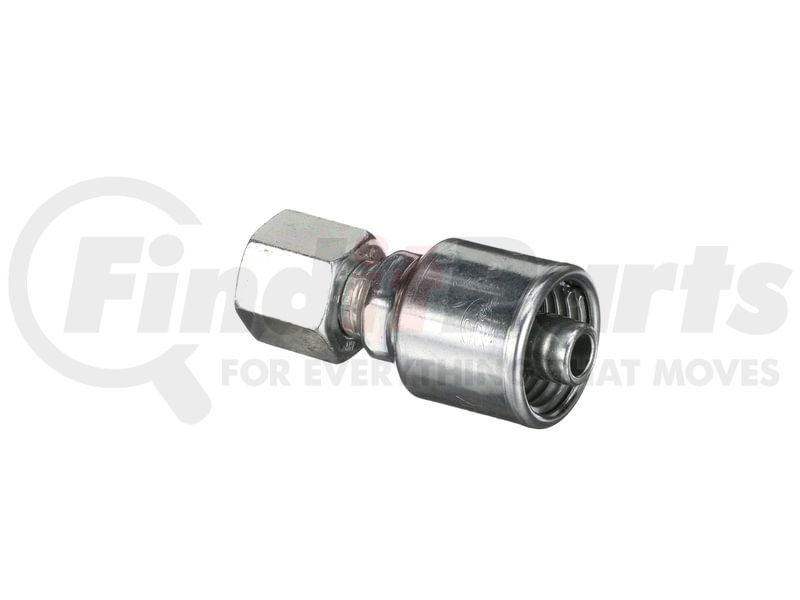

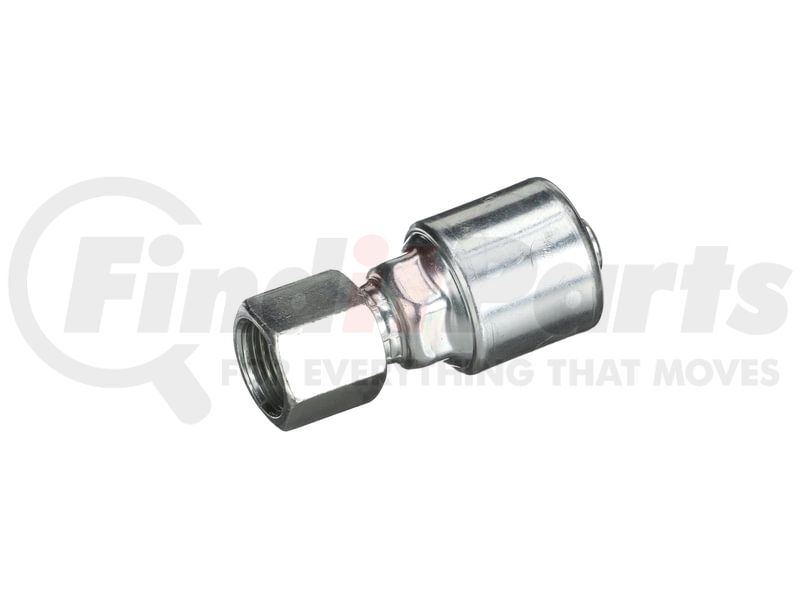

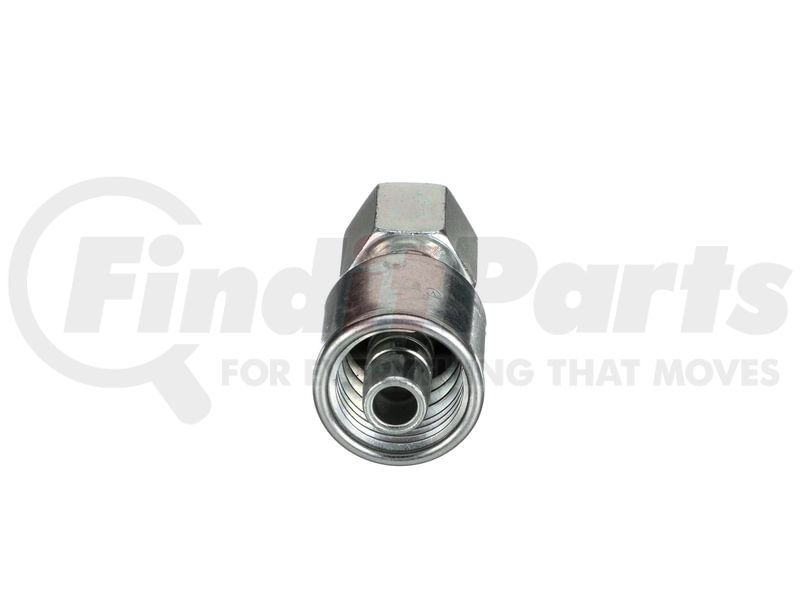

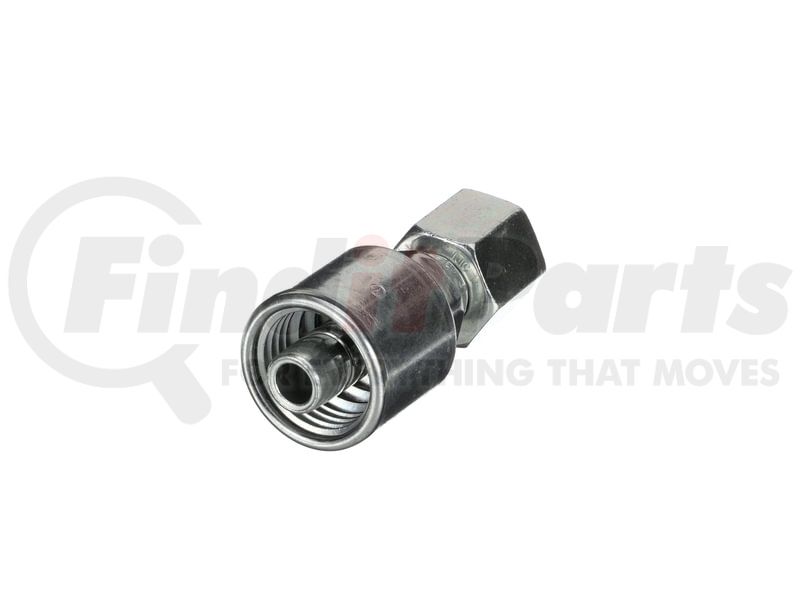

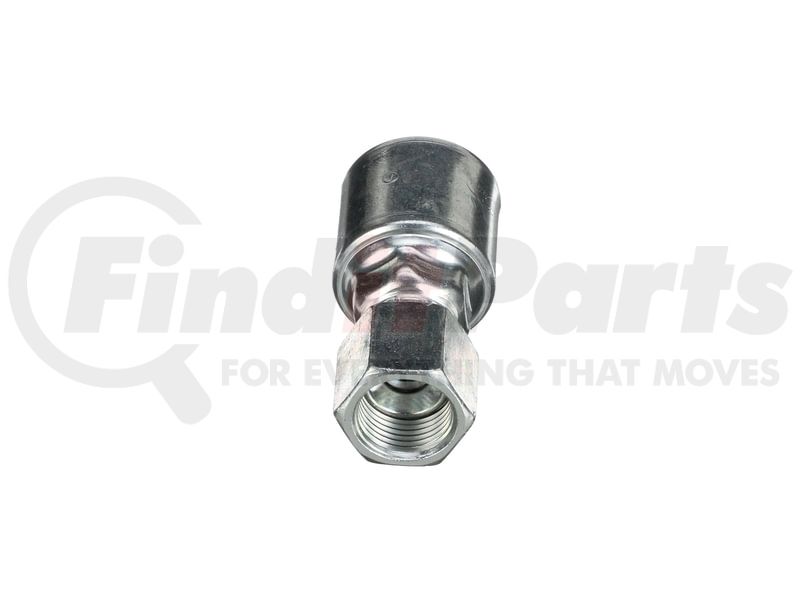

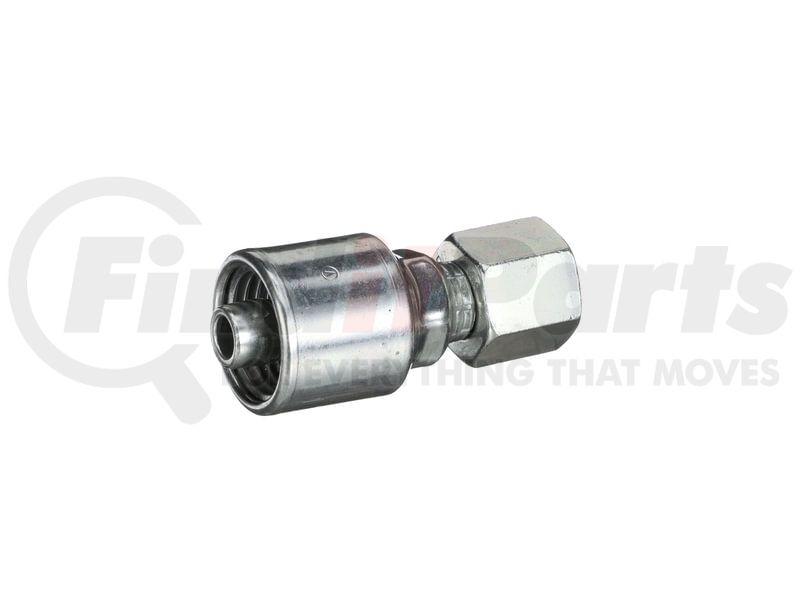

Female JIC 37 Flare Swivel (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25170-0404 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female JIC 37 Flare Swivel |
| Industrial Description | 4G-4FJX |
| Thread Size | 7/16-20 |
| Inside Diameter | .25 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 15 MM |
| Nut Hex Size | 14 MM |
| Cut-Off Length | 1.23 IN |
| Length | 2.2 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 37 |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| Inside Diameter | 6.4 MM |
| Cut-Off Length | 31.3 MM |
| Length | 55.9 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053323023 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25170-0404 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1AA4FJ4, 1GA4FJ4, FJ3114-0404S |
| Caterpillar | 124-1950, 5P-5509 |
| Dayco | 100640, 108065, 108065BK, 108490, 151065, DC04-04FJ |
| Eaton | 04Z-604, FJX-04-04, 4TA4FJ4, 196M 09-4X4 |
| Goodyear | 13400-0404, 14400-0404, 36400-0404, B2-JCFX-0404, T7-JCFX-0404, T8-JCFX-0404 |
| Hydraulink | S05H-0704 |
| Kurt Hydraulics | FJX-04-04 |
| N/A | T2040-0407, 04031867, KFJX0404, E04-04FJ, C12226511-0404, HFS2-04-04NJ, 204-1J-604, M22541-04-04KR, T204-0407, T04-04FJ, 410139-131280, HUO4-04NJ, M22711-04-04KR, HU04-04NJ, M22711-04-04, T2040-0409 |
| NAPA | G25170-0404 |
| Parker | 10643-04-04, 10643-4-4, 106HY-4-4, 10656-4-4, 7661-04FJ04TY |
| Weatherhead | 04E604, 04EE604, 04M604, 04S604, 04U604, 04Z604, 33604E-604, 33604E-664, 33604E604, 33604E664, 04M-604, 04U-604, 04W-604, 3903-04544, 390V-04544, 04E-604, 04S-604 |
