(888) 312-8812 Login SignupMONROE 5624 OESpectrum Amortisseur
Tap to view 5 more
MSRP: $126.58
$6799
Save $58.59
Limited availability at this price!
In Stock
Get it by Monday, Jun 22

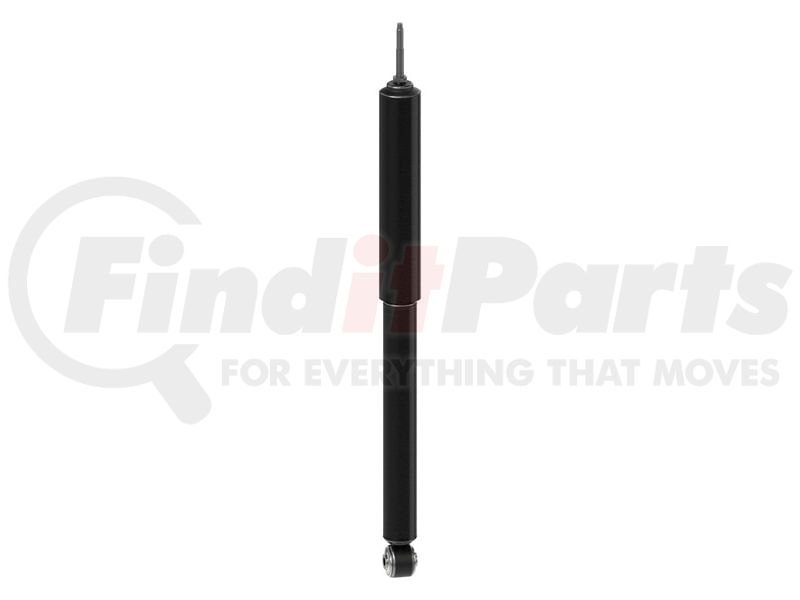

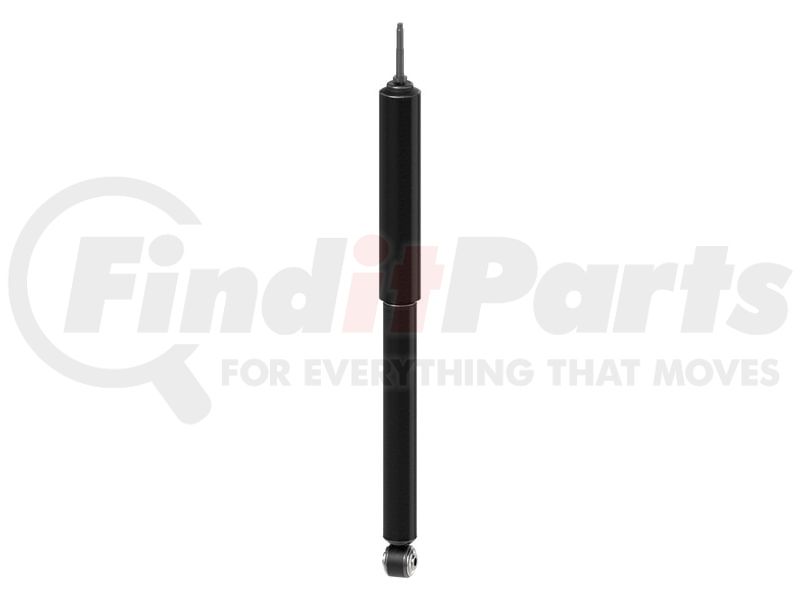

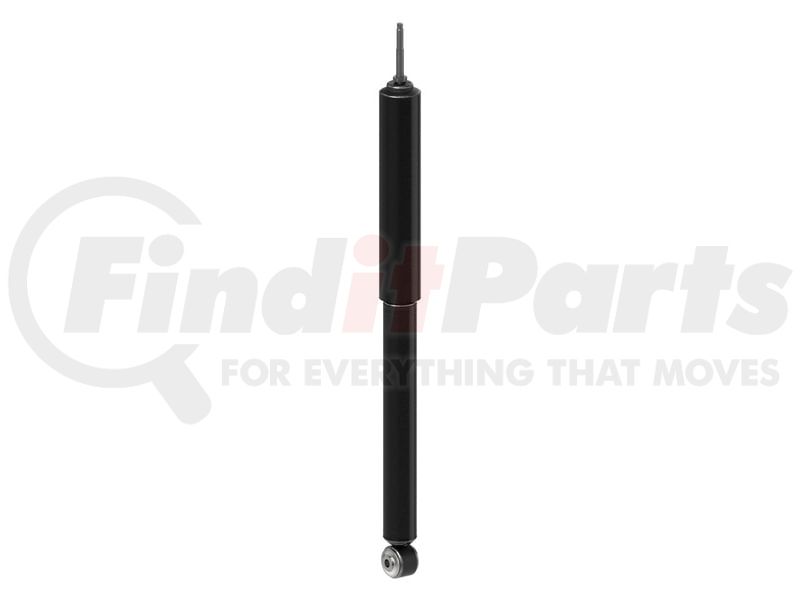

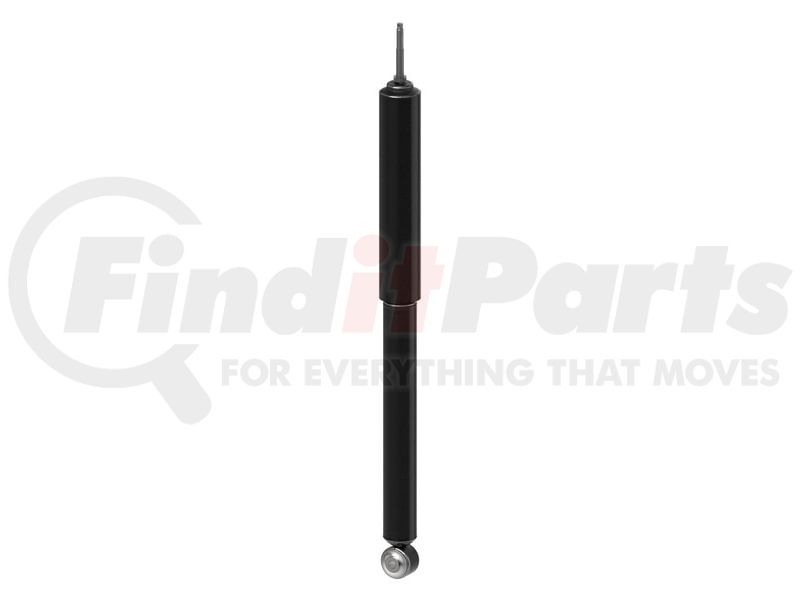

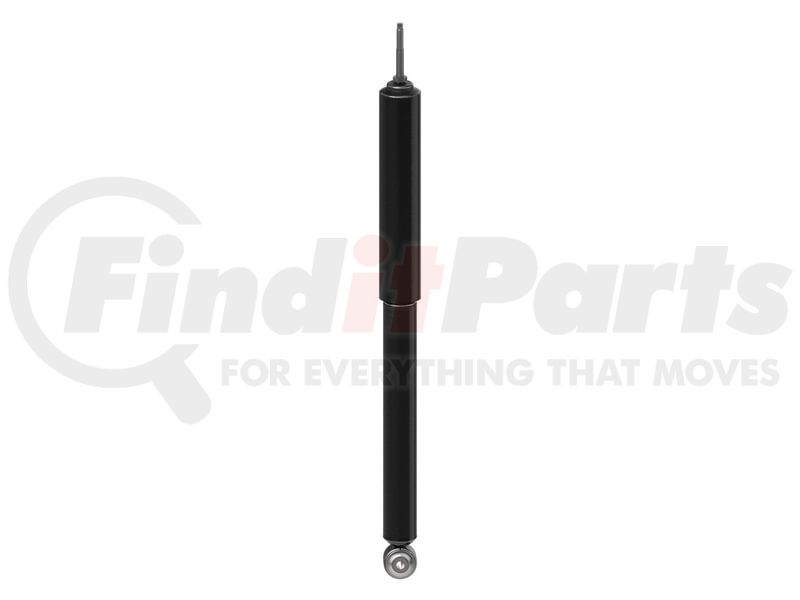

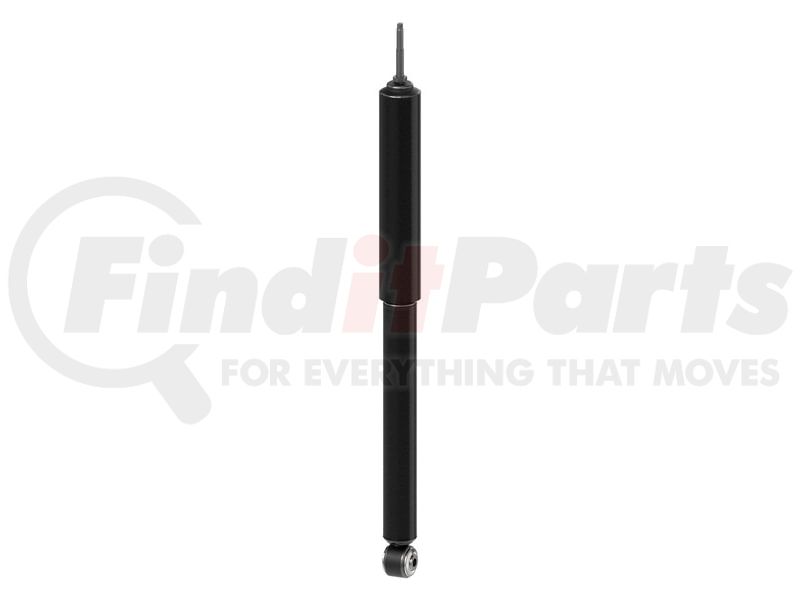

MONROE 5624 Part Description
Manufacturer
Features & Benefits
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
MONROE 5624 Specifications
Product Attributes
| Compressed Length | 15.5 IN |
| Compressed Length | 393.7 MM |
| Extended Length | 24.5 in |
| Extended Length | 622.3 MM |
| Travel Length | 9 in |
| Travel Length | 228.6 MM |
| Lower Mount Type | Special Mount |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | SPEC |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Upper Mount Code | S4 |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Gas Charged | Yes |
| Mounting Hardware Included | Yes |
| Parts Pack(s) | P01136 |
| Body Color | Black |
| Cylinder Color | Black |
| Color | Black |
| Cylinder Finish | Painted |
| Dust Shield Included | No |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01168 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598054715 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 5624 Cross References
| Brand | Part Number |
|---|---|
| 5624ST, GB5Z12A650HANP | |
| AUTOZONE | TS34-35032B, TS33-33202B |
| AutoZone | TS3333202B, TS3435032B |
| Autopart International | 2701412063 |
| Duralast | TS3333202B, TS3435032B |
| FCS | 341624, 346054, 341388 |
| FCS AUTO PARTS | 341624, 346054 |
| GABRIEL | G51783, 70055 |
| KYB | 343442, 348001, 348069, 343823 |
| KYB AMERICA LLC. | 348001, 348069 |
| MasterPro Shocks and Struts | TY124 |
| Monroe Shocks & Struts | 210065 |
| NAPA Shocks | 5624, 94382, NS5624 |
| OEM | 4853080350, 4853052M30, 4853080554, 4853052J60, 4853080438, 4853052G20, 4853080324, 4853080347, 4853080340, 4853080636, 4853052J30, 4853052L00, 4853080351, 4853080639, 4853052G40, 485300D820, 4853052J20 |
| OSC | S343442 |
| PM Auto | PM6000950 |
| PRT | 170714 |
| SENSEN | 32120276 |
| Scion | 4853080438 |
| TRQ | SBA60729 |
| Top Quality | 785624 |
| Toyota | 485100D770, 4851052C30, 4851052C50, 4851052G10, 4851052G40, 4851052G41, 4851052J20, 4851052J30, 4851052J60, 4851052L10, 4851052L11, 4851080196, 4851080294, 4851080516, 485200D220, 4852052140, 4852052160, 4852052510, 4852052540, 4852052541, 4852052620, 4852052630, 4852052660, 4852052810, 4852052811, 4852059195, 4852059365, 4852080246, 485300D820, 485300DA10, 485300DA40, 4853052G20, 4853052G40, 4853052J20, 4853052J30, 4853052J60, 4853052L00, 4853052M30, 4853080324, 4853080340, 4853080347, 4853080350, 4853080351, 4853080554, 4853080636, 4853080639, 4853080438 |
| UNITY AUTOMOTIVE | 4-11805-254130-001, 4-13071-254130-001, 2-254130-001, 254130 |
| Ultra Spring Seat | G51783 |
| Unity | 254130 |
MONROE 5624 Fits Vehicles
- Toyota Prius C (2012-2019)
- Scion xD (2008-2010)
- Toyota Yaris (2006-2014)
