(888) 312-8812 Login SignupMONROE 210171 Suspension Shock Absorber
Tap to view 5 more
$4099
Limited availability at this price!
In Stock
Get as soon as Thursday, Oct 1
MONROE 210171 Part Description
Manufacturer
Product Description
Restore Rear; Front; Front Outer Suspension Shock Absorber
Features & Benefits
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- IMPROVES PERFORMANCE -- Nitrogen gas-charge and optimized oil capacity help maintain tire-to-road contact for improved ride and handling by reducing aeration and shock fade

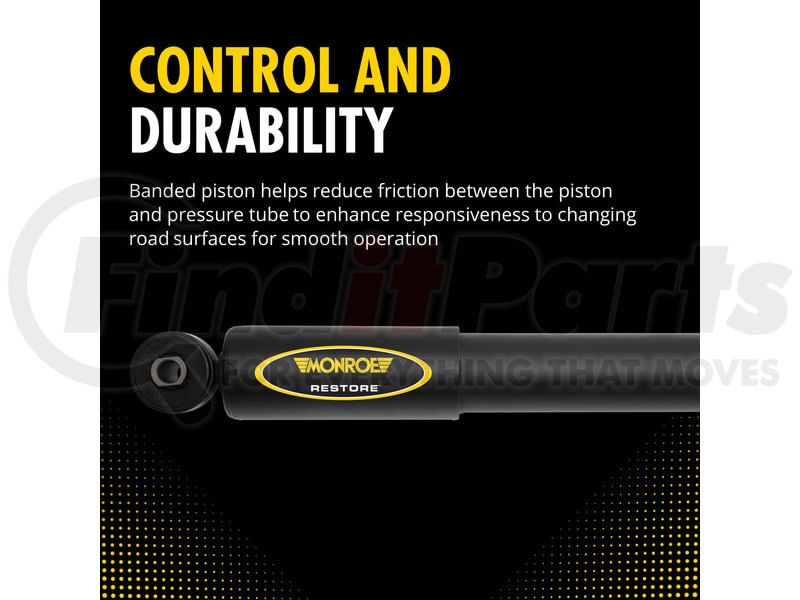

- CONTROL AND DURABILITY -- Banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces for smooth operation
- CONTROL AND DURABILITY -- Banded piston, thick-wall pressure tube and precision roll-close help reduce friction and maintain consistent damping for smooth, responsive performance in changing road surfaces

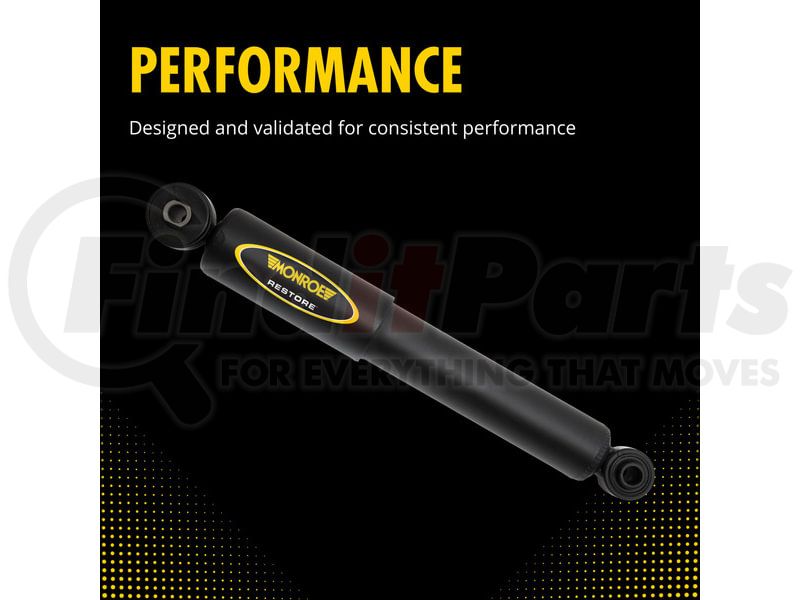

- PERFORMANCE -- Designed and validated for consistent performance

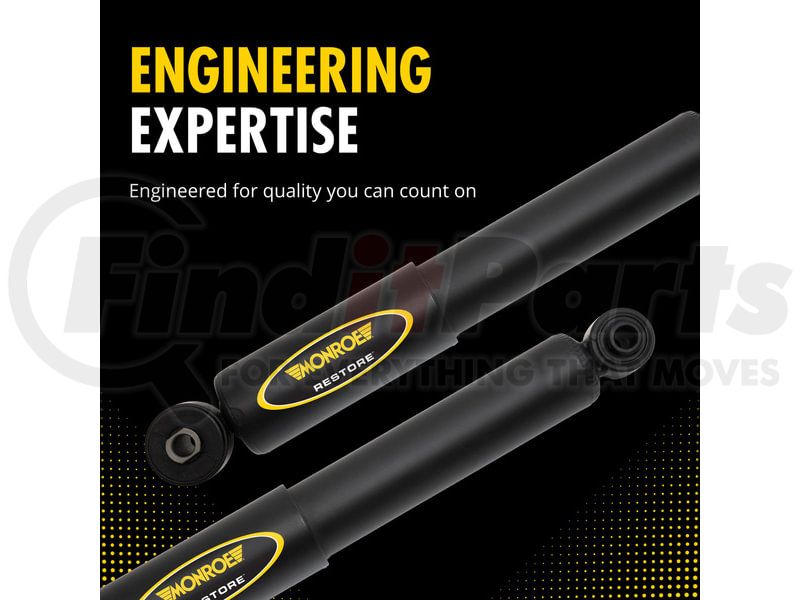

- ENGINEERING EXPERTISE -- Engineered for quality you can count on
- EXPANDED COVERAGE -- Available for domestic and import passenger cars, light trucks and SUVs
- BUILT TO LAST -- Designed and validated to deliver stable ride control

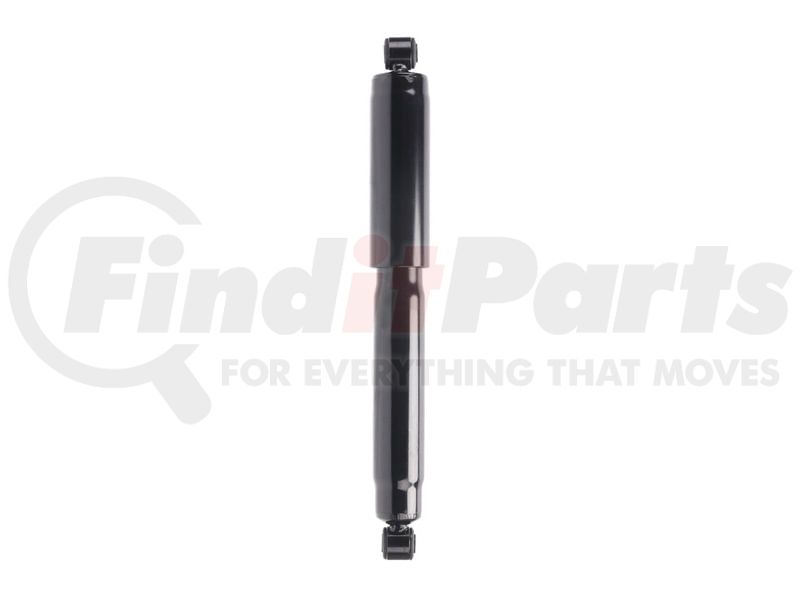

Suspension Shock Absorber
MONROE 210171 Specifications
Product Attributes
| Compressed Length | 12.56 IN |
| Compressed Length | 319 MM |
| Extended Length | 19.88 |
| Extended Length | 505 MM |
| Travel Length | 7.32 in |
| Travel Length | 185.9 MM |
| Shock Stroke | 7.32 IN |
| Shock Stroke | 185.9 MM |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Upper Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | Yes |
| Body Diameter | 2.13 IN |
| Body Diameter | 54.1 MM |
| Cylinder Outside Diameter | 2.13 IN |
| Cylinder Outside Diameter | 54.1 MM |
| Body Material | Steel |
| Cylinder Material | Steel |
| Body Color | Black |
| Cylinder Color | Black |
| Color | Black |
| Finish | Painted |
| Cylinder Finish | Painted |
| Boot Included | No |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Grade Type | Premium |
| Type | Telescopic |
| Adjustable Damping | No |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Valving Type | Progressive |
| Self-Leveling | No |
| Adjustable Ride Height | No |
| Air Adjustable | No |
| Air Ride Suspension | No |
| Bladder(s) Included | No |
| Bladder Sleeve(s) Included | No |
| Bladder Heavy Duty Crimping Rings Included | No |
| Coil Over Springs Included | No |
| Bearing Plate Included | No |
| Spring Included | No |
| Coil Spring Insulator(s) Included | No |
| Spring Isolators Included | No |
| Spring Seat Included | No |
| Remote Reservoir | No |
| Strut Mount Insulator(s) Included | No |
| New Or Remanufactured | New |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| MSDS Sheet Number | 01172 |
| UPC | 00048598274748 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 210171 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 520370 |
| Chevrolet | 22011979 |
| Duralast | TS3230102B, TS3330272B, TS3234142B, TS3231282B, TS3430953B, TS3333852B |
| FCS | 342486, 342780, 342781 |
| Gabriel | 43048, G63173, G63419, 81147, 81848, 82006, G63405, 61519, 82030, G63492, 77377, 43062, 77492, 82047, 82086, G63907, 82156, 43093, 61500, 82007 |
| KYB | 344015, KG5447, KG5434, KG5463, KG5420, KG5540, KG4034, KG4026, 344085, 565028, KG4012, 344429, 565057, KG5435, 344044, 344097, 344090, KG5473, 344426 |
| MasterPro Shocks and Struts | DG108, NS099 |
| Monroe Shocks & Struts | 34944, 59001, 31000, 37040, 32301, 59304 |
| NAPA Proformer | SH81318, SH82156 |
| NAPA Response | 94008 |
| Nissan | 5611025G27 |
| PRT | 173070 |
| Sensen | 12140273 |
MONROE 210171 Fits Vehicles
- GMC V2500 (1987)
- GMC V1500 (1987)
- GMC K25 Suburban (1975-1978)
- GMC K25 (1975-1978)
- GMC K15 Suburban (1975-1978)
- GMC K15 (1975-1978)
- GMC Jimmy (1970-1991)
- GMC G1500 (1964-1966)
- GMC V2500 Suburban (1987-1991)
- GMC V1500 Suburban (1987-1991)
- GMC K2500 Suburban (1979-1986)
- GMC K2500 (1979-1986)
- GMC K1500 Suburban (1979-1986)
- GMC K1500 (1979-1986)
- GMC P15/P1500 Van (1968-1972)
- GMC K25/K2500 Suburban (1969-1974)
- GMC K25/K2500 Pickup (1969-1974)
- GMC K15/K1500 Suburban (1969-1974)
- GMC K15/K1500 Pickup (1969-1974)
- GMC G1000 Series (1964-1966)
- GMC C25/C2500 Suburban (1968-1972)
- GMC C25/C2500 Pickup (1967-1972)
- GMC C15/C1500 Suburban (1968-1972)
- GMC C15/C1500 Pickup (1967-1972)
- Chevrolet C20 Panel (1967)
- Chevrolet C10 Panel (1967)
- Chevrolet C35 (1983-1987)
- Chevrolet V2500 Suburban (1989-1991)
- Chevrolet V20 Suburban (1987-1988)
- Chevrolet V20 (1987)
- Chevrolet V1500 Suburban (1989-1991)
- Chevrolet V10 Suburban (1987-1988)
- Chevrolet V10 (1987)
- Chevrolet K20 Suburban (1969-1986)
- Chevrolet K20 (1975-1986)
- Chevrolet K10 Suburban (1969-1986)
- Chevrolet K10 (1975-1986)
- Chevrolet C20 Suburban (1967-1972)
- Chevrolet C10 Suburban (1967-1972)
- Chevrolet K5 Blazer (1975-1986)
- Chevrolet Blazer (1969-1974, 1987-1991)
- Chevrolet P10 Van (1967-1972)
- Chevrolet K20 Pickup (1969-1974)
- Chevrolet K10 Pickup (1969-1974)
- Chevrolet G10 Van (1964-1966)
- Chevrolet C20 Pickup (1967-1972)
- Chevrolet C10 Pickup (1967-1972)
MONROE 210171 Customer Reviews
No reviews yet
Be the first to review this product!
MONROE 210171 Manufacturer Information
Monroe products are built for the road ahead. Since its founding in 1916, Monroe® has been known for its world-class solutions that are precision-engineered and meticulously tested with the specific vehicle's ride and handling profile in mind. As the leading supplier of Original Equipment ride control products to global automotive manufacturers, Monroe helped establish the benchmarks of handling and ride excellence in every stage of a vehicle's life. Whether you're upgrading your truck, converting its suspension, or restoring its original state, Monroe has got you covered. It offers the best-in-class shocks, strut assemblies, steering stabilizers, conversion kits, lift support, and many other suspension components that will help enhance your safety and driving experience.
