(888) 312-8812 Login SignupRAYBESTOS 96375 Raybestos Specialty - Street Performance Brake Rotor
Tap to view 5 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 96375 Part Description
Manufacturer
Product Description

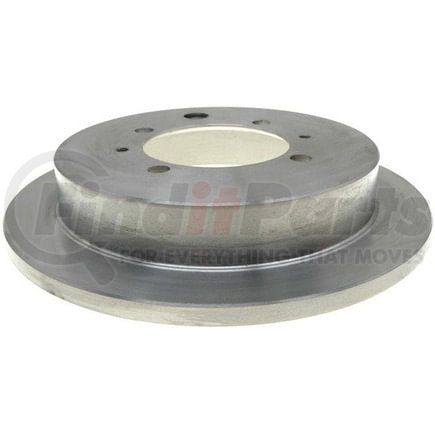

Raybestos Specialty - Street Performance Brake Rotor
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
Raybestos Specialty - Street Performance Brake Rotor
RAYBESTOS 96375 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.546 IN |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.413 IN |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Diameter | 0.495 IN |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.472 IN |
| Outside Diameter | 10.33 IN |
| Overall Height | 1.81 IN |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 90.05 MM |
| Discard Thickness | 10.5 MM |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 12.55 MM |
| Nominal Thickness | 12 MM |
| Outside Diameter | 262.4 MM |
| Overall Height | 45.95 MM |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999610966 |
RAYBESTOS 96375 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | 141511, YH141511, YH141511C |
| American Remanufactured | 789-16032, 89-16032 |
| AutoZone | 31145, 31145DG |
| Autospecialty | JBR589, JBR589E |
| Beck/Arnley | 080-2438, 083-2438 |
| Bendix | 141511 |
| Brake Headquarters | BR18398 |
| BrakeBest | 96375, 96375R, 96375RGS, BD125194 |
| Brembo | 08.9066.85, 25635 |
| CENTRIC | 121.51002 |
| California Drum & Rotor | 125194 |
| Casting Numbers | 210742-C, 325396 |
| Centric Parts | 120.51002, 121.51002 |
| Century | 9679 |
| Delphi | RB172 |
| Dura Corp | BR31145 |
| DuraGo | BR31145 |
| EIS Brakes | D17556 |
| Eurorotor | HY381 |
| GREN | 90701 |
| Hyundai | 5841133300, 5841133310 |
| Midas | BR1818 |
| Mighty Distributing System | 31145 |
| Monroe Brakes | BD125194 |
| Newtek Automotive USA | 31145 |
| Qualis | 31145 |
| Qualitee International | 64-82-040 |
| Quality Brand | 31145, Q579 |
| Standard Rotors and Drums | 31145 |
| TruStar | 482040, R82040 |
| UAP | 31145 |
| Universal | 124430 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X50941 |
| WAGNER | BD125194 |
| Wagner Brake | BD125194 |
| Winhere | YH1143 |
RAYBESTOS 96375 Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 96375 Manufacturer Information
For ultimate braking power, trust only the best in brakes—Raybestos®. This industry giant has been revolutionizing people’s perception of brakes and braking performance for over 100 years now. Raybestos’ unwavering commitment to providing the automotive aftermarket with top-caliber brake parts makes it the most sought-after brand of brake solutions for commercial vehicles, motorhomes, buses, performance vehicles, and other automotive applications. With its cutting-edge technology and outstanding research and product development capabilities, this brand produces a comprehensive line of brake products that adhere to OE specifications and meet stringent industry standards. From pads to rotors, calipers to cylinders, Raybestos ensures dependable brake parts that deliver the best-in-class performance and unparalleled driving safety that customers expect from an industry leader.
