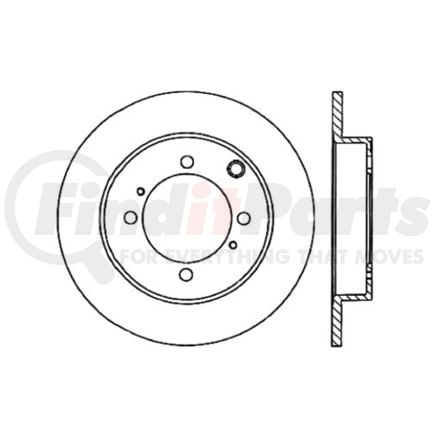

(888) 312-8812 Login SignupCENTRIC 120.51002 Premium Brake Rotor
Tap to view 1 more
$80.58
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.51002 Part Description
Manufacturer
Features & Benefits
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.51002 Specifications
Product Attributes
| Misc Holes [cntrc] | 3 |
| Weight [cntrc] Lbs | 9.500 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 4.320 |
| Disc Mounting [cntrc] | Floating / DIH |
| Max Pb Drum Dia [cntrc] In | 7.283 |
| Product Grade [cntrc] | Premium |
| Max Pb Drum Dia [cntrc] Mm | 185.000 |
| Stud/Lug Hole Diameter | 0.492 IN |
| Stud/Lug Hole Diameter | 12.500 MM |
| Stud/Lug Hole Quantity | 4 |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Center Hole Diameter | 90.000 MM |
| Center Hole Diameter | 3.543 IN |
| Bearings Included | No |
| Nominal Drum Diameter | 7.244 IN |
| Nominal Drum Diameter | 184.000 MM |
| Solid Or Vented Type Rotor | Solid |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Outside Diameter | 10.315 IN |
| Outside Diameter | 262.000 MM |
| Overall Height | 46.600 MM |
| Overall Height | 1.835 IN |
| Hat Finish | Painted |
| Nominal Thickness | 12.000 MM |
| Nominal Thickness | 0.472 IN |
| Discard Thickness | 10.500 MM |
| Discard Thickness | 0.413 IN |
CENTRIC 120.51002 Cross References
CENTRIC 120.51002 Fits Vehicles
- Hyundai Sonata (1991-1993)
