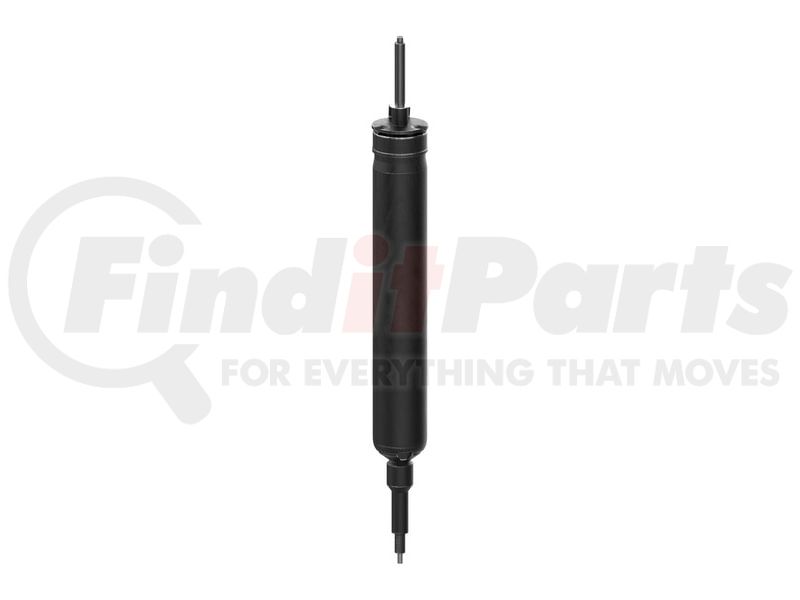

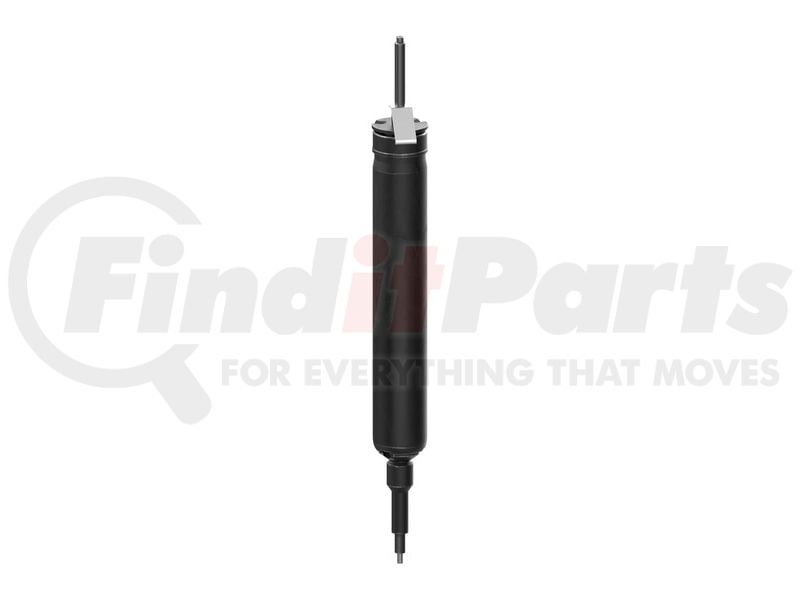

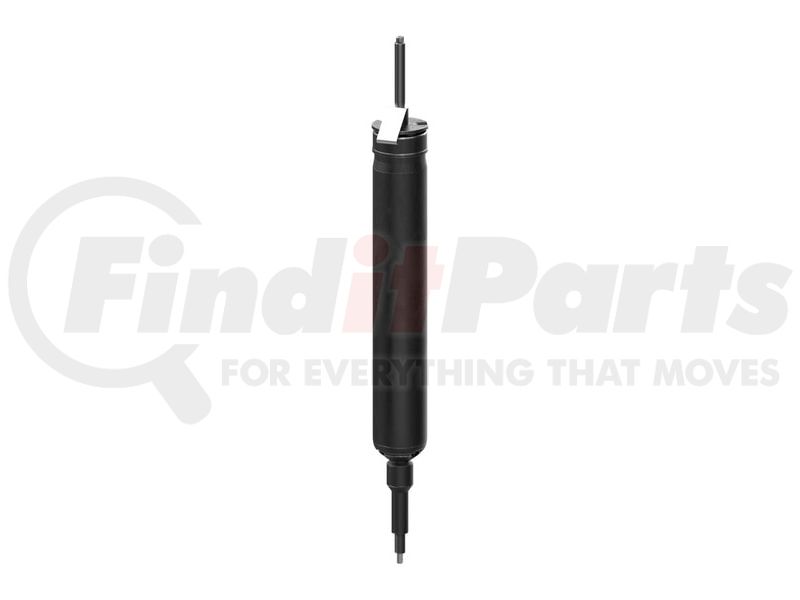

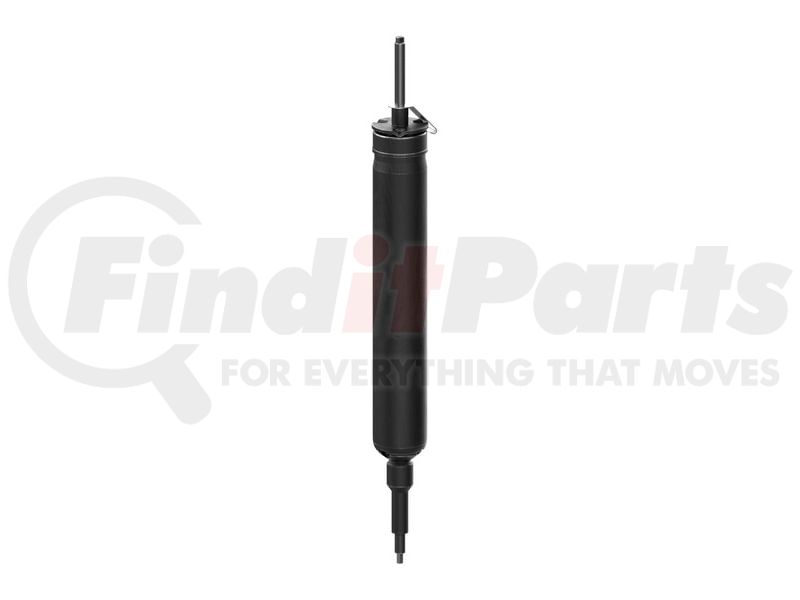

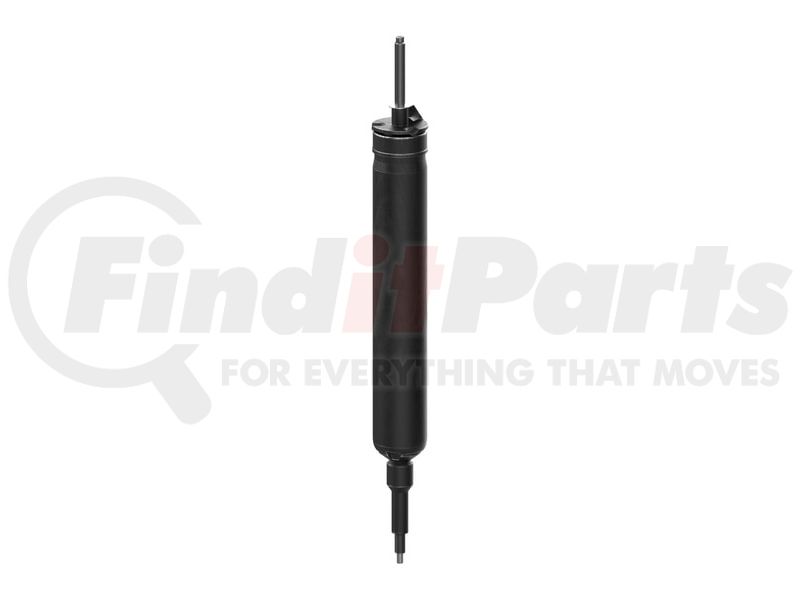

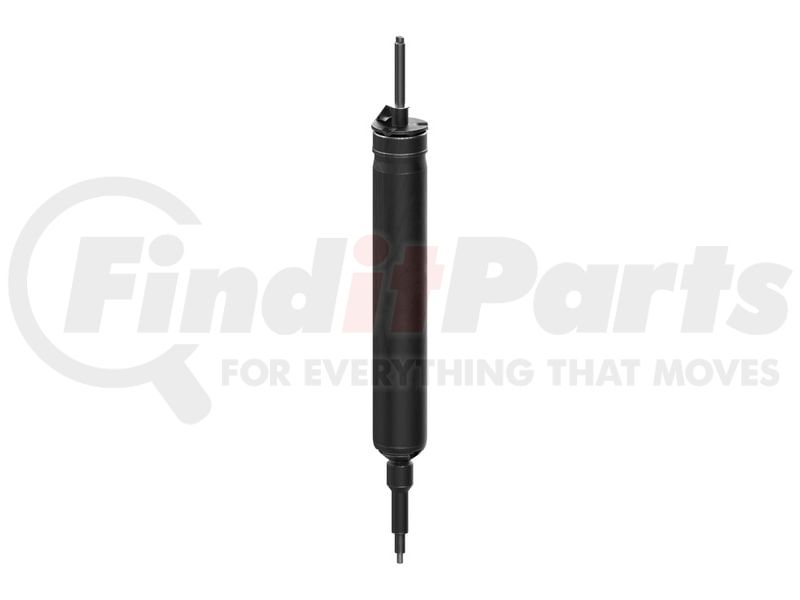

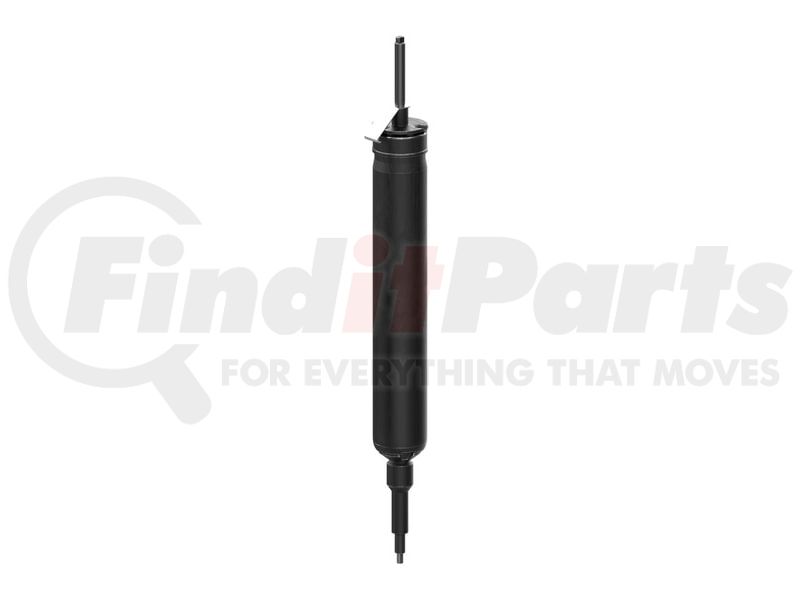

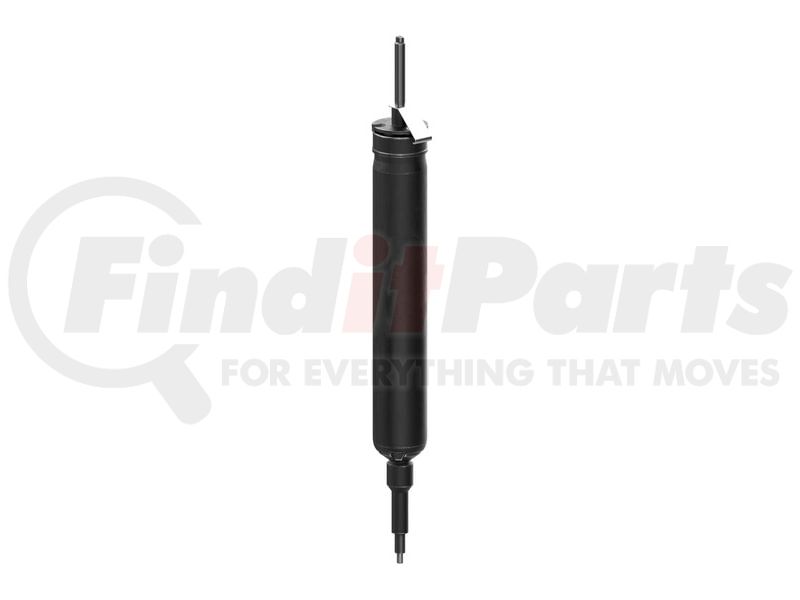

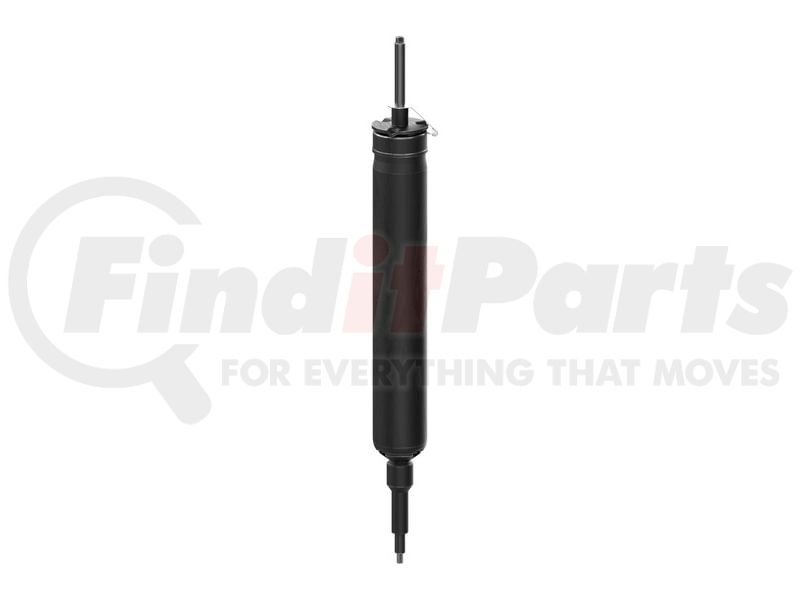

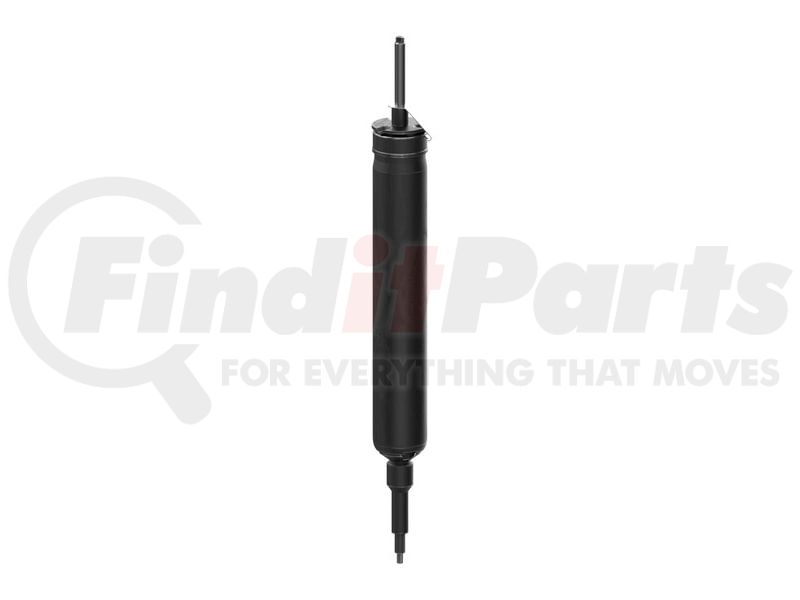

(888) 312-8812 Login SignupMONROE 5616 OESpectrum Rear Suspension Shock Absorber
Tap to view 11 more
MSRP: $145.70
$8249
Save $63.21
Limited availability at this price!
In Stock
Get it by Friday, Jul 24
MONROE 5616 Part Description
Manufacturer
Product Description
OESpectrum Rear Suspension Shock Absorber
Features & Benefits
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
MONROE 5616 Specifications
Product Attributes
| Compressed Length | 16.02 IN |
| Compressed Length | 406.9 MM |
| Extended Length | 22 in |
| Extended Length | 558.8 MM |
| Travel Length | 5.98 in |
| Travel Length | 151.9 MM |
| Lower Mount Type | Stem Mount - Stem Length X M10 Thread Pitch |
| Lower Mount Type | Stem |
| Lower Mount Code | S1 |
| Upper Mount Type | Stem Mount - Stem Length X M10 Thread Pitch |
| Upper Mount Code | S1 |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Base of Stem |
| Gas Charged | Yes |
| Mounting Hardware Included | Yes |
| Parts Pack(s) | BE17110813 |
| Body Color | Black |
| Cylinder Color | Black |
| Color | Black |
| Cylinder Finish | Painted |
| Dust Shield Included | No |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | BE |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598035585 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 5616 Cross References
| Brand | Part Number |
|---|---|
| 5616ST, GAMZ2V553BCRM1 | |
| BMW | 31306771177, 31306771178, 31306771179, 31306771180, 31316782855, 31316782856, 31316782857, 31316782858, 31316784973, 31316784974, 31316784975, 31316784976, 31316785589, 31316785590, 31316785591, 31316785592, 31316786001, 31316786002, 31316786003, 31316786004, 31316786013, 31316786014, 31316786015, 31316786016, 31316786021, 31316786022, 31316786023, 31316786024, 31316786029, 31316786030, 31316786031, 31316786032, 31316791551, 31316791579, 31316791647, 31316791663, 31316796155, 31316796156, 31316796159, 31316796160, 33526771725, 33526771729, 33526772926, 33526772927, 33526780077, 33526780081, 33526780195, 33526780199, 33526781200, 33526782859, 33526782860, 33526783997, 33526784977, 33526784978, 33526791568, 33526791588, 33526796157, 33526796161, 37116793865, 37116793866, 37116793867, 37116793868, 37126852927 |
| Duralast | TS3231092B |
| GABRIEL | 70045 |
| KYB | 5550000, 349041, 3448017 |
| MasterPro Shocks and Struts | BW100 |
| Monroe Shocks & Struts | 210060 |
| NAPA Shocks | 5616, NS5616 |
| OEM | 33526781200, 33526780195, 33526772926, 33526796157, 33526780077, 33526783997, 33526784977, 33526782859 |
| SENSEN | 3213-0383 |
| Sachs | 311409 |
| Sensen | 32130383 |
| Top Quality | 785616 |
| UNITY AUTOMOTIVE | 259710, 2-259710-001, 4-11373-259710-001 |
| VAICO | V20-1414, V20-0963, V20-0964 |
MONROE 5616 Fits Vehicles
- BMW 135is (2013)
- BMW 135i (2008-2013)
- BMW 128i (2008-2013)
- BMW 335i (2007-2015)
- BMW 328i (2007-2013)
- BMW 330i (2006-2007)
- BMW 325i (2006-2013)
